PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14220001001 - E14220999999) Main Pipe -- Lower, Control Handle, Throttle Cable, Shoulder Strap Parts Diagram

Pole Saw (Type 1E)

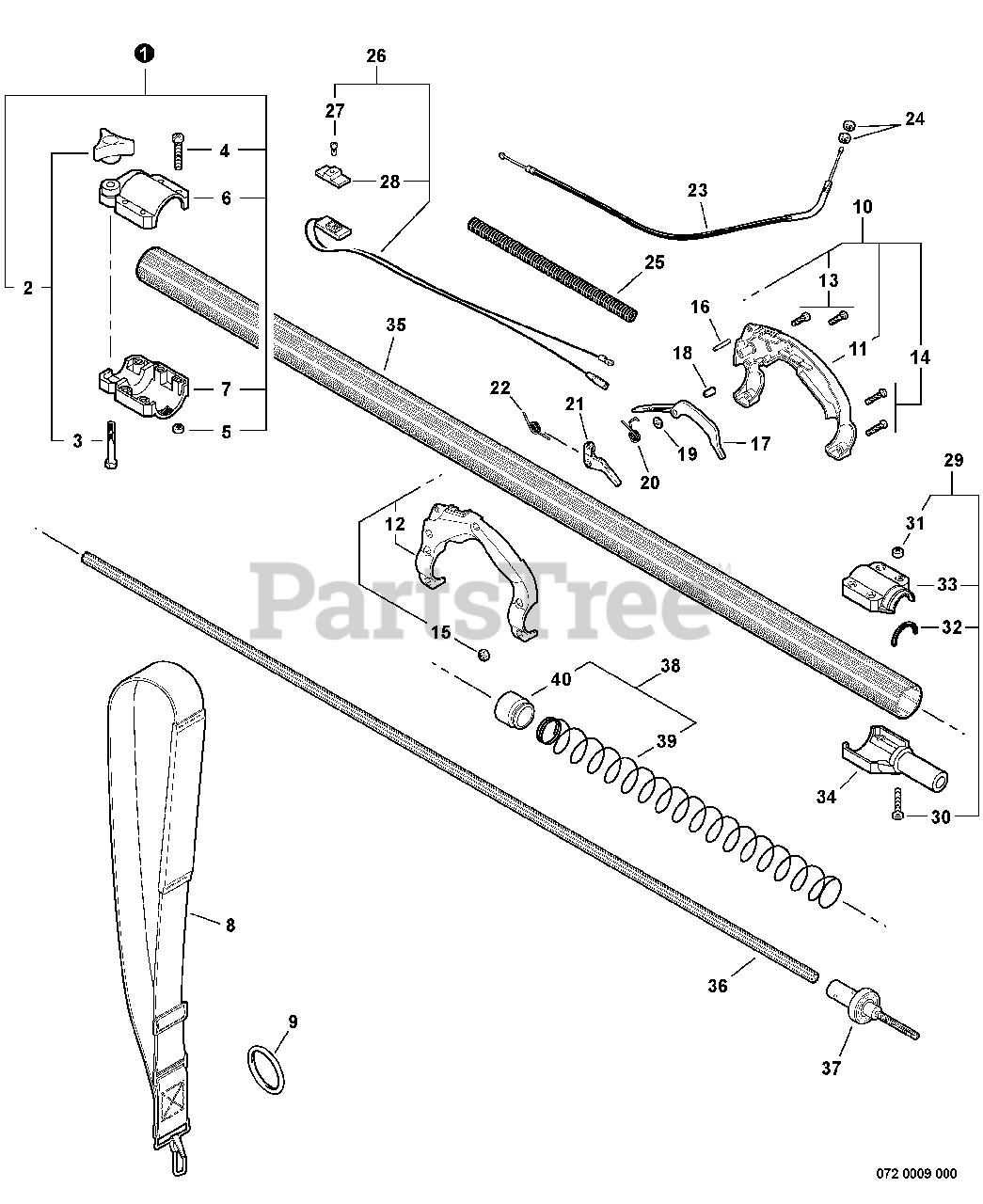

Main Pipe -- Lower, Control Handle, Throttle Cable, Shoulder Strap Parts Diagram

  • Title

1

Echo 61029522360

CLAMP ASSY

Note: Includes ITEMS 2-7

$42.99

$

Usually ships in 2-4 days

0

2

Echo 13040622360

THUMBSCREW

Note: Includes ITEM 3

$6.99

$

In Stock, Qty 10

0

3

Echo V204000090

BOLT 6

$0.99

$

In Stock, Qty 13

0

4

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

5

Echo 90003150100

NUT, LOCK 10-24 UNC

$0.99

$

In Stock, Qty 8

0

6

Echo 61028222460

COLLAR, UPPER

$19.99

$

In Stock, only 2 left!

0

7

Echo 61028222360

COLLAR, LOWER

$33.99

$

In Stock, only 2 left!

0

8

Echo 30100022060

STRAP ASSY, SHOULDER

$35.99

$

In Stock, only 2 left!

0

9

Echo 30101652730

RING, HARNESS Ø32

$1.99

$

Usually ships in 2-4 days

0

10

Echo 35110022363

HANDLE SET, REAR

Note: Includes ITEMS 11-15

$56.99

$

In Stock, only 2 left!

0

11

Echo C410000091

HANDLE, LEFT REAR

$

$

Not available

12

Echo 35111022562

HANDLE, RIGHT REAR

$

$

Not available

13

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

14

Echo 90005300500

SCREW, TORX 10-24×1.5

$0.99

$

In Stock, Qty 14

0

15

Echo 90003150100

NUT, LOCK 10-24 UNC

$0.99

$

In Stock, Qty 8

0

16

Echo 88996022660

PIN, LOCATING 0.17 OD×0.75 L

$0.99

$

In Stock, Qty 19

0

17

Echo 17809022560

LOCKOUT, THROTTLE

$5.99

$

In Stock, Qty 5

0

18

Echo 61085022560

COLLAR 5.08×14.5

$

$

Not available

19

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

20

Echo 17804322562

SPRING, TORSION Ø0.39 I.D.

$1.99

$

In Stock, Qty 19

0

21

Echo 17801022560

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 7

0

22

Echo 17804322360

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

23

Echo 17800151030

CABLE, THROTTLE

$20.99

$

In Stock, only 2 left!

0

24

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

25

Echo 17801622360

TUBE, FLEXIBLE

$2.49

$

Usually ships in 2-4 days

0

26

Echo P021017180

SWITCH, ON-OFF

Note: Includes ITEMS 27-28

$7.99

$

Usually ships in 2-4 days

0

27

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

28

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

29

Echo P021003540

CAP ASSY, MAIN PIPE

Note: Includes ITEMS 30-33

$14.99

$

In Stock, only 2 left!

0

30

Echo 90005300500

SCREW, TORX 10-24×1.5

$0.99

$

In Stock, Qty 14

0

31

Echo 90003150100

NUT, LOCK 10-24 UNC

$0.99

$

In Stock, Qty 8

0

32

Echo 10491022460

CUSHION

$2.49

$

In Stock, only 2 left!

0

33

Echo C525000000

CAP, MAIN PIPE

$12.99

$

In Stock, only 2 left!

0

34

Echo C510000120

COUPLING, MAIN PIPE 113.6 L

$30.99

$

In Stock, only 2 left!

0

35

Echo 61022222360

PIPE, MAIN 1.5 ID×60" L

$140.99

$

Usually ships in 2-4 days

0

36

Echo 60101122061

DRIVESHAFT

$

$

Currently unavailable

37

Echo 61001122061

SHAFT, LOWER DRIVE

$55.99

$

Usually ships in 2-4 days

0

38

Echo 43330722460

BUSHING ASSY, FLOATING

Note: Includes ITEMS 39-40

$20.99

$

In Stock, only 2 left!

0

39

Echo 10494022560

SPRING, COMPRESSION

$12.99

$

Usually ships in 2-4 days

0

40

Echo 43334522660

BUSHING, FLOATING

$5.99

$

Usually ships in 2-4 days

0
