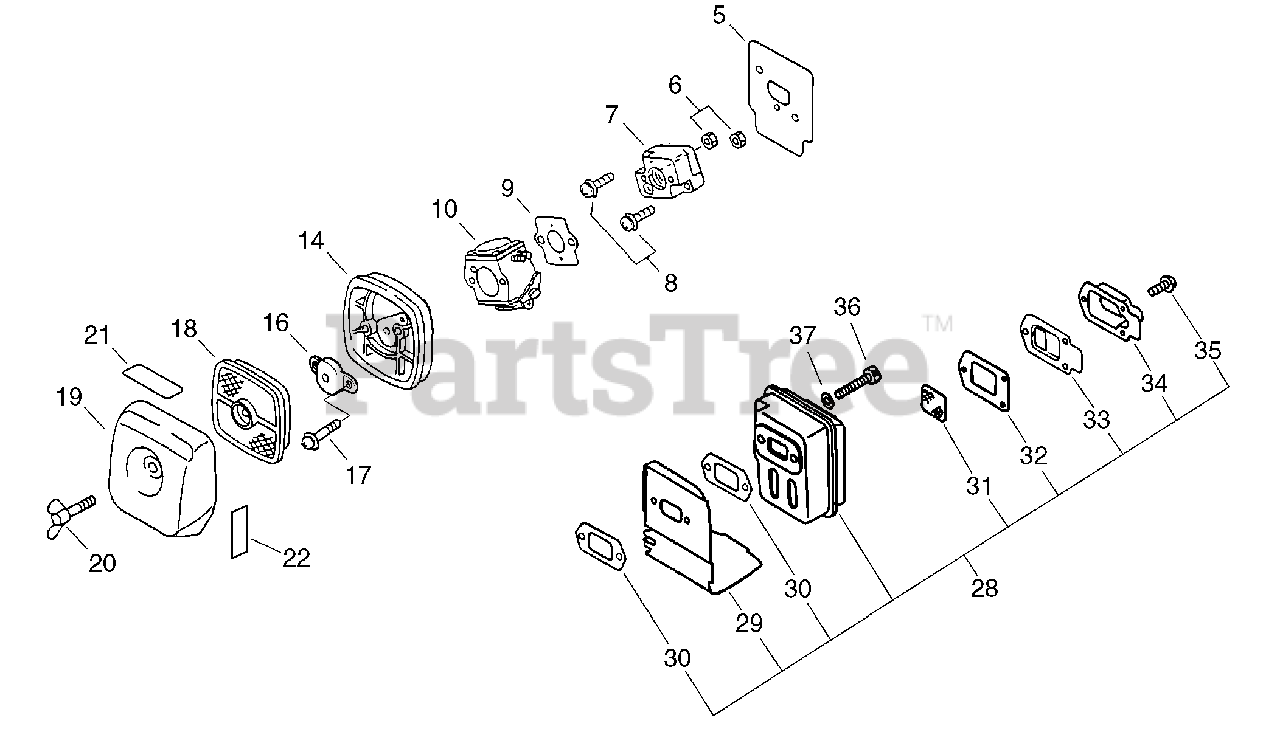

PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14536001001 - E14536999999) Air Filter, Intake, Exhaust Parts Diagram

Pole Saw (Type 1E)

Air Filter, Intake, Exhaust Parts Diagram

  • Title

5

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, Qty 15

0

8

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 18

0

9

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, Qty 11

0

10

Echo 12300052133

CARBURETOR WT-424C

$94.99

$

In Stock, only 2 left!

0

14

Echo 13030706761

AIR FILTER CASE ASSY
(Superseded to 13030706960)

$19.99

$

In Stock, Qty 6

0

16

Echo 12901106361

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

17

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 15

0

18

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.49

$

In Stock, Qty 20+

0

19

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

20

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

21

Echo 89033452730

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

22

Echo 89033252730

LABEL - CHOKE

$1.49

$

In Stock, Qty 17

0

28

Echo 14580052633

MUFFLER ASSY

$54.99

$

Usually ships in 2-4 days

0

29

Echo A320000251

SHIELD, EXHAUST

$4.99

$

In Stock, Qty 20+

0

30

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 20+

0

31

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

32

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

33

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 9

0

34

Echo 14581852130

GUIDE, EXHAUST - OUTER

$7.49

$

Usually ships in 2-4 days

0

35

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

36

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 20+

0

37

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0
