PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14536001001 - E14536999999) Cylinder, Piston, Crankcase Parts Diagram

Pole Saw (Type 1E)

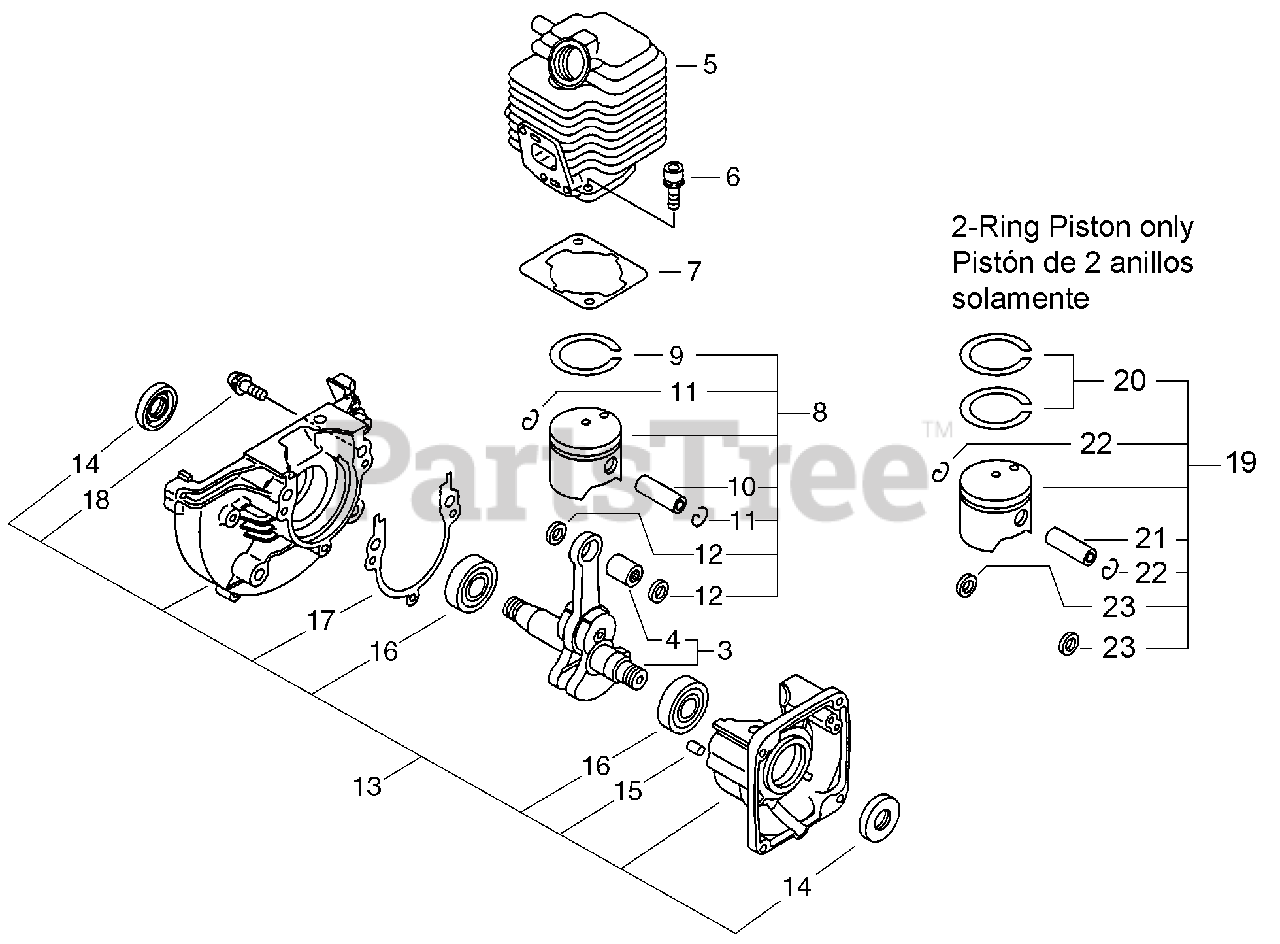

Cylinder, Piston, Crankcase Parts Diagram

  • Title

3

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

$172.99

$

Usually ships in 2-4 days

0

4

Echo V553000060

BEARING, NEEDLE - 8

$11.99

$

Usually ships in 2-4 days

0

5

Echo 10101108961

CYLINDER

$261.99

$

Usually ships in 2-4 days

0

6

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 16

0

7

Echo 10101044332

GASKET, CYLINDER

$4.49

$

In Stock, Qty 12

0

8

Echo 10000052130

PISTON KIT

$78.99

$

In Stock, only 1 left!

0

9

Echo 10001121230

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

10

Echo 10001311520

PIN, PISTON

$7.99

$

In Stock, only 2 left!

0

11

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

12

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 4 left!

0

13

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

$156.99

$

Usually ships in 2-4 days

0

14

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 13

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

16

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 12

0

17

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

18

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

19

Echo 10000009563

PISTON KIT
(Superseded to 10000052130)

$78.99

$

In Stock, only 1 left!

0

20

Echo 10001109560

RING, PISTON

Note: 2-RING PISTON ONLY / PISTÓN DE 2 ANILLOS SOLAMENTE

$8.99

$

In Stock, only 2 left!

0

21

Echo 10001311520

PIN, PISTON

Note: 2-RING PISTON ONLY / PISTÓN DE 2 ANILLOS SOLAMENTE

$7.99

$

In Stock, only 2 left!

0

22

Echo 10001504630

RING, RETAINING

Note: 2-RING PISTON ONLY / PISTÓN DE 2 ANILLOS SOLAMENTE

$0.99

$

In Stock, Qty 20+

0

23

Echo 10001411520

SPACER, PISTON

Note: 2-RING PISTON ONLY / PISTÓN DE 2 ANILLOS SOLAMENTE

$3.99

$

In Stock, only 4 left!

0
