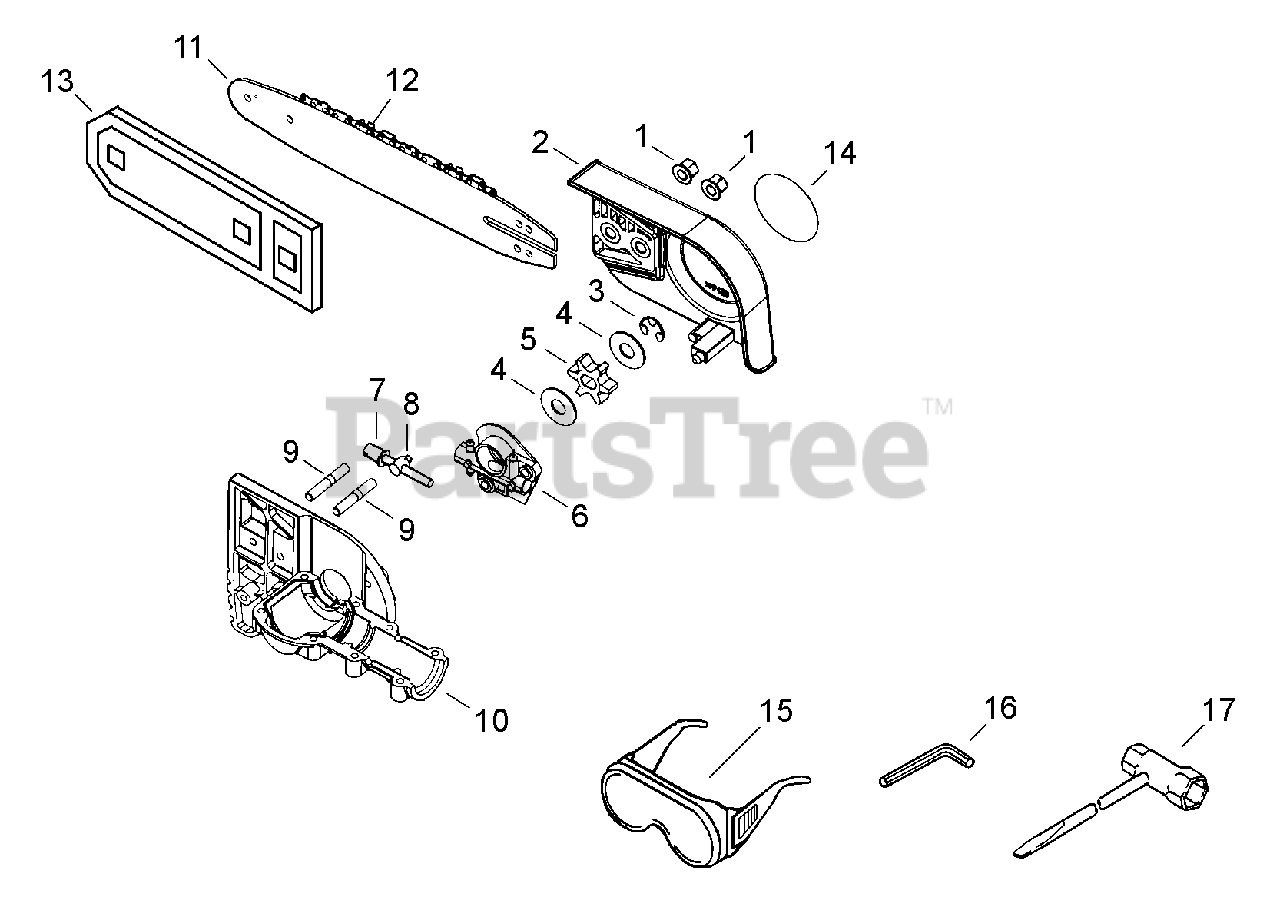

PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14536001001 - E14536999999) Sprocket Guard, Guide Bar, Tools Parts Diagram

Pole Saw (Type 1E)

Sprocket Guard, Guide Bar, Tools Parts Diagram

  • Title

1

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

2

Echo C300000001

GUARD, SPROCKET

$20.99

$

In Stock, only 2 left!

0

3

Echo V583000010

RING, RETAINING Ø0.300

$0.99

$

In Stock, Qty 20+

0

4

Echo 175014-39131

WASHER 10.2×24.5×1.2
(Superseded to 17501439131)

$2.99

$

In Stock, Qty 20+

0

5

Echo C580000070

SPROCKET, DRIVE

$5.99

$

In Stock, Qty 11

0

6

Echo 43700239130

AUTO-OILER ASSY

$83.99

$

In Stock, only 2 left!

0

7

Echo 43301639131

BOLT 5

$5.49

$

In Stock, Qty 10

0

8

Echo 43301403931

TENSIONER, CHAIN

$5.99

$

In Stock, Qty 5

0

9

Echo V224000000

BOLT, STUD 6

$2.99

$

In Stock, Qty 9

0

10

Echo C051000120

CASE ASSY, LOWER GEAR
(Superseded to P021049720)

$98.99

$

Usually ships in 2-4 days

0

11

Echo 12G4CD3744

GUIDE BAR, 12"

$43.99

$

Usually ships in 2-4 days

0

12

Echo 90SG44CQ

SAW CHAIN 12" - MICRO-LITE

$24.99

$

In Stock, Qty 13

0

13

Echo X490000050

SCABBARD 12"
(Superseded to X490001040)

$5.49

$

In Stock, only 3 left!

0

14

Echo X502000330

LABEL, RECOIL STARTER

$0.99

$

In Stock, Qty 20+

0

15

Echo X690000050

GLASSES, SAFETY
(Superseded to X690000080)

$5.49

$

In Stock, Qty 16

0

16

Echo A605000100

WRENCH, ALLEN 4 MM

$

$

Currently unavailable

17

Echo 89541039131

T-WRENCH 10×19 MM
(Superseded to 89541039132)

$4.49

$

In Stock, only 4 left!

0
