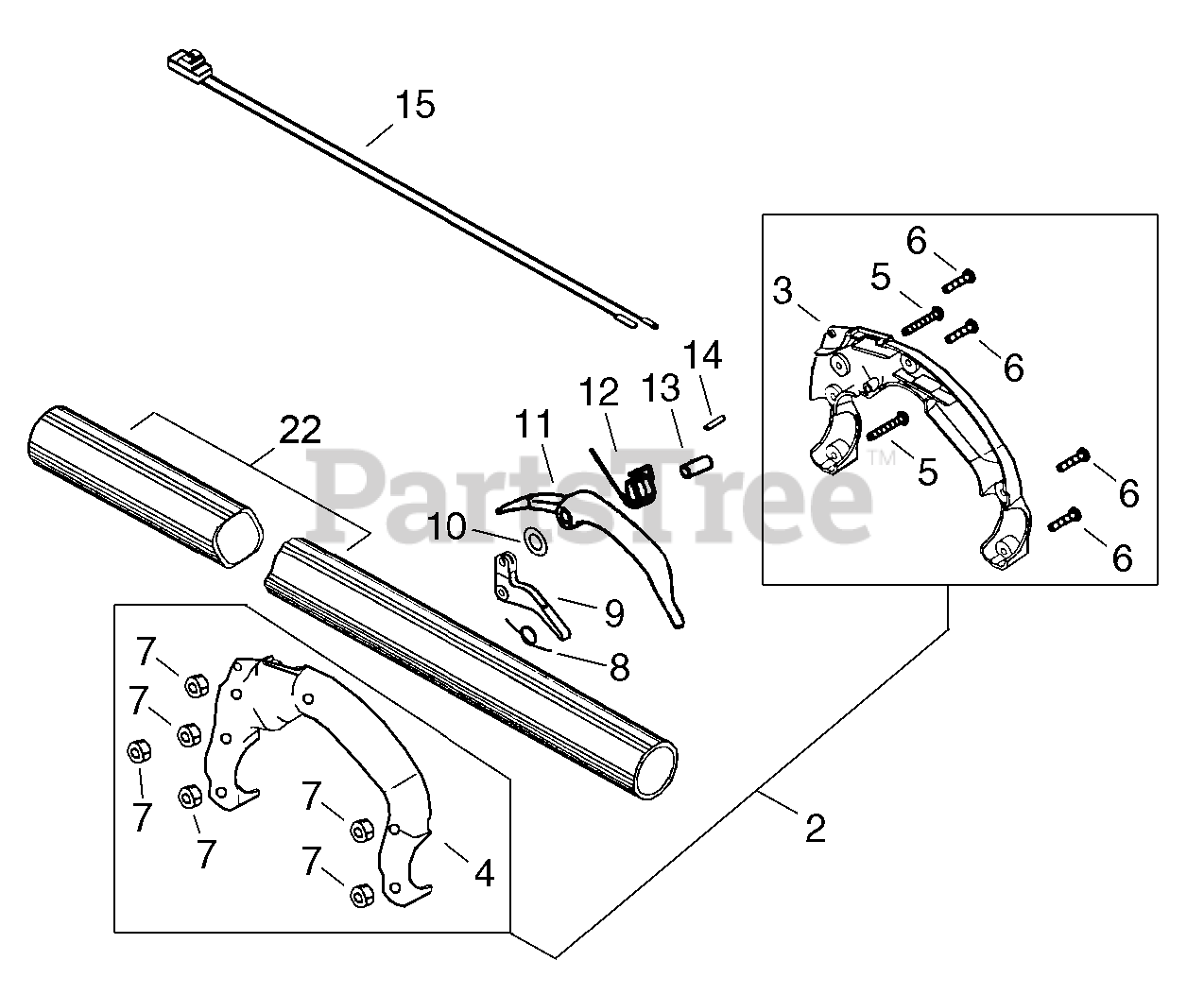

PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14536001001 - E14536999999) Throttle Control, Handle Parts Diagram

Pole Saw (Type 1E)

Throttle Control, Handle Parts Diagram

  • Title

2

Echo 35110022363

HANDLE SET, REAR

$56.99

$

In Stock, only 2 left!

0

3

Echo 35111022562

HANDLE, RIGHT REAR

$

$

Not available

4

Echo C410000091

HANDLE, LEFT REAR

$

$

Not available

5

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

6

Echo 90005300500

SCREW, TORX 10-24×1.5

$0.99

$

In Stock, Qty 14

0

7

Echo 90003150100

NUT, LOCK 10-24 UNC

$0.99

$

In Stock, Qty 8

0

8

Echo 17804322360

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

9

Echo 17801022560

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 7

0

10

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 17809022560

LOCKOUT, THROTTLE

$5.99

$

In Stock, Qty 5

0

12

Echo 17804322562

SPRING, TORSION Ø0.39 I.D.

$1.99

$

In Stock, Qty 19

0

13

Echo 61085022560

COLLAR 5.08×14.5

$

$

Not available

14

Echo 88996022660

PIN, LOCATING 0.17 OD×0.75 L

$0.99

$

In Stock, Qty 19

0

15

Echo 16340155631

SWITCH ASSY, ON-OFF

$10.99

$

In Stock, only 2 left!

0

22

Echo 61022222360

PIPE, MAIN 1.5 ID×60" L

$140.99

$

Usually ships in 2-4 days

0
