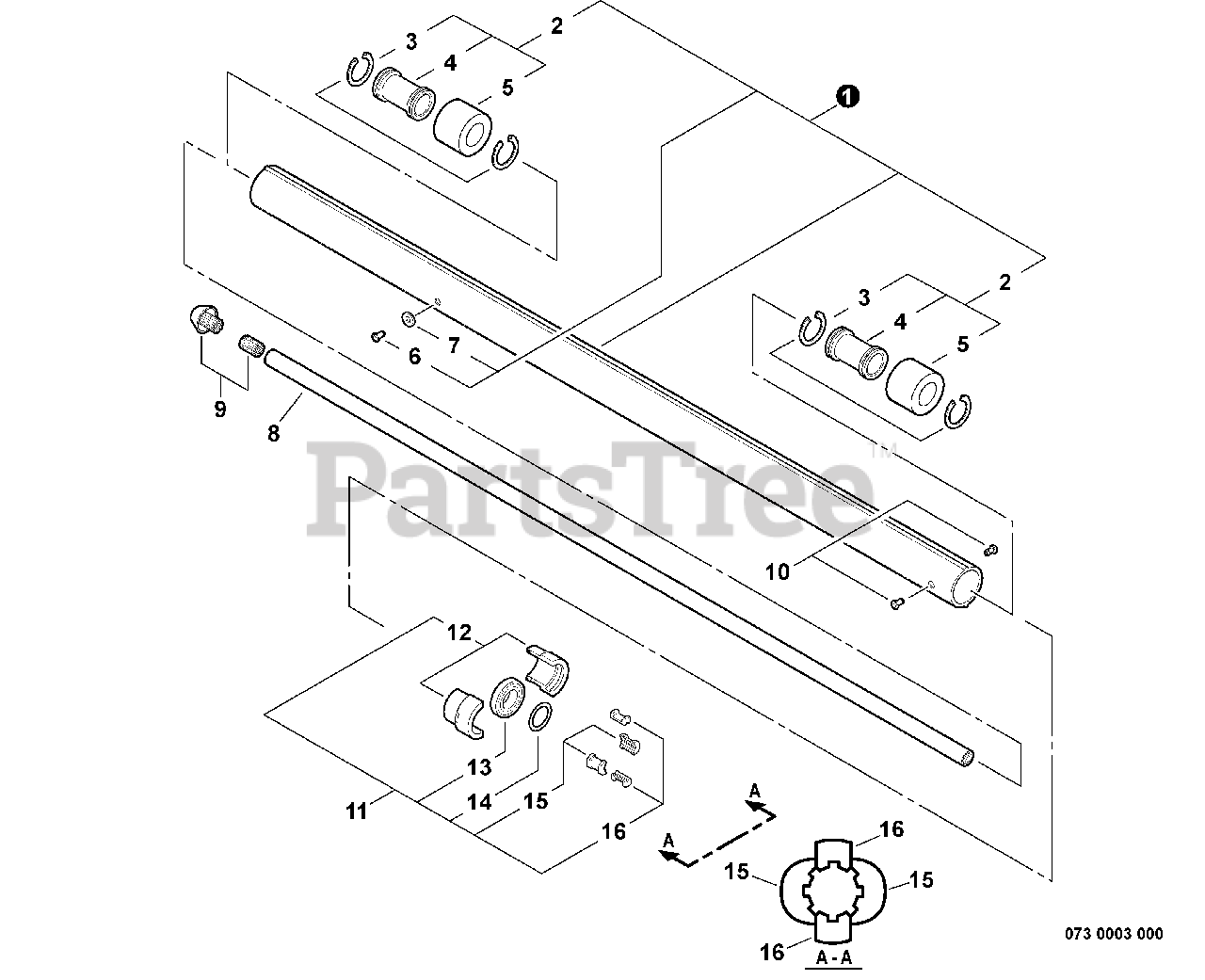

PPT-260 - Echo Pole Saw (SN: 04001001 - 04999999) Main Pipe -- Upper Parts Diagram

Pole Saw

Main Pipe -- Upper Parts Diagram

  • Title

1

Echo 61029923960

PIPE, MAIN - BLACK

$148.99

$

In Stock, only 2 left!

0

2

Echo 43330822360

DRIVESHAFT GUIDE ASSY
(Superseded to C316000010)

$12.99

$

In Stock, only 4 left!

0

3

Echo 61033522460

RING, RETAINING

$1.99

$

In Stock, Qty 5

0

4

Echo 43334522361

GUIDE, SHAFT
(Superseded to C316000010)

$12.99

$

In Stock, only 4 left!

0

5

Echo 10429322360

PAD, FOAM

$1.99

$

In Stock, only 2 left!

0

6

Echo 89001122460

RIVET

$1.49

$

In Stock, only 3 left!

0

7

Echo 40011122360

WASHER, FLAT 5

$0.99

$

In Stock, Qty 7

0

8

Echo 61001122460

SHAFT, UPPER DRIVE L= 79.75

$63.99

$

Usually ships in 2-4 days

0

9

Echo 61029822360

ADAPTER, UPPER DRIVE SHAFT

$3.99

$

Usually ships in 2-4 days

0

10

Echo 89001122360

RIVET

$0.99

$

In Stock, Qty 17

0

11

Echo 61010522360

HOLDER ASSY, BEARING

Note: Includes ITEMS 12-16

$

$

Not available

12

Echo 61011122360

HOLDER, BEARING

$8.99

$

Usually ships in 2-4 days

0

13

Echo 90080206002

BEARING, BALL 6002 DDU

$19.99

$

In Stock, only 2 left!

0

14

Echo 17812922360

WASHER, WAVE

$0.99

$

In Stock, Qty 9

0

15

Echo 43334522560

GUIDE, SHAFT - LARGE

$1.99

$

In Stock, Qty 15

0

16

Echo 43334522460

GUIDE, SHAFT - SMALL

$1.99

$

In Stock, Qty 20+

0
