PPT-2620 - Echo Pole Saw (SN: U43415001001 - U43415999999) Gear Case Parts Diagram

Pole Saw

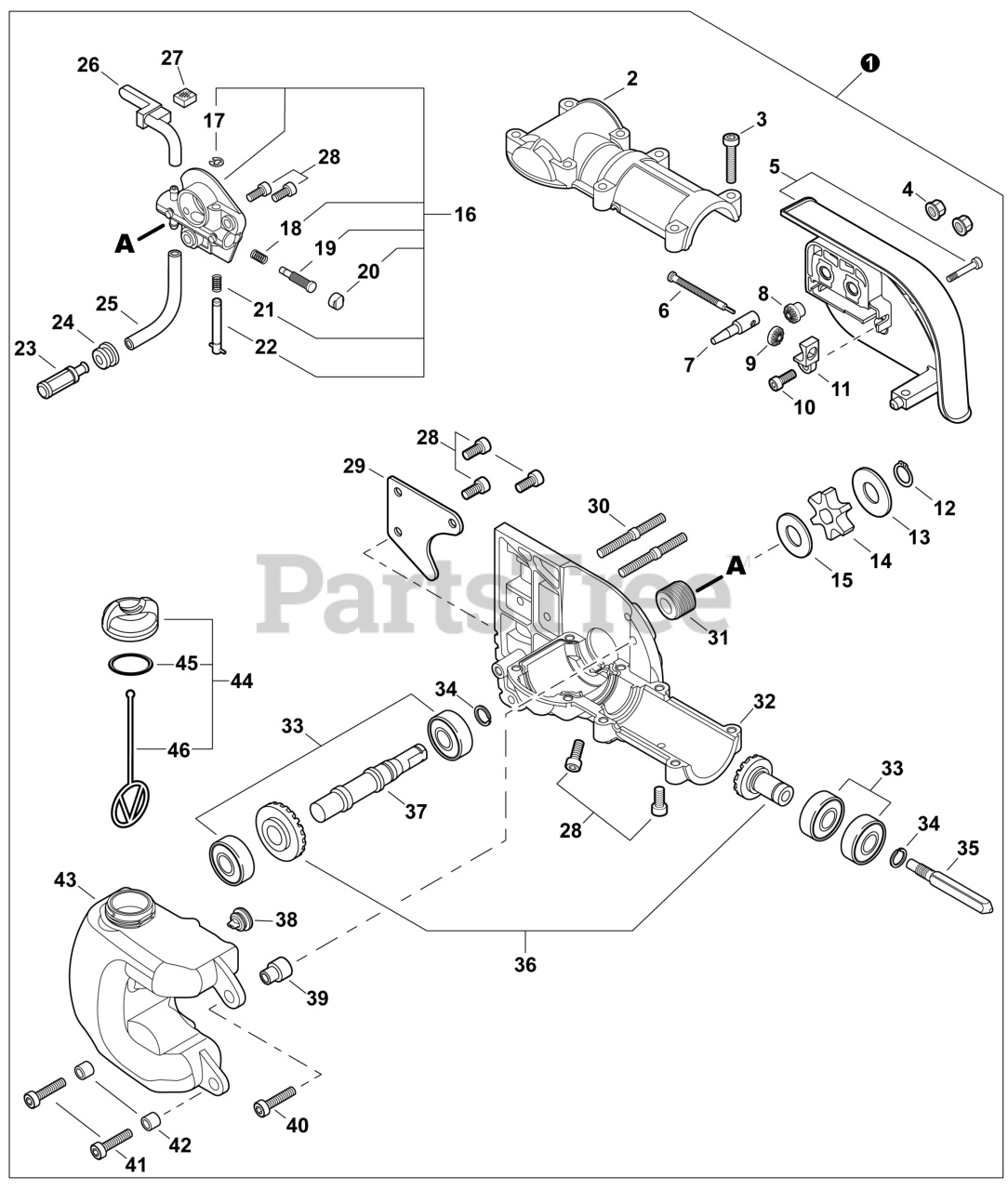

Gear Case Parts Diagram

  • Title

1

Echo 9001015

GEAR CASE ASSY

Note: Includes Items 2-46

$170.99

$

In Stock, Qty 17

0

2

Echo C531000030

CASE, GEAR - UPPER 35

$91.99

$

In Stock, only 1 left!

0

3

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

4

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

5

Echo C300000921

GUARD, SPROCKET

$7.49

$

In Stock, Qty 20+

0

6

Echo V203000041

BOLT 5

$5.99

$

In Stock, Qty 20+

0

7

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

8

Echo V651000320

GEAR - 14 TOOTH

$1.99

$

In Stock, Qty 20+

0

9

Echo V651000310

GEAR - 14 TOOTH

$1.49

$

In Stock, Qty 20+

0

10

Echo V252000040

SCREW 4

$1.49

$

In Stock, Qty 20+

0

11

Echo V355000140

COLLAR 8

$0.99

$

In Stock, Qty 20+

0

12

Echo V583000090

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

13

Echo V307000160

WASHER 10

$0.99

$

In Stock, Qty 20+

0

14

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 18

0

15

Echo 17501439131

WASHER 10.2x24.5x1.2

$2.49

$

In Stock, Qty 20+

0

16

Echo C022000010

AUTO-OILER ASSY

Note: Includes Items 17-22

$49.99

$

In Stock, Qty 14

0

17

Echo 12532715130

E-RING

$0.99

$

Usually ships in 2-4 days

0

18

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

0

19

Echo P022010650

PLUNGER ASSY

$11.99

$

Usually ships in 2-4 days

0

20

Echo P022010640

CAP, PLUNGER

$0.99

$

In Stock, Qty 9

0

21

Echo P022010670

SPRING

$1.99

$

In Stock, Qty 5

0

22

Echo P022010680

ADJUSTER, OILER

$7.49

$

Usually ships in 2-4 days

0

23

Echo 43620502832

FILTER, OIL

$8.99

$

In Stock, Qty 19

0

24

Echo 13211501462

GROMMET

$1.49

$

In Stock, Qty 20+

0

25

Echo 13011012331

PIPE 3x6x70

$0.99

$

In Stock, only 3 left!

0

26

Echo V470000181

PIPE, OIL OUTLET

$1.99

$

In Stock, Qty 13

0

27

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

28

Echo V805000130

BOLT, TORX 5x10

$0.99

$

In Stock, Qty 20+

0

29

Echo C649000140

HOOK

$2.49

$

Usually ships in 2-4 days

0

30

Echo V224000040

BOLT, STUD 6

$1.49

$

In Stock, Qty 20+

0

31

Echo 43706338330

GEAR, WORM

$14.99

$

In Stock, only 1 left!

0

32

Echo C531000430

CASE, GEAR

$74.99

$

In Stock, only 3 left!

0

33

Echo 9404206001

BEARING, BALL

$9.99

$

Usually ships in 2-4 days

0

34

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 10

0

35

Echo 61002522361

CONNECTOR, DRIVESHAFT

$5.99

$

In Stock, Qty 7

0

36

Echo P021009723

GEAR SET, BEVEL

$29.99

$

In Stock, only 1 left!

0

37

Echo C534000430

SHAFT, GEAR

$15.99

$

Usually ships in 2-4 days

0

38

Echo 13131406320

VENT ASSY

$5.49

$

In Stock, Qty 7

0

39

Echo V354000010

COLLAR 6

$6.99

$

Usually ships in 2-4 days

0

40

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

41

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

42

Echo 13104528230

SPACER 6.2x7.8x6

$1.49

$

In Stock, Qty 20+

0

43

Echo C200000081

TANK, OIL

$10.99

$

In Stock, only 2 left!

0

44

Echo P021005592

CAP ASSY

Note: Includes Items 45-46

$4.49

$

In Stock, Qty 20+

0

45

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

46

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
