PPT-266 - Echo Pole Saw (SN: E04313001001 - E04313999999) Gear Case, Auto-Oiler Parts Diagram

Pole Saw

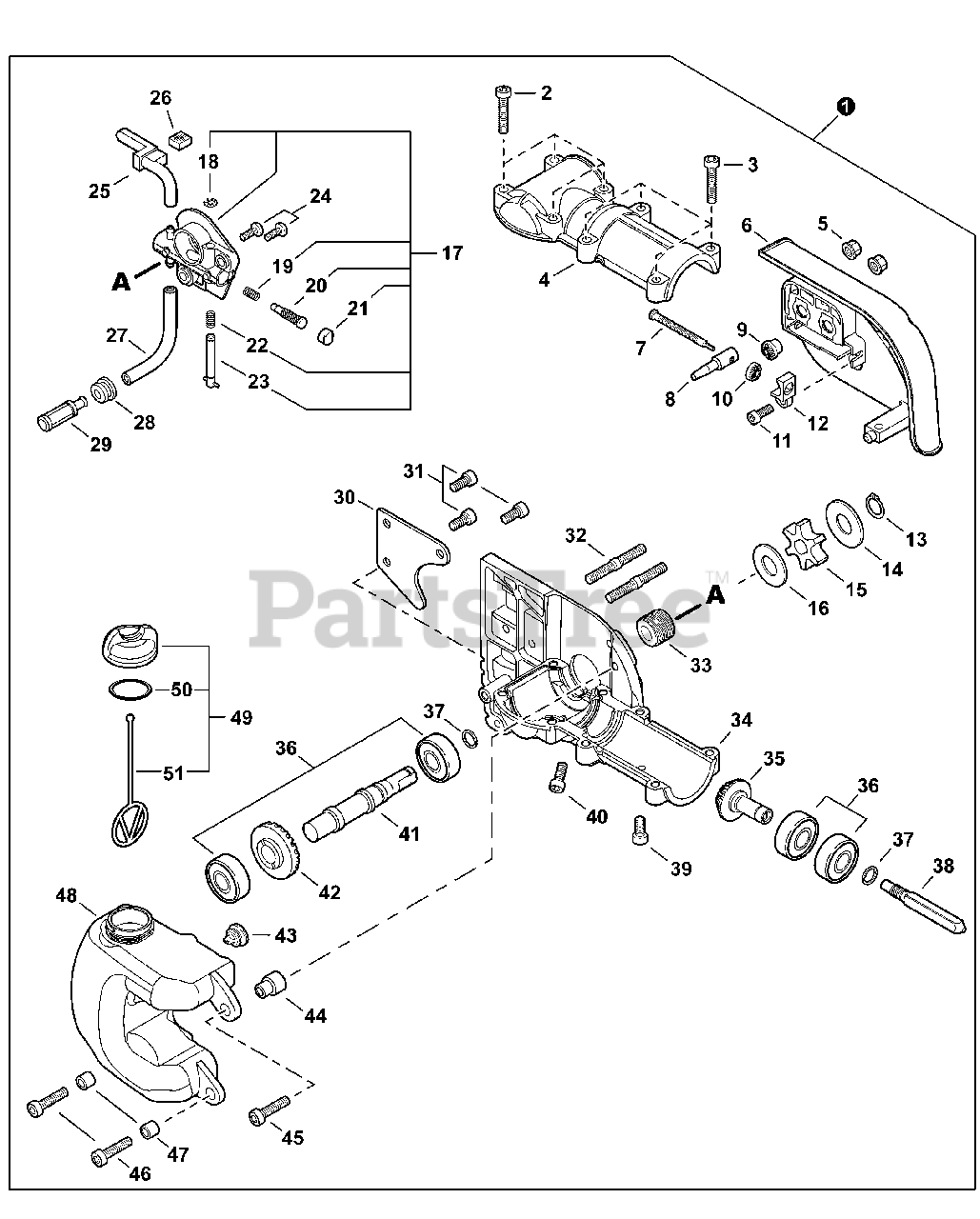

Gear Case, Auto-Oiler Parts Diagram

  • Title

1

Echo 9001015

GEAR CASE ASSY

Note: Includes Items 2-51

$170.99

$

In Stock, Qty 17

0

2

Echo V253000240

SCREW M5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 20+

0

4

Echo C531000030

CASE, GEAR - UPPER 35

$91.99

$

In Stock, only 1 left!

0

5

Echo 43301903933

NUT, FLANGE 6

$1.49

$

In Stock, Qty 20+

0

6

Echo C300000920

GUARD, SPROCKET
(Superseded to C300000921)

$7.49

$

In Stock, Qty 20+

0

7

Echo V203000041

BOLT 5

$5.99

$

In Stock, Qty 20+

0

8

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

9

Echo V651000320

GEAR - 14 TOOTH

$1.99

$

In Stock, Qty 20+

0

10

Echo V651000310

GEAR - 14 TOOTH

$1.49

$

In Stock, Qty 20+

0

11

Echo V252000040

SCREW 4

$1.49

$

In Stock, Qty 20+

0

12

Echo V355000140

COLLAR 8

$0.99

$

In Stock, Qty 20+

0

13

Echo V583000090

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

14

Echo V307000160

WASHER 10

$0.99

$

In Stock, Qty 20+

0

15

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 18

0

16

Echo 17501439131

WASHER 10.2×24.5×1.2

$2.49

$

In Stock, Qty 20+

0

17

Echo C022000010

AUTO-OILER ASSY

Note: Includes Items 18-23

$49.99

$

In Stock, Qty 14

0

18

Echo 12532715130

E-RING

$0.99

$

Usually ships in 2-4 days

0

19

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

0

20

Echo P022010650

PLUNGER ASSY

$11.99

$

Usually ships in 2-4 days

0

21

Echo P022010640

CAP, OIL PUMP

$0.99

$

In Stock, Qty 9

0

22

Echo P022010670

SPRING

$1.99

$

In Stock, Qty 5

0

23

Echo P022010680

ADJUSTER, OILER

$7.49

$

Usually ships in 2-4 days

0

24

Echo V253000200

SCREW 5×10

$0.99

$

In Stock, Qty 9

0

25

Echo V470000180

PIPE, OIL OUTLET
(Superseded to V470000181)

$1.99

$

In Stock, Qty 13

0

26

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

27

Echo 13011012330

PIPE, IMPULSE 3×6×70
(Superseded to 13011012331)

$0.99

$

In Stock, only 3 left!

0

28

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 20+

0

29

Echo 43620502832

FILTER, OIL

$8.99

$

In Stock, Qty 19

0

30

Echo C649000140

HOOK

$2.49

$

Usually ships in 2-4 days

0

31

Echo V253000200

SCREW 5×10

$0.99

$

In Stock, Qty 9

0

32

Echo V224000040

BOLT, STUD 6

$1.49

$

In Stock, Qty 20+

0

33

Echo 43706338330

GEAR, WORM

$14.99

$

In Stock, only 1 left!

0

34

Echo C531000430

CASE, GEAR

$74.99

$

In Stock, only 3 left!

0

35

Echo V651000210

GEAR, BEVEL - 15 TOOTH

$20.99

$

Usually ships in 2-4 days

0

36

Echo 9404206001

BEARING, BALL

$9.99

$

Usually ships in 2-4 days

0

37

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 10

0

38

Echo 61002522361

CONNECTOR, DRIVE SHAFT

$5.99

$

In Stock, Qty 7

0

39

Echo 90010505010

BOLT M5×10

$1.49

$

In Stock, Qty 11

0

40

Echo V253000200

SCREW 5×10

$0.99

$

In Stock, Qty 9

0

41

Echo C534000430

SHAFT, GEAR

$15.99

$

Usually ships in 2-4 days

0

42

Echo V651000201

GEAR, BEVEL - 23 TOOTH
(Superseded to P021009732)

$74.99

$

In Stock, only 1 left!

0

43

Echo 13131406320

VENT ASSY

$5.49

$

In Stock, Qty 7

0

44

Echo V354000010

COLLAR 6

$6.99

$

Usually ships in 2-4 days

0

45

Echo V253000240

SCREW M5×25

$0.99

$

In Stock, Qty 20+

0

46

Echo V253000230

BOLT 5×20

$0.99

$

In Stock, Qty 12

0

47

Echo 13104528230

SPACER 6.2×7.8×6

$1.49

$

In Stock, Qty 20+

0

48

Echo C200000081

TANK, OIL

$10.99

$

In Stock, only 2 left!

0

49

Echo P021005591

CAP ASSY
(Superseded to P021005592)

Note: Includes Items 50-51

$4.49

$

In Stock, Qty 20+

0

50

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

51

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0
