PPT-266 - Echo Pole Saw (SN: E06426001001 - E06426999999) Fan Cover Parts Diagram

Pole Saw

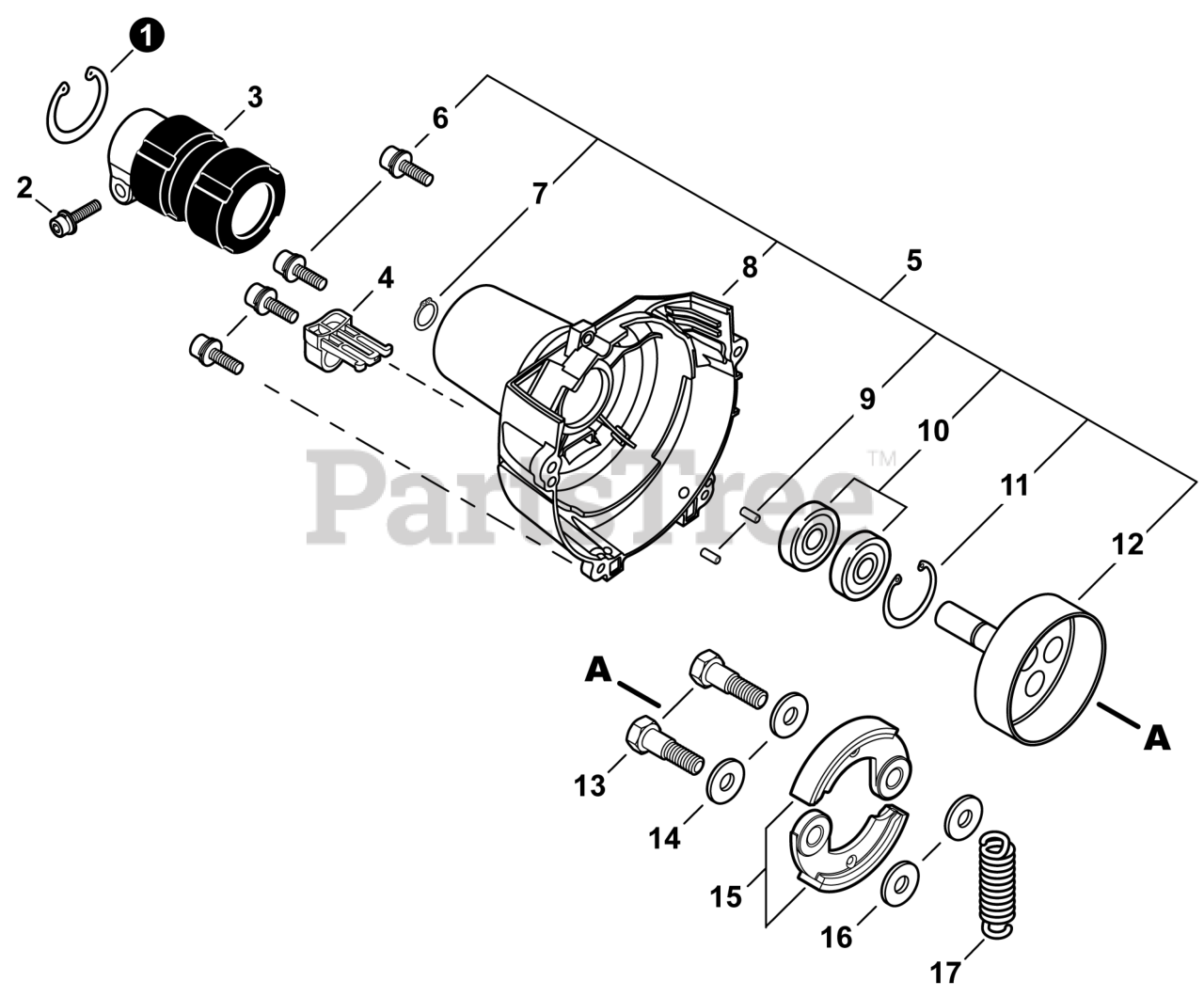

Fan Cover Parts Diagram

  • Title

1

Echo 90070200042

RING, SNAP 42

$1.99

$

In Stock, Qty 20+

0

2

Echo 90016205028

BOLT 5x28

$2.49

$

In Stock, Qty 10

0

3

Echo A575000640

HOLDER, MAIN PIPE

$21.99

$

In Stock, only 4 left!

0

4

Echo V491000180

CLIP

$0.99

$

In Stock, Qty 20+

0

5

Echo P021048580

COVER ASSY, FAN

Note: Includes Items 6-12

$83.99

$

Usually ships in 2-4 days

0

6

Echo V202000830

BOLT 4x16

$1.99

$

In Stock, Qty 18

0

7

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

8

Echo A172002570

COVER, FAN

$59.99

$

Usually ships in 2-4 days

0

9

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

10

Echo 9406106001

BEARING, BALL 6001

$7.49

$

In Stock, Qty 20+

0

11

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

12

Echo A556001320

DRUM, CLUTCH

$47.99

$

Usually ships in 2-4 days

0

13

Echo 17504656030

BOLT, CLUTCH 8x7.9xM6

$5.99

$

In Stock, Qty 20+

0

14

Echo 17504956030

WASHER, SPRING 8.5x16x0.5

$1.99

$

In Stock, Qty 20+

0

15

Echo A553000200

SHOE, CLUTCH

$18.99

$

In Stock, Qty 16

0

16

Echo 17504805530

WASHER 6.2x19x1.0

$1.99

$

In Stock, Qty 20+

0

17

Echo V451001390

SPRING, CLUTCH

$4.49

$

In Stock, Qty 7

0
