PPT-266 - Echo Pole Saw (SN: E06426001001 - E06426999999) Fuel System Parts Diagram

Pole Saw

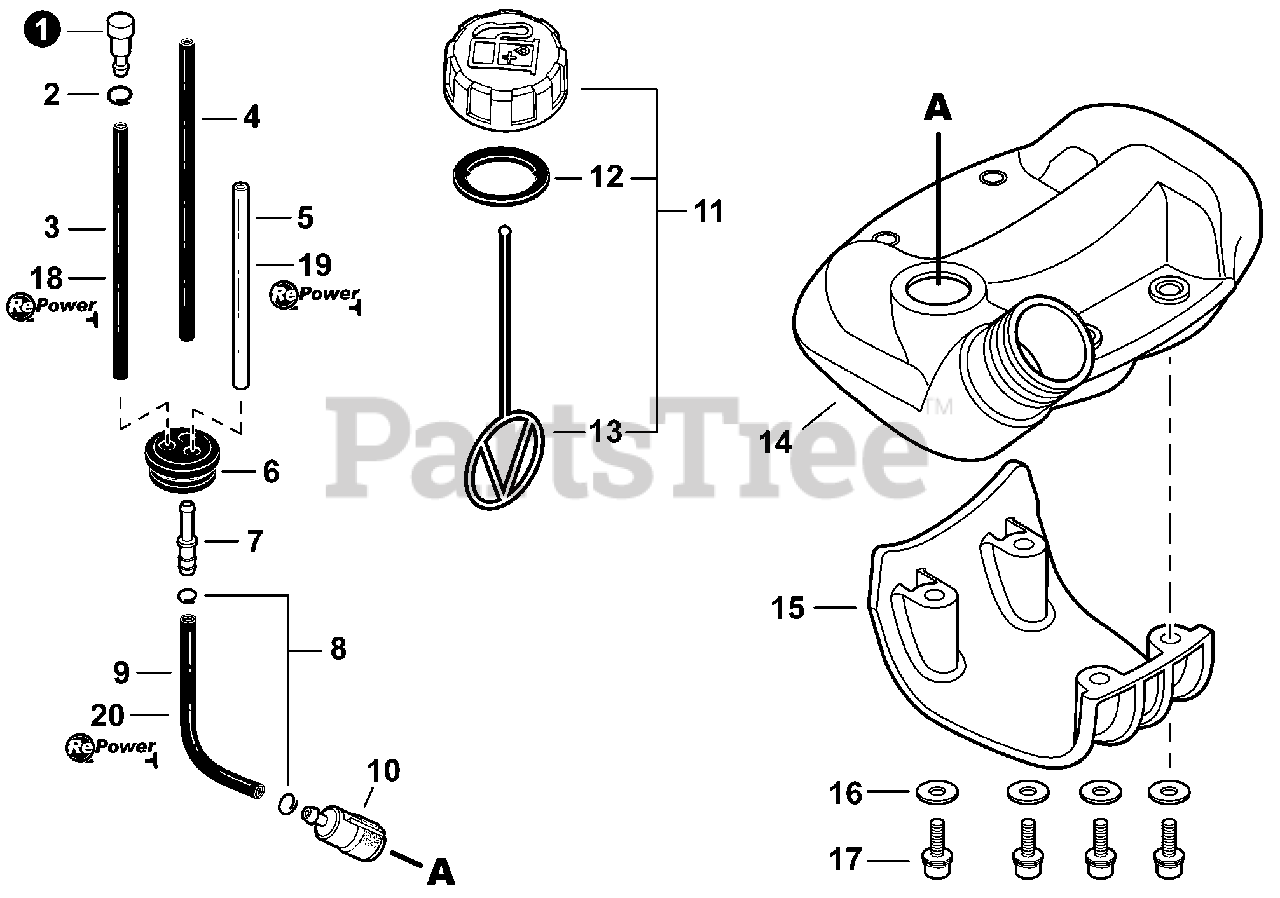

Fuel System Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

2

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

3

Echo V471001180

PIPE, FUEL 3x6x35 BLACK
(Superseded to V471001181)

$2.49

$

In Stock, Qty 20+

0

4

Echo V471003710

PIPE, FUEL - 3x5x67 - BLACK
(Superseded to V471005600)

$3.49

$

In Stock, only 3 left!

0

5

Echo 13201040830

PIPE, FUEL 3x6x75 CLEAR

$2.49

$

In Stock, Qty 20+

0

6

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

9

Echo V471003650

PIPE, FUEL - 3x5x125 - BLACK
(Superseded to V471003651)

$1.99

$

In Stock, Qty 11

0

10

Echo A369000440

FILTER, FUEL

$8.49

$

In Stock, Qty 20+

0

11

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 12-13

$6.99

$

In Stock, Qty 20+

0

12

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

13

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, only 4 left!

0

14

Echo P021013640

TANK, FUEL
(Superseded to P021013641)

$28.99

$

Usually ships in 2-4 days

0

15

Echo A175000030

GUARD, FUEL TANK

$6.99

$

In Stock, only 2 left!

0

16

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90016205025

BOLT 5x25

$0.99

$

In Stock, Qty 20+

0

18

Echo 90015

BULK PIPE - 3x6 MM BLACK (4 PIECESx2 M)

$48.99

$

In Stock, only 3 left!

0

19

Echo 90017

BULK PIPE - 3x6 MM CLEAR (4 PIECESx2 M)

$69.99

$

In Stock, only 1 left!

0

20

Echo 90014

BULK PIPE - 3x5 MM BLACK (4 PIECESx2 M)

$50.99

$

In Stock, Qty 9

0
