PPT-266 - Echo Pole Saw (SN: E06426001001 - E06426999999) Fuel System Parts Diagram

Pole Saw

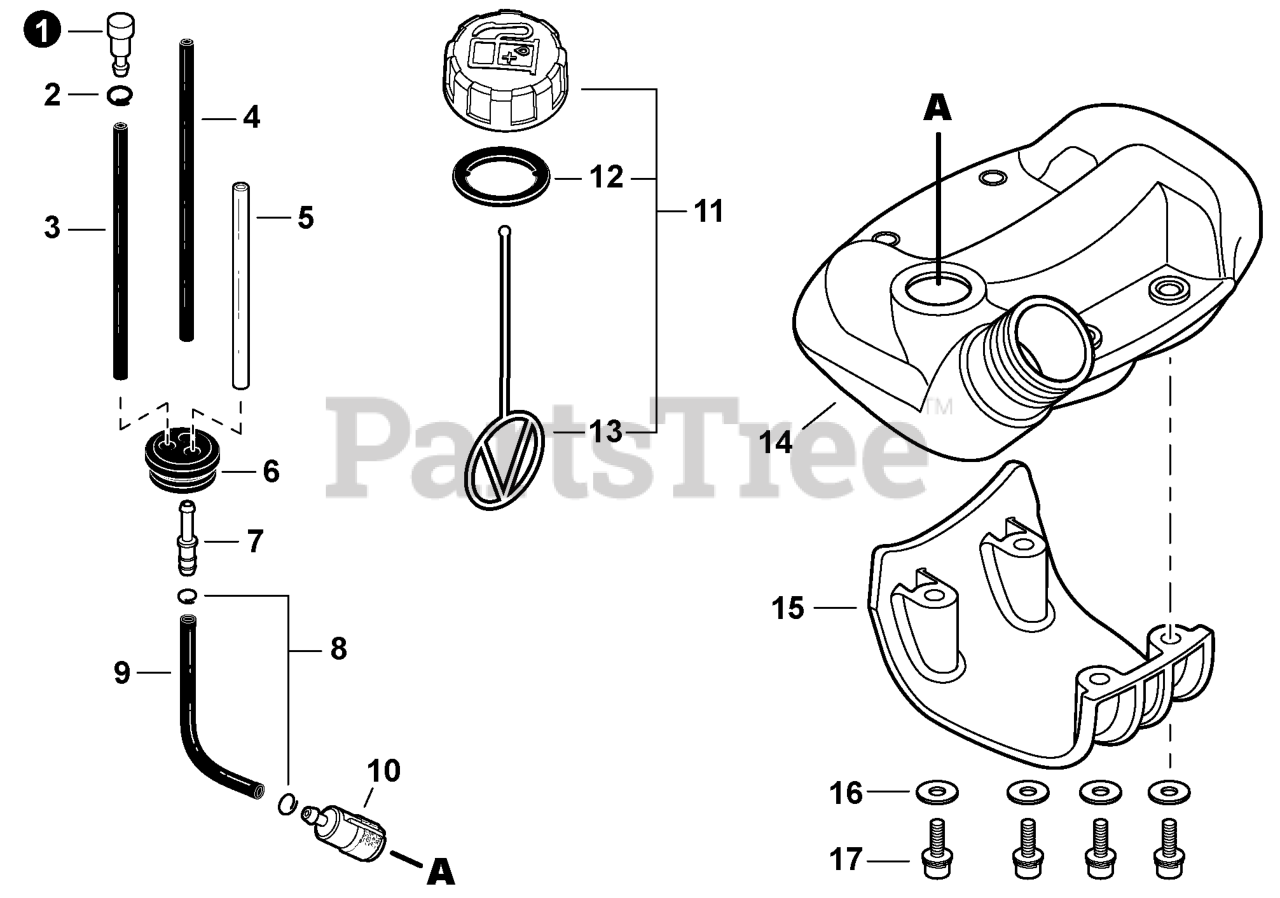

Fuel System Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

2

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

3

Echo V471001181

PIPE, FUEL 3x6x35 BLACK

$2.49

$

In Stock, Qty 20+

0

4

Echo V471005600

PIPE, FUEL 3x5.5x67 BLACK

$3.49

$

In Stock, only 2 left!

0

5

Echo 13201040830

PIPE, FUEL 3x6x75 CLEAR

$2.49

$

In Stock, Qty 20+

0

6

Echo 13211555931

GROMMET, FUEL

$2.99

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 6

0

9

Echo V471003651

PIPE, FUEL - 3x5x125 - BLACK

$1.99

$

In Stock, only 2 left!

0

10

Echo A369000440

FILTER, FUEL

$8.49

$

In Stock, Qty 20+

0

11

Echo P021053030

CAP ASSY, FUEL
(Superseded to P021040430)

Note: Includes Items 12-13

$6.99

$

In Stock, Qty 7

0

12

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.99

$

In Stock, only 4 left!

0

13

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

14

Echo P021054050

TANK, FUEL

$39.99

$

Usually ships in 2-4 days

0

15

Echo A175000030

GUARD, FUEL TANK

$6.99

$

In Stock, only 2 left!

0

16

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90016205025

BOLT 5x25

$0.99

$

In Stock, Qty 20+

0
