PPT-280 - Echo Pole Saw (SN: E09213001001 - E09213999999) Gear Case, Auto-Oiler Parts Diagram

Pole Saw

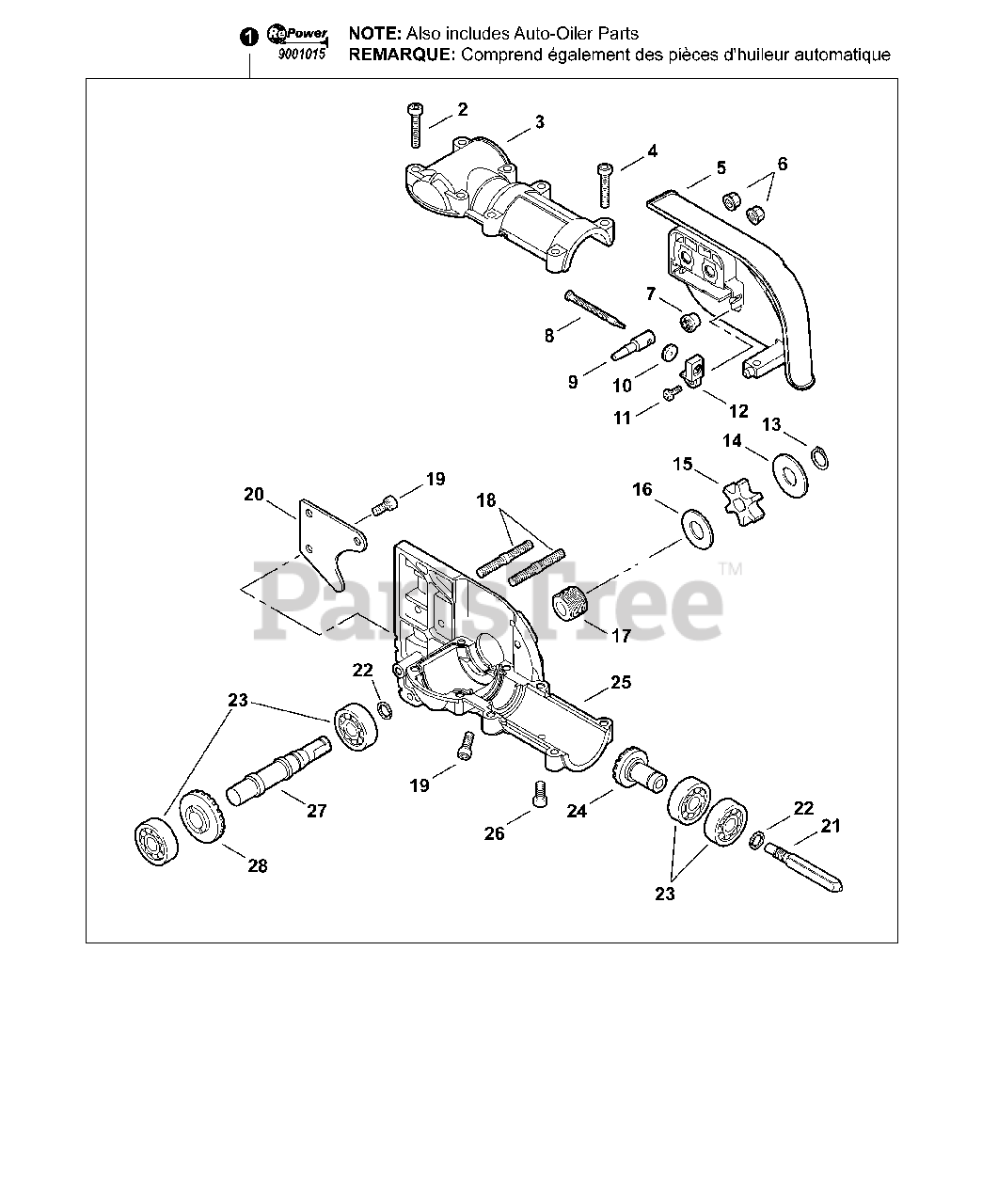

Gear Case, Auto-Oiler Parts Diagram

  • Title

1

Echo 9001015

CUTTING HEAD ASY

Note: Includes Items 2-28

$220.99

$

In Stock, Qty 12

0

2

Echo V253000240

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo C531000030

CASE, GEAR - UPPER

$110.99

$

In Stock, only 2 left!

0

4

Echo 90010505025

SCREW - 5×25

$1.49

$

In Stock, Qty 11

0

5

Echo C300000920

GUARD, SPROCKET
(Superseded to C300000921)

$8.99

$

In Stock, Qty 20+

0

6

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

7

Echo V651000320

GEAR - 14 TOOTH

$2.49

$

In Stock, Qty 20+

0

8

Echo V203000041

SCREW, TENSIONER

$6.99

$

In Stock, Qty 15

0

9

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

10

Echo V651000310

GEAR - 14 TOOTH

$1.99

$

In Stock, Qty 20+

0

11

Echo V252000040

SCREW - 4×8

$1.99

$

In Stock, Qty 20+

0

12

Echo V355000140

BRACKET, TENSIONER

$1.49

$

In Stock, Qty 20+

0

13

Echo V583000090

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

14

Echo V307000160

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

15

Echo C580000070

SPROCKET, DRIVE

$5.99

$

In Stock, Qty 14

0

16

Echo 17501439131

WASHER

$2.99

$

In Stock, Qty 20+

0

17

Echo V652000021

GEAR, WORM

$17.99

$

In Stock, only 2 left!

0

18

Echo V224000040

STUD, GUIDE BAR

$1.49

$

In Stock, Qty 20+

0

19

Echo V253000200

SCREW - 5×10

$0.99

$

In Stock, Qty 6

0

20

Echo C649000140

HOOK

$2.99

$

Usually ships in 2-4 days

0

21

Echo 61002522361

CONNECTOR, SHAFT

$6.99

$

In Stock, only 2 left!

0

22

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

23

Echo 9404206001

BEARING, BALL - 6001

$11.99

$

In Stock, only 2 left!

0

24

Echo V651000210

GEAR, BEVEL - 15 TOOTH

$20.99

$

Usually ships in 2-4 days

0

25

Echo C531000430

CASE, GEAR - LOWER

$89.99

$

In Stock, only 2 left!

0

26

Echo 90010505010

SCREW - 5×10

$1.49

$

In Stock, Qty 10

0

27

Echo C534000430

GEAR, SHAFT

$18.99

$

Usually ships in 2-4 days

0

28

Echo V651000201

GEAR, BEVEL - 23 TOOTH
(Superseded to P021009732)

$89.99

$

Usually ships in 2-4 days

0
