PPT-300 ES - Echo Pole Saw (SN: E06637001001 - E06637999999) Starter Parts Diagram

Pole Saw

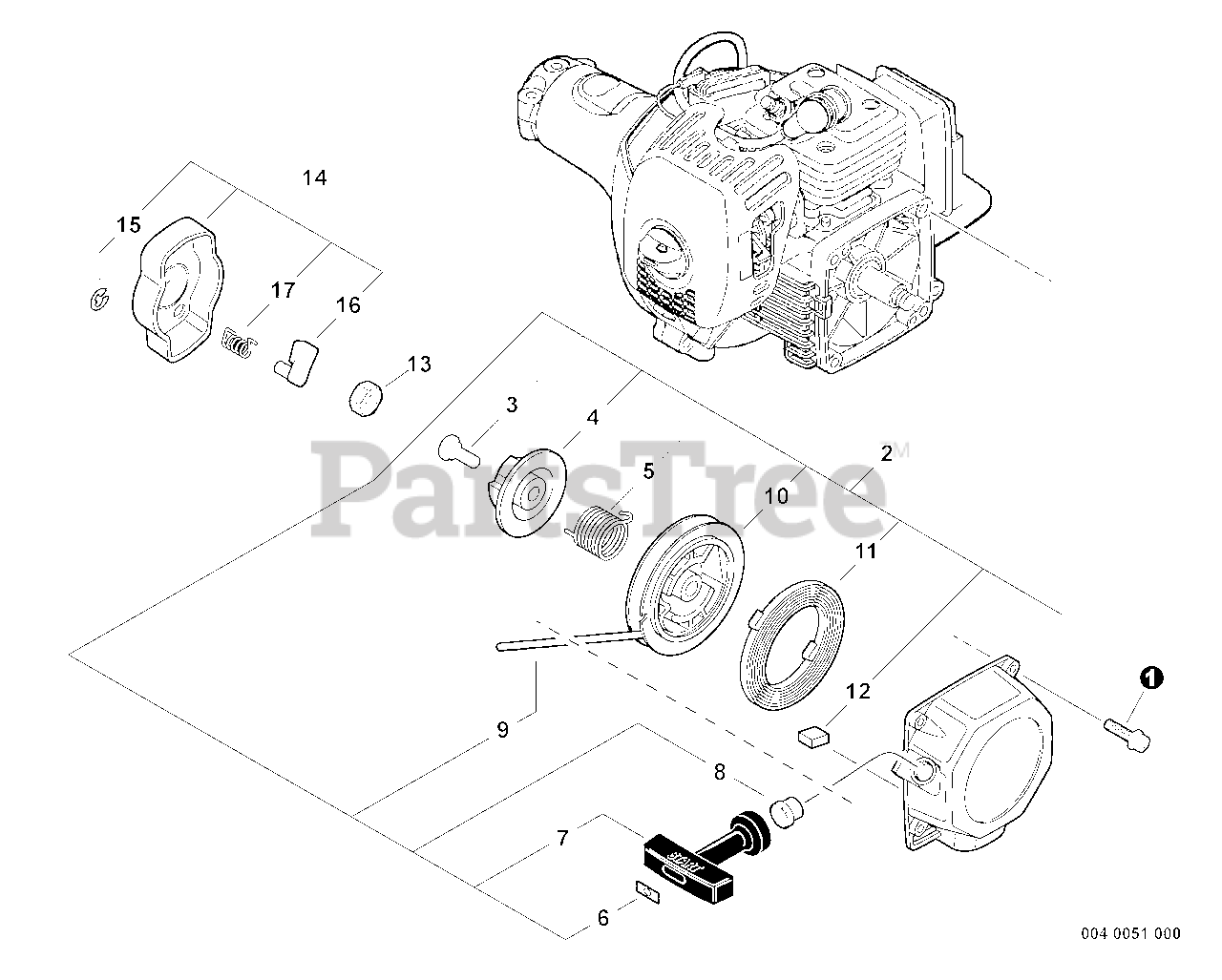

Starter Parts Diagram

  • Title

1

Echo V203000260

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

2

Echo A051001211

STARTER ASSY
(Superseded to A051001212)

Note: Includes ITEMS 3-12

$89.99

$

Usually ships in 2-4 days

0

3

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, only 2 left!

0

4

Echo P022008280

PLATE, CAM
(Superseded to Discontinued)

$

$

Not available

5

Echo P022008270

SPRING, DAMPER

$8.99

$

In Stock, Qty 15

0

6

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

7

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 8

0

8

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

9

Echo P022022110

ROPE, STARTER - 3X700

Note: RePower BULK OPTION: 99944440000

$

$

Currently unavailable

10

Echo A506000080

REEL, ROPE
(Superseded to P021039550)

$28.99

$

In Stock, only 2 left!

0

11

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, only 2 left!

0

12

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

14

Echo A052000180

STARTER PAWL ASSY

Note: Includes ITEMS 15-17

$9.99

$

In Stock, Qty 10

0

15

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, only 2 left!

0

16

Echo P022006850

PAWL, STARTER

$3.99

$

In Stock, Qty 13

0

17

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0
