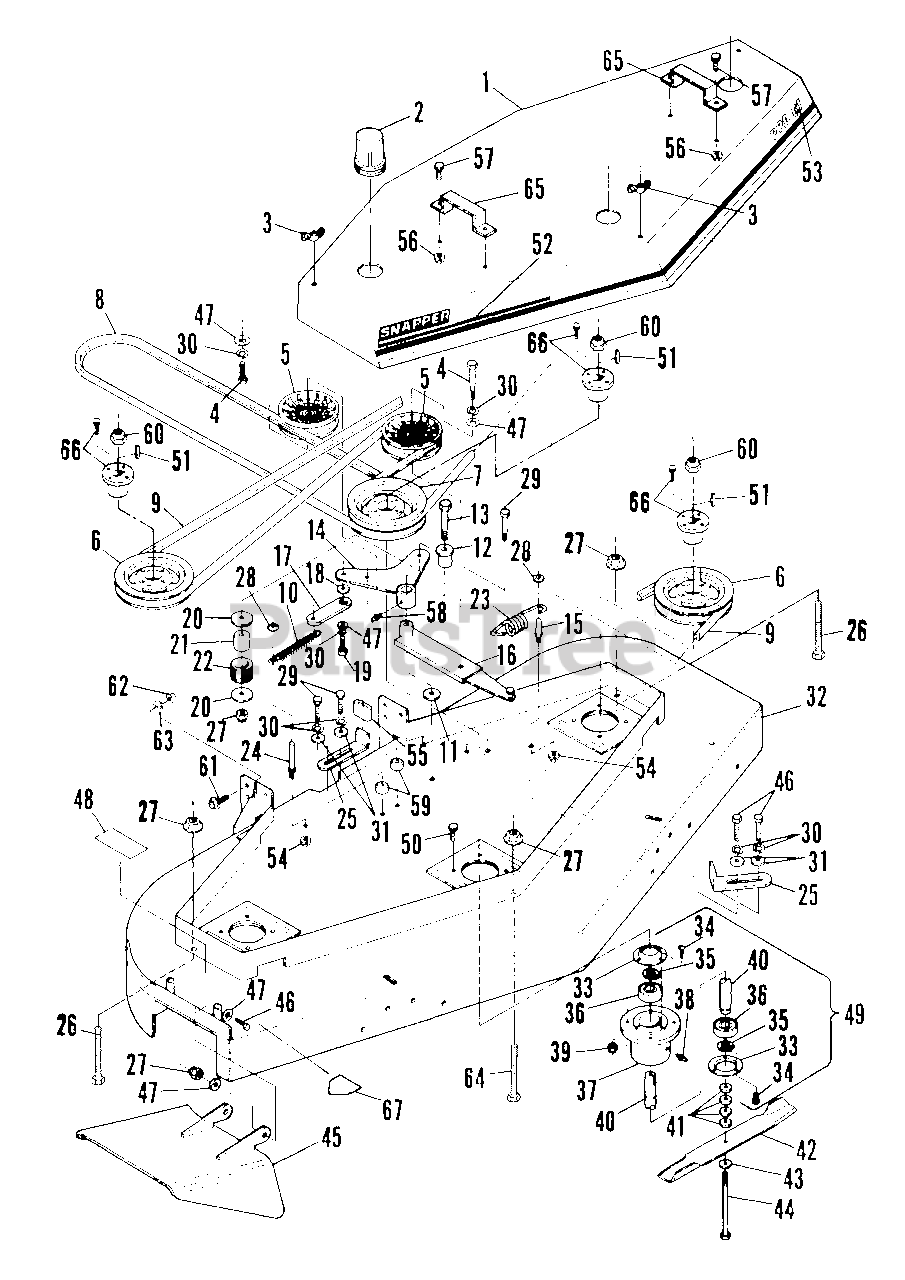

PPU 140KVE (80116) - Snapper Walk-Behind Mower, 14hp 61" Mower, Front Deck Parts Diagram

Walk-Behind Mower, 14hp

61" Mower, Front Deck Parts Diagram

  • Title

1

Snapper 52443

HOOD w/DECALS 61

$

$

Currently unavailable

2

Snapper 7019248

CAP, Spindle
(Superseded to 7019248YP)

$6.49

$

Usually ships in 2-12 days

0

3

Snapper 7091049

NUT, 3/8-16 Wing
(Superseded to 7091049SM)

$5.49

$

In Stock, Qty 6

0

4

Snapper 7091111

SCREW, 3/8"-16 x 3/4", Gr. 8, Hex Head

$

$

Not available

5

Snapper 7024761

PULLEY, Idler
(Superseded to 7024761YP)

Note: Was 19160

$101.99

$

Usually ships in 2-12 days

0

6

Snapper 7016378

PULLEY, w/Set Screw
(Superseded to 7016378YP)

$113.99

$

Usually ships in 2-12 days

0

7

Snapper 7016379

PULLEY, Double w/Set Screw

$

$

Currently unavailable

8

Snapper 7016104

BELT, Engine to Deck 62.5"
(Superseded to 7016104YP)

$46.99

$

Usually ships in 2-12 days

0

9

Snapper 7016103

BELT, Cutter Spindle
(Superseded to 7016103YP)

$77.99

$

Usually ships in 2-12 days

0

10

Snapper 7016432

SPRING, Idler
(Superseded to 7016432YP)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 7016561

BUSHING, Machine 14 GA
(Superseded to 7016561YP)

$5.49

$

In Stock, only 3 left!

0

12

Snapper 7016434

PIVOT, Deck Idler
(Superseded to 7016434YP)

$19.99

$

Usually ships in 2-12 days

0

13

Snapper 7091126

SCREW, 3/8"-16 x 3 3/4", Hex Head Cap

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7040666

ARM, Idler
(Superseded to 7040666YP)

$59.99

$

Usually ships in 2-12 days

0

15

Snapper 7027716

STUD, Spring Mounting

$

$

Not available

16

Snapper 7040656

ARM, Idler
(Superseded to 7040656YP)

$314.99

$

Usually ships in 2-12 days

0

17

Snapper 7032948

ARM, Tension
(Superseded to 7032948YP)

$9.99

$

Usually ships in 2-12 days

0

18

Snapper 7017743

SPACER

$

$

Currently unavailable

19

Snapper 91048

SCREW, 3/8"-16 x 5/8", Gr. 5, Hex Head

$

$

Currently unavailable

20

Snapper 7091047

WASHER, Flat (1 1/2" O.D.)

$

$

Not available

21

Snapper 7016457

SPACER, Snubber

$

$

Currently unavailable

22

Snapper 7016458

BUMPER, Snubber

$

$

Not available

23

Snapper 7014168

SPRING, Blade HDL
(Superseded to 7014168YP)

$6.99

$

In Stock, only 2 left!

0

24

Snapper 7012125

GUIDE, Plate
(Superseded to 703837)

$8.49

$

Usually ships in 2-12 days

0

25

Snapper 7032947

BRACKET, Snubber

$

$

Currently unavailable

26

Snapper 7027169

TAP BOLT, 3/8" x 5"
(Superseded to 7027169YP)

Note: Was 91132

$20.99

$

Usually ships in 2-12 days

0

27

Snapper 7091619

NUT, 3/8"-16, Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

28

Snapper 7013946

RETAINER, 3/8"
(Superseded to 7013946YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7091497

SCREW, 3/8"-16 x 1 1/2", Hex Head Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, Qty 20+

0

30

Snapper 7090118

WASHER, 3/8" Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7090692

WASHER, 5/16" Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7040649

DECK

$

$

Currently unavailable

33

Snapper 7019096

CAP, Cutter Housing
(Superseded to 7019096YP)

$45.99

$

Usually ships in 2-12 days

0

34

Snapper 7090913

SCREW, Self-Tapping, #10-24 x 1/2"
(Superseded to 704060)

Note: Was 91034

$3.99

$

In Stock, Qty 20+

0

35

Snapper 7023548

RING, Retaining
(Superseded to 7023548YP)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7019125

BEARING, Single Seal
(Superseded to 7019125YP)

$40.99

$

Usually ships in 2-12 days

0

37

Snapper 7027685

HOUSING, Cutter
(Superseded to 7027685YP)

Note: Was 22158

$90.99

$

Usually ships in 2-12 days

0

38

Snapper 7076997

ZERK, 1/8 NPT

$

$

Currently unavailable

39

Snapper 7091299

NUT, 3/8" Hex Nylon Ring
(Superseded to 703117)

Note: Was 76979

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7019189

SPINDLE, Cutter
(Superseded to 7019189YP)

$86.99

$

Usually ships in 2-12 days

0

41

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.99

$

In Stock, only 1 left!

0

42

Snapper 7075770

BLADE, 21" High
(Superseded to 7075770YP)

Note: Was 17081

$29.99

$

In Stock, Qty 20+

0

43

Snapper 7016440

WASHER, 5/8" Bevel
(Superseded to 7016440SM)

$8.49

$

In Stock, Qty 20+

0

44

Snapper 7016447

SCREW, 5/8"-18 x 8 1/2" Hex Head Cap

$

$

Not available

45

Snapper 40652

DEFLECTOR, Chute

$

$

Currently unavailable

46

Snapper 7091304

SCREW, 3/8"-16 x 1" Hex Head Cap
(Superseded to 703407)

Note: Was 90563

$11.99

$

Usually ships in 2-12 days

0

47

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

48

Snapper 7076533

DECAL, Caution

$

$

Not available

49

Snapper 7052369

HOUSING, Cutter Assembly

Note: (Includes Items 33 thru 38 & 40)

$

$

Currently unavailable

50

Snapper 7091328

SCREW, 3/8"-16 x 1 1/4" Hex Head Cap
(Superseded to 703871)

Note: Was 76941

$4.99

$

Usually ships in 2-12 days

0

51

Snapper 7091033

KEY, Spindle

Note: Was 16375

$

$

Not available

52

Snapper 7017824

DECAL, 61 Hood

$

$

Currently unavailable

53

Snapper 16915

DECAL, Pro 61

$

$

Currently unavailable

54

Snapper 7090962

NUT, 3/8"-16 Flange Lock

$4.49

$

In Stock, Qty 6

0

55

Snapper 7016467

BUMPER, Snubber
(Superseded to 7016467YP)

$

$

Not available

56

Snapper 7076978

NUT, 1/4" Hex Nylon Ring
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

57

Snapper 7090072

SCREW, 1/4" x 5/8" Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 6

0

58

Snapper 7076998

ZERK, 1/4"-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 5

0

59

Snapper 7023515

SPACER,
(Superseded to 7023515YP)

$4.49

$

Usually ships in 2-12 days

0

60

Snapper 7076980

NUT, 5/8"
(Superseded to 7076980YP)

$5.49

$

In Stock, Qty 7

0

61

Snapper 7090662

BOLT, 1/2"-13 x 1 1/4" Hex Flange Lock
(Superseded to 7090662YP)

$7.99

$

Usually ships in 2-12 days

0

62

Snapper 7091316

NUT, 1/2"-13 Hex
(Superseded to 703340)

Note: Was 90258

$8.49

$

In Stock, only 1 left!

0

63

Snapper 90252

WASHER, 1/2" Lock

$

$

Currently unavailable

64

Snapper 7091131

TAP BOLT, 3/8" x 4"
(Superseded to 7091131YP)

$10.99

$

Usually ships in 2-12 days

0

65

Snapper 7033189

HANDLE, Hood

$

$

Currently unavailable

66

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

$51.99

$

Usually ships in 2-12 days

0

67

Snapper 7013010

DECAL, Warning
(Superseded to 7013010SM)

$9.99

$

In Stock, Qty 5

0
