PPX 19H46 (960420209-00) - Poulan Pro Lawn Tractor (2017-10) ENGINE Parts Diagram

Lawn Tractor

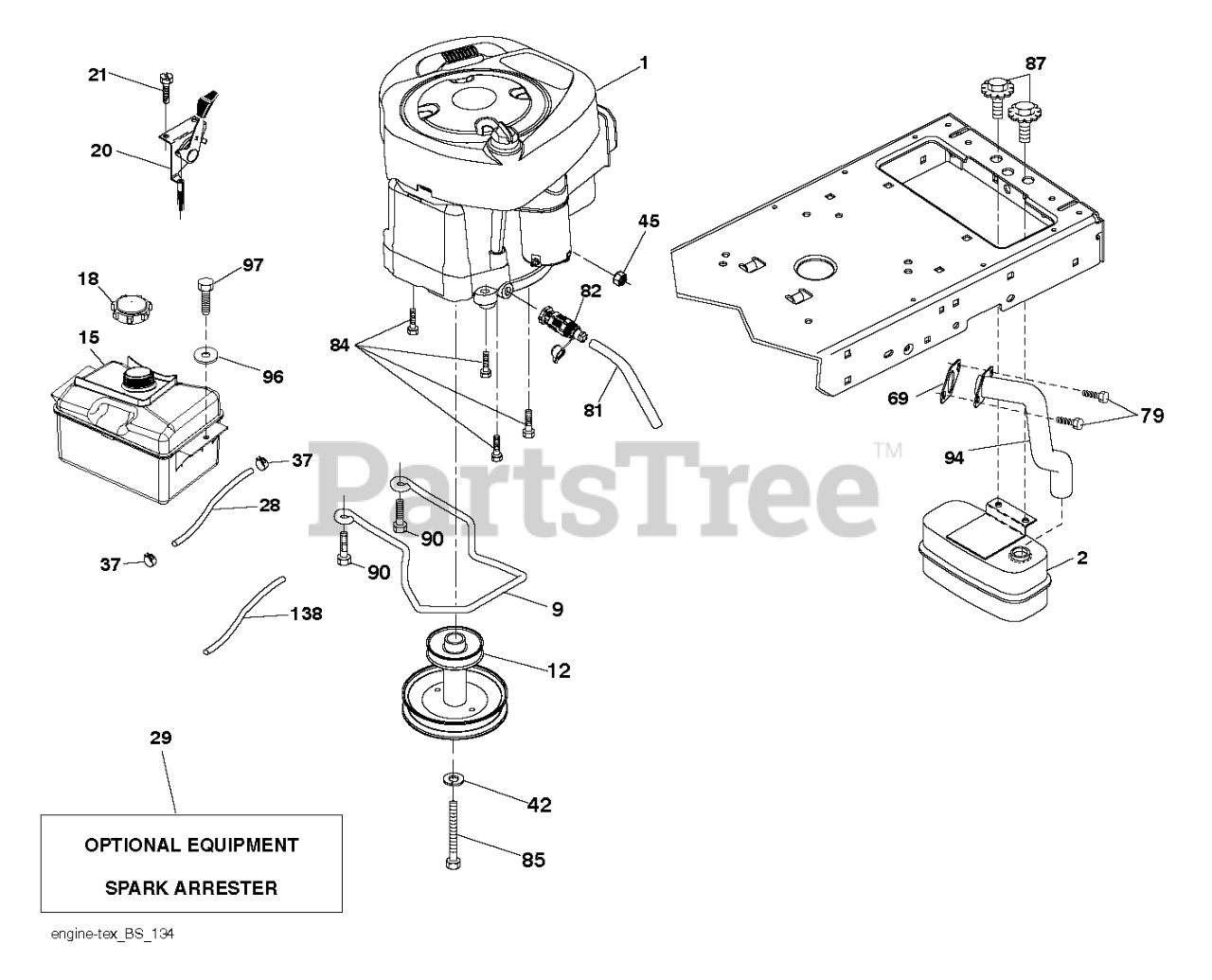

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: B&S MODEL 40N877-0015-G1 (501258501)

$

$

Not available

2

Poulan 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

$51.99

$

In Stock, only 2 left!

0

9

Poulan 501832601

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$13.99

$

In Stock, only 2 left!

0

12

Poulan 586728901

PULLEY.ENGINE
(Superseded to 532405472)

$43.99

$

In Stock, only 1 left!

0

15

Poulan 532433004

TANK.ASM.FT.2.5GAL.W/CAP.EPA17
(Superseded to 532433005)

$

$

Not available

18

Poulan 581176101

CAP.FUEL.2 WAY VENT

$45.99

$

In Stock, only 3 left!

0

20

Poulan 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$34.99

$

Usually ships in 3-10 days

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.49

$

In Stock, Qty 15

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$13.99

$

In Stock, only 3 left!

0

29

Poulan 532137180

Arrester, Spark (Optional equipment) (AYP part number)

$193.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

Clamp Hose Black (AYP part number)

$3.99

$

In Stock, only 4 left!

0

42

Poulan 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, Qty 18

0

45

Poulan 873510400

Nut Keps Hex 1/4 - 20 UNC (AYP part number)
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Poulan 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 18

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 8

0

84

Poulan 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 11

0

85

Poulan 501606501

Speed Clip

$3.49

$

In Stock, Qty 15

0

87

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

94

Poulan 581880901

EXHAUST.TUBE.B&S.28/31

$26.99

$

In Stock, only 2 left!

0

96

Poulan 819091416

Washer 9/32 x 7/8 x 16 Gauge (AYP part number)
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

138

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$14.99

$

In Stock, only 1 left!

0
