PPX 46 Z (967721901-00) - Poulan Pro 46" Zero-Turn Mower (2018-01) MOWER DECK / CUTTING DECK Parts Diagram

46" Zero-Turn Mower

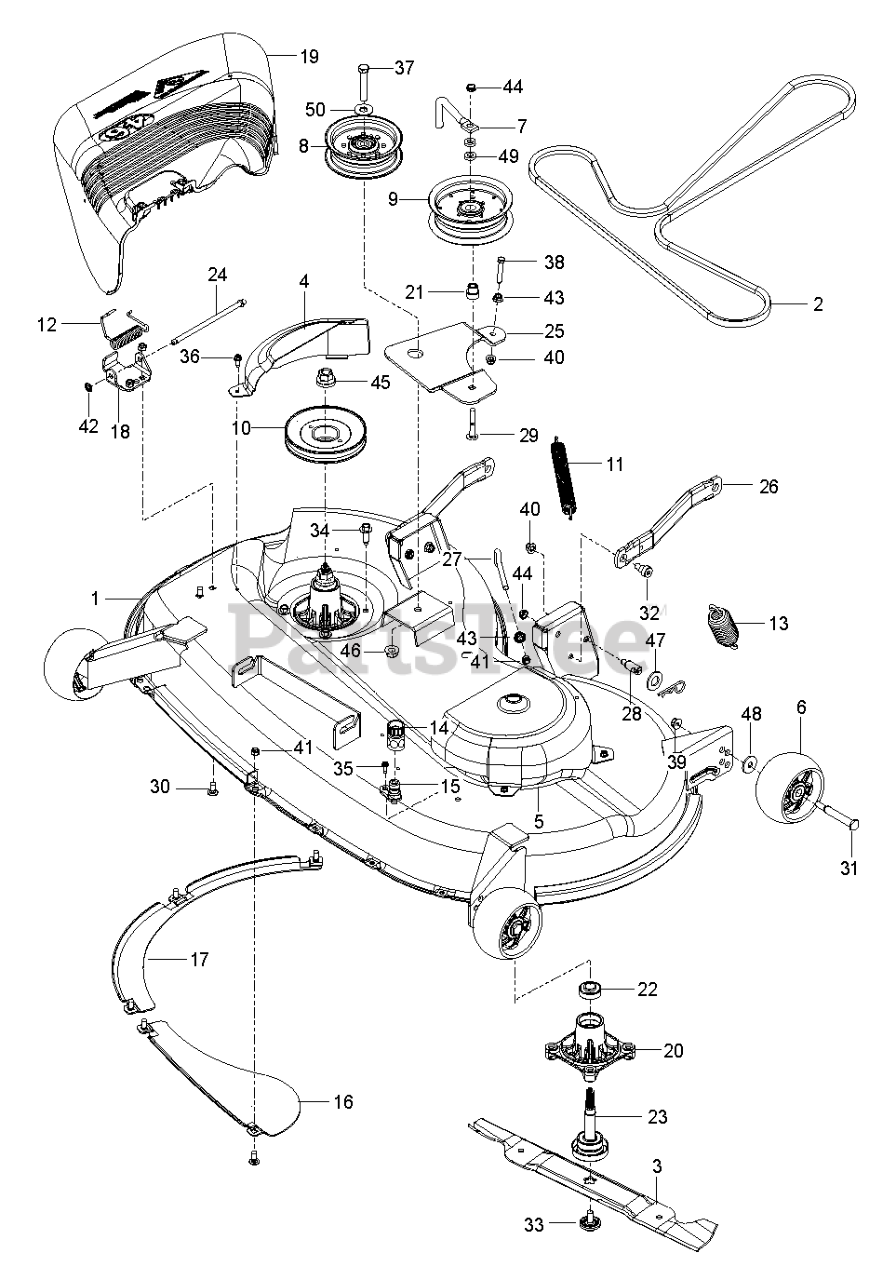

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 596827201

KIT.46"DECK.W/PACKAGING&DECAL

$461.99

$

Usually ships in 3-10 days

0

2

Poulan 539117245

V-BELT

$66.99

$

In Stock, Qty 20+

0

3

Poulan 532405380

BLADE.MOWER.46".HI.LIFT

$20.99

$

Usually ships in 3-10 days

0

4

Poulan 591060002

COVER 46 XFAB TRACTOR RH MANDR

$14.99

$

Usually ships in 3-10 days

0

5

Poulan 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, Qty 8

0

6

Poulan 589527301

WHEEL.GAUGE.RALLY

$4.99

$

In Stock, Qty 20+

0

7

Poulan 522629701

BELT KEEPER 5"
(Superseded to 522629702)

$4.99

$

In Stock, Qty 14

0

8

Poulan 532196104

PULLEY.IDLER.MWR.STATIONARY.LH

$34.99

$

In Stock, Qty 20+

0

9

Poulan 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

10

Poulan 588586601

PULLEY.MANDREL.46"

$22.99

$

In Stock, Qty 20+

0

11

Poulan 582504001

SPRING.EXTENSION

$7.49

$

In Stock, Qty 14

0

12

Poulan 532178102

SPRING, TORSION
(Superseded to 539107609)

$4.99

$

In Stock, Qty 20+

0

13

Poulan 539118762

SPRING
(Superseded to 596482001)

$7.49

$

In Stock, Qty 11

0

14

Poulan 532416405

COUPLING.QUICK CONNECT

$8.99

$

In Stock, Qty 20+

0

15

Poulan 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

16

Poulan 532403149

BAFFLE CENTER FRONT

$14.99

$

Usually ships in 3-10 days

0

17

Poulan 532403150

BAFFLE FRONT RH

$11.99

$

Usually ships in 3-10 days

0

18

Poulan 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

19

Poulan 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 10

0

20

Poulan 587125201

MANDREL.W/SPCR.BRG.SHRT.NONRVL

$40.99

$

In Stock, Qty 20+

0

21

Poulan 539112076

IDLER BUSHING
(Superseded to 596790301)

$5.99

$

In Stock, Qty 20+

0

22

Poulan 585323901

BEARING.MANDREL.TOP.EXTENDED

$12.99

$

In Stock, Qty 20+

0

23

Poulan 587255601

SHAFT

$

$

Not available

24

Poulan 532131491

Rod Hinge 42" 6 75 Wlg (AYP part number)
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 588096402

ARM.PNT.CLTCHG.STMP.46.RZ.EDIP
(Superseded to 594036202)

$18.99

$

Usually ships in 3-10 days

0

26

Poulan 532195185

ARM.SUSPENSION.MOWER

$18.99

$

Usually ships in 3-10 days

0

27

Poulan 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

In Stock, Qty 11

0

28

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

29

Poulan 872110618

Bolt, Carriage 3/8-16 x 2 1/4 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

30

Poulan 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

31

Poulan 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

32

Poulan 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

In Stock, Qty 10

0

33

Poulan 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

35

Poulan 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 532137729

Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number)

$4.99

$

In Stock, Qty 20+

0

37

Poulan 874780740

BOLT.HEX.7/16-14
(Superseded to 596435201)

$3.99

$

In Stock, Qty 15

0

38

Poulan 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

41

Poulan 873800500

Locknut, Hex, with Washer Insert 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

42

Poulan 532110452

Nut Push Phos & Oil (AYP part number)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

46

Poulan 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 20+

0

47

Poulan 819212113

WASHER
(Superseded to 596320001)

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 539990692

WASHER 5/16 FLAT
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

49

Poulan 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 20+

0

50

Poulan 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

In Stock, Qty 19

0
