PR 1030 ES (961920031-00) - Poulan Pro Snow Thrower (2009-06) Control Panel / Discharge Chute Parts Diagram

Snow Thrower

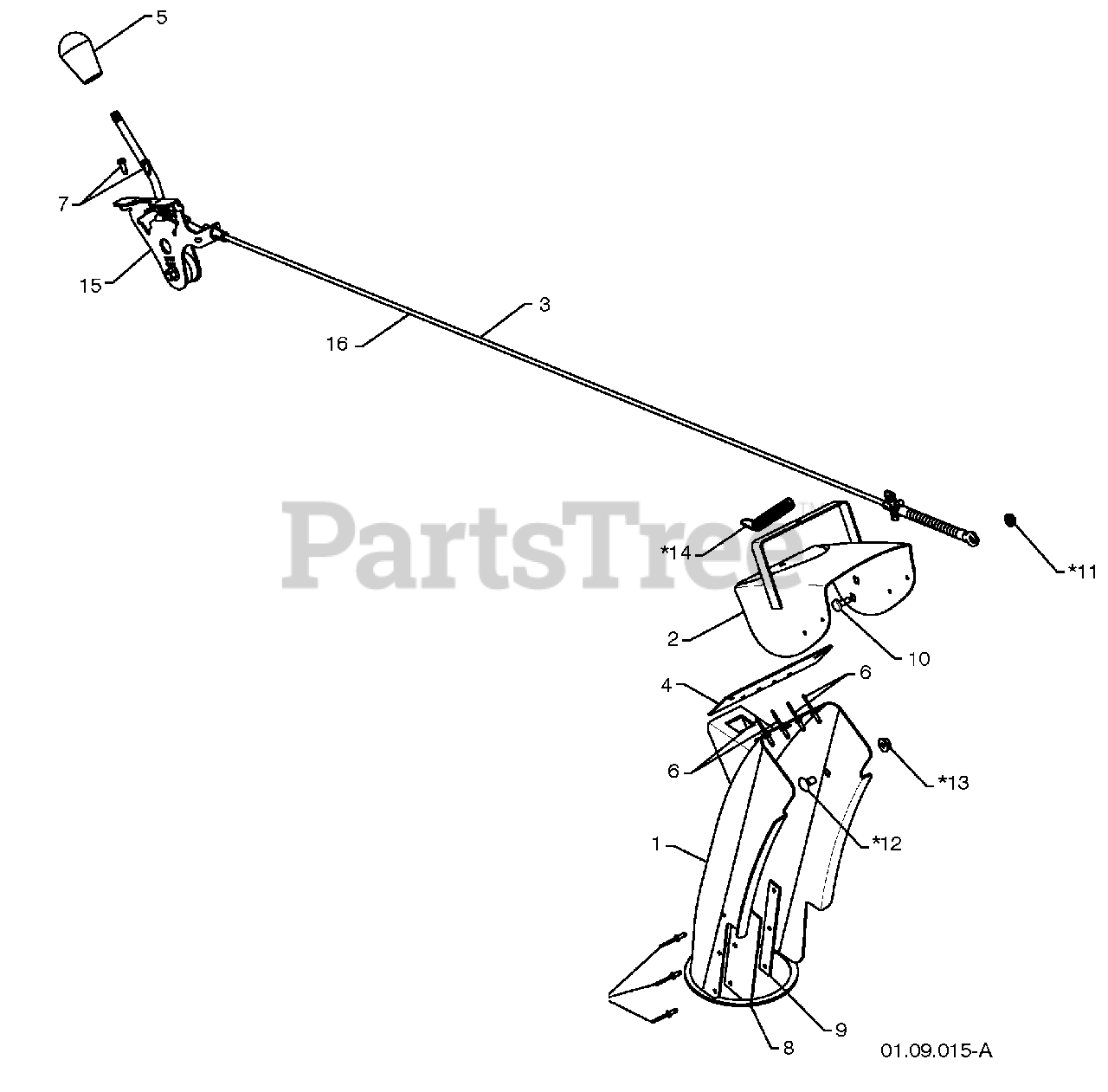

Control Panel / Discharge Chute Parts Diagram

  • Title

1

Electrolux/AYP 420315X428

CHUTE WELDMENT
(Superseded to 532443624)

$74.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 178633X428

DEFLECTOR WELDMENT
(Superseded to 532184511)

$113.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 420673

DEFLECTOR CONTROL ASSEMBLY
(Superseded to 585271701)

$68.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 420325

DEFLECTOR SEAL
(Superseded to 532420325)

$6.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 414280

KNOB BLACK
(Superseded to 532414280)

$7.99

$

In Stock, Qty 5

0

6

Electrolux/AYP 128415

POP RIVET
(Superseded to 532128415)

$3.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 17501010

SCREW 10-24 X .625
(Superseded to 817501010)

$

$

Not available

8

Electrolux/AYP 430324

CHUTE SNOW SHIELD
(Superseded to 532430324)

$22.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 419822X004

SHIELD RETAINER STRAP
(Superseded to 532421728)

$14.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 179829

SHOULDER BOLT 1/4-20 X .375
(Superseded to 532179829)

Note: All Items Indicated With An * Are Provided In The Bag Of Items Shipped Loose With Product.

$4.99

$

In Stock, Qty 10

0

11

Electrolux/AYP 191730

NUT 1/4-20
(Superseded to 532191730)

Note: All Items Indicated With An * Are Provided In The Bag Of Items Shipped Loose With Product.

$3.99

$

In Stock, Qty 6

0

12

Electrolux/AYP 72250505

CARRIAGE BOLT 3/8-16 X .625
(Superseded to 872250505)

Note: All Items Indicated With An * Are Provided In The Bag Of Items Shipped Loose With Product.

$

$

Not available

13

Electrolux/AYP 751153

NUT 5/16-18
(Superseded to 532426589)

Note: All Items Indicated With An * Are Provided In The Bag Of Items Shipped Loose With Product.

$4.99

$

In Stock, Qty 12

0

14

Electrolux/AYP 184505

DEFLECTOR SPRING
(Superseded to 532184505)

Note: All Items Indicated With An * Are Provided In The Bag Of Items Shipped Loose With Product.

$7.99

$

In Stock, Qty 12

0

15

Electrolux/AYP 420679

(SERVICE PART) DEFLECTOR CONTROL
(Superseded to 532420679)

$68.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 420672

(SERVICE PART) DEFLECTOR CABLE BLK

$

$

Not available
