PR 160N21CHC (961380005-01) - Poulan Pro Walk-Behind Mower (2009-01)

Walk-Behind Mower

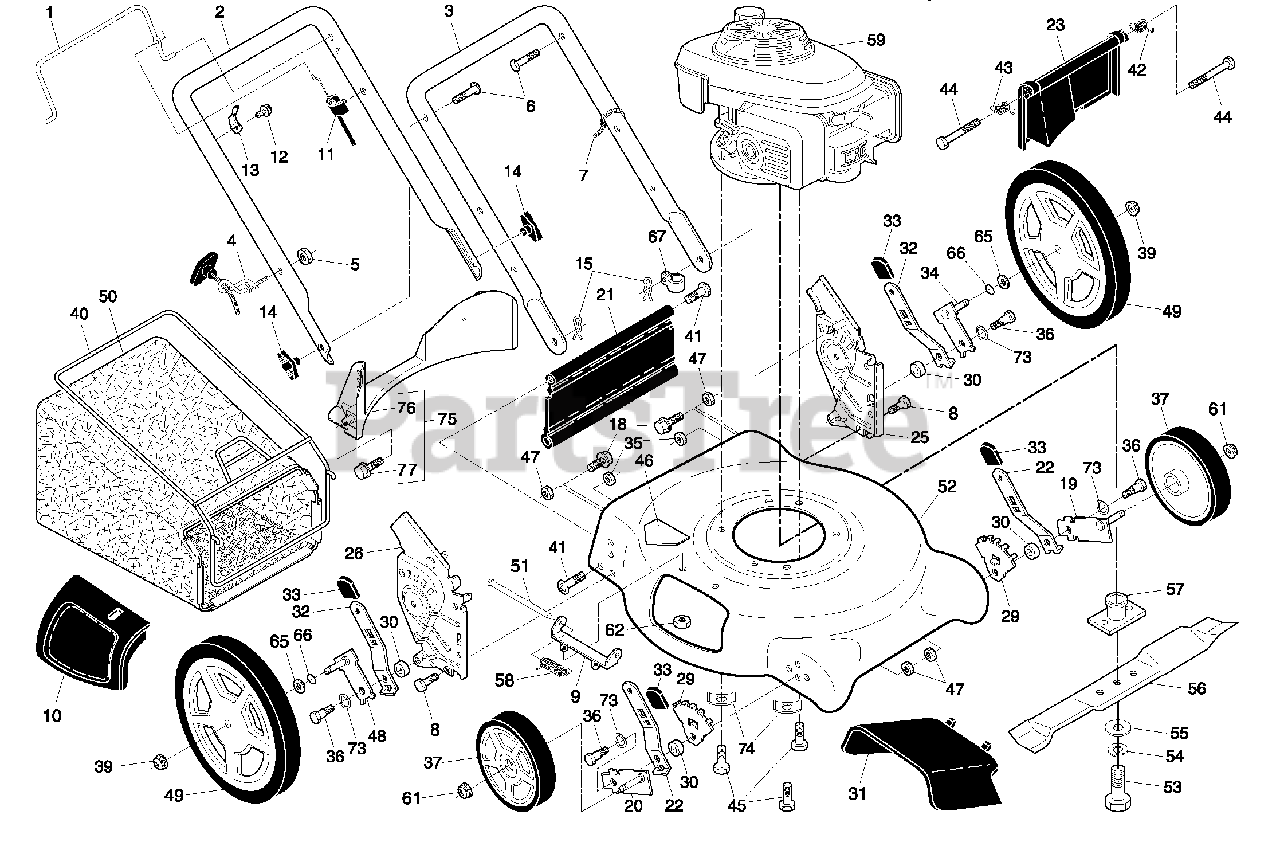

PR 160N21CHC (961380005-01) - Poulan Pro Walk-Behind Mower (2009-01) > Parts Diagrams (1) > Product Complete

  • Title
194177X428

1

Control Bar

Part# 194177X428

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $8.93

194179X479

2

Upper Handle

Part# 194179X479

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $22.35

169708X479

3

Lower Handle

Part# 169708X479

OEM Warranty Repair Part for Electrolux/AYP

Not available

194788

4

Rope Guide

Part# 194788 (Superseded to 586122501)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $13.41

132004

5

Nut, Hex

Part# 132004

OEM Warranty Repair Part for Electrolux/AYP

Not available

191574

6

Handle Bolt

Part# 191574 (Superseded to 532191574)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

66426

7

Wire Tie

Part# 66426 (Superseded to 532007192)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

74780512

8

Bolt, Hex Head 5/16-18 x 3/4

Part# 74780512 (Superseded to 874780512)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.23

154132

9

Hinge Bracket

Part# 154132

OEM Warranty Repair Part for Electrolux/AYP

Not available

165754

10

Mulcher Door

Part# 165754

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

176556

11

Engine Zone Control Cable

Part# 176556

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $11.17

750634

12

Hex Washer Head Screw #10-24 x 1/2

Part# 750634 (Superseded to 532750634)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

86899X004

13

Up-Stop Bracket

Part# 86899X004

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

189713X428

14

Handle Knob

Part# 189713X428

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.23

51793

15

Hairpin Cotter

Part# 51793 (Superseded to 532051793)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

17600406

18

Screw

Part# 17600406 (Superseded to 817600406)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

401174X004

19

Axle Arm Assembly, Front, LH

Part# 401174X004

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

401175X004

20

Axle Arm Assembly, Front, RH

Part# 401175X004

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

418655

21

Kit, Rear Skirt

Part# 418655

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $11.17

401621X004

22

Selector Spring, Front

Part# 401621X004

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

401814X428

23

Rear Door Assembly

Part# 401814X428

OEM Warranty Repair Part for Electrolux/AYP

Not available

410385X479

25

Handle Bracket, LH

Part# 410385X479

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $10.61

410386X479

26

Handle Bracket, RH

Part# 410386X479

OEM Warranty Repair Part for Electrolux/AYP

Not available

407494X005

29

Wheel Adjusting Bracket

Part# 407494X005

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

401629

30

Spacer

Part# 401629

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

165760

31

Discharge Deflector

Part# 165760

OEM Warranty Repair Part for Electrolux/AYP

Not available

401624X004

32

Selector Spring, Rear

Part# 401624X004

OEM Warranty Repair Part for Electrolux/AYP

Not available

701037X421

33

Selector Knob

Part# 701037X421

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

401176X004

34

Axle Arm Assembly, Rear, LH

Part# 401176X004

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

166785

35

Locknut, Hex 5/16-18

Part# 166785

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $18.90

401638

36

Shoulder Bolt 5/16-18

Part# 401638

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

193909X421

37

Wheel & Tire Assembly, Front, 8"

Part# 193909X421

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $13.41

409149

39

Nut, Hex

Part# 409149

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.78

411949

40

Frame, Grassbag

Part# 411949

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $31.29

88652

41

Screw, Hinge

Part# 88652 (Superseded to 532088652)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

405421

42

Spring, LH

Part# 405421

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

405423

43

Spring, RH

Part# 405423

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

184193

44

Bolt, Rear Door

Part# 184193 (Superseded to 532184193)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

150406

45

Hex Head Thread Rolling Screw 3/8-16 x 1

Part# 150406 (Superseded to 532150406)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

404763

46

Danger Decal

Part# 404763

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.85

751153

47

Nut, Hex

Part# 751153 (Superseded to 532426589)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

401177X004

48

Axle Arm Assembly, Rear, RH

Part# 401177X004

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $5.58

193906X421

49

Wheel & Tire Assembly, Rear 12 x 1-3/4

Part# 193906X421

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $27.94

411060

50

Grassbag

Part# 411060

OEM Warranty Repair Part for Electrolux/AYP

Not available

147286

51

Hinge Rod

Part# 147286

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

413980

52

Kit, Housing

Part# 413980

Note: (Includes #46)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $93.34

851084

53

Screw, Hex Head, Grade 8 3/8-24 x 1-3/8

Part# 851084 (Superseded to 532851084)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

850263

54

Helical Lockwasher

Part# 850263 (Superseded to 532850263)

OEM Warranty Repair Part for Electrolux/AYP

Not available

851074

55

Hardened Washer

Part# 851074 (Superseded to 532851074)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.78

406712

56

21" Blade

Part# 406712

OEM Warranty Repair Part for Electrolux/AYP

Not available

420097

57

Blade Adapter

Part# 420097

OEM Warranty Repair Part for Electrolux/AYP

Not available

152124

58

Hinge Spring

Part# 152124

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

59

Engine, Honda, Model Number GCV160-LAS3A

Part#

Note: (For engine service and replacement parts,F91 call Honda Engines at 1-800-426-7701)

Not available

409148

61

Flanged Locknut

Part# 409148

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

73800400

62

Nut, Hex

Part# 73800400 (Superseded to 873800400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

88348

65

Washer, Flat

Part# 88348

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

197480

66

O-Ring

Part# 197480 (Superseded to 532197480)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

197991

67

Clip, Cable

Part# 197991 (Superseded to 532197991)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

401630

73

Washer, Curved, Cylindrical

Part# 401630

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

851201X004

74

Washer, Special, Engine

Part# 851201X004

OEM Warranty Repair Part for Electrolux/AYP

Not available

413693

75

Kit, Rear Baffle

Part# 413693

Note: (Includes 3 Screws)

OEM Warranty Repair Part for Electrolux/AYP

Not available

410589

76

Baffle, Rear

Part# 410589

OEM Warranty Repair Part for Electrolux/AYP

Not available

17411312

77

Screw, Rear Baffle

Part# 17411312

OEM Warranty Repair Part for Electrolux/AYP

Not available

404764

77

Warning Decal

Part# 404764

Note: (not shown)

OEM Warranty Repair Part for Electrolux/AYP

Not available

193732

77

Operator's Manual, English

Part# 193732

OEM Warranty Repair Part for Electrolux/AYP

Not available

193734

77

Operator's Manual, French

Part# 193734

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $27.37

424615

77

Repair Parts Manual

Part# 424615

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.42
