PR 173Y22RP (961420071-00) - Poulan Pro Walk-Behind Mower (2010-02) Drive Parts Diagram

Walk-Behind Mower

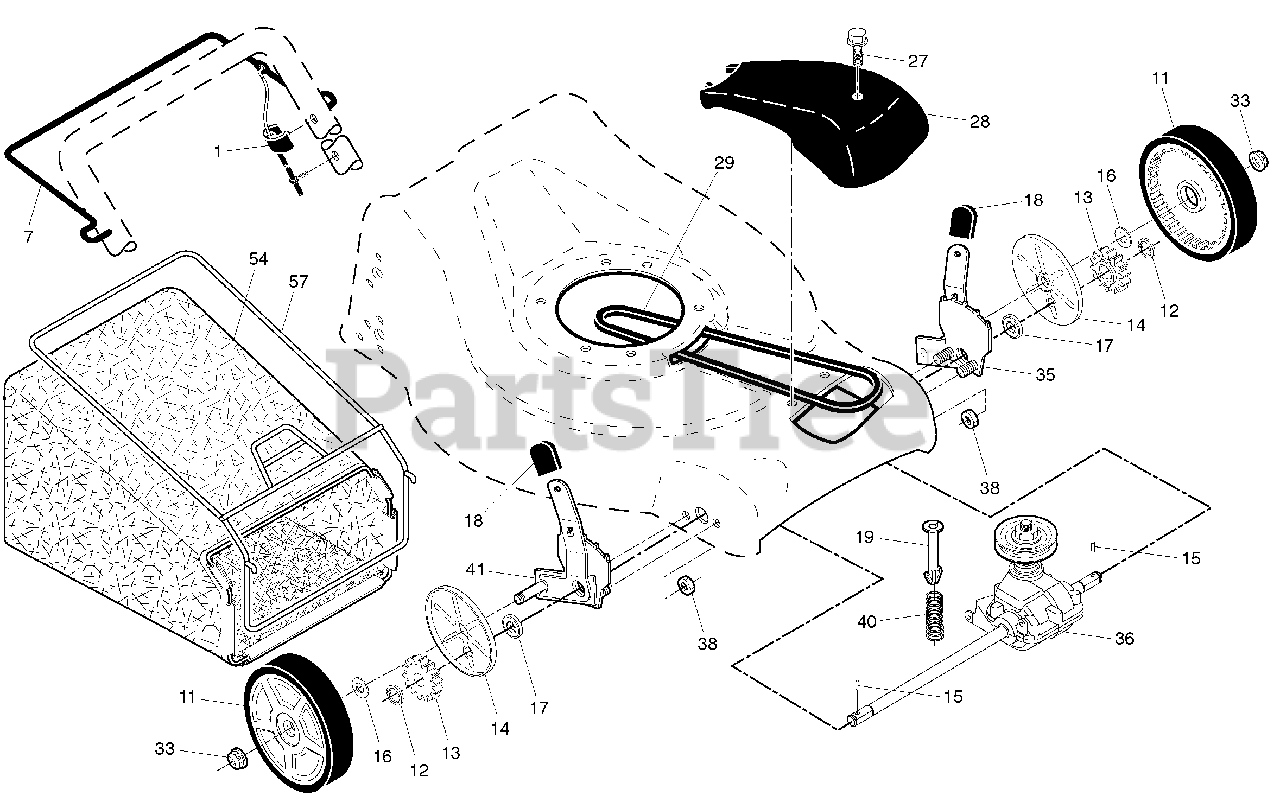

Drive Parts Diagram

  • Title

1

Electrolux/AYP 194653

Cable Assembly, Drive Control
(Superseded to 532194653)

$26.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 150495

Spring Retainer
(Superseded to 532150495)

$7.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 194185X421

Control Bar, Drive
(Superseded to 532435281)

$12.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 193912X428

Wheel & Tire Assembly
(Superseded to 581009201)

$34.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 12000058

E-Ring
(Superseded to 812000058)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 403849

Pinion
(Superseded to 532403849)

$6.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 189403

Dust Cover
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 404845

Pawl, Drive
(Superseded to 532404845)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 67725

Washer 1/2 x 1-1/2 x .134
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

17

Electrolux/AYP 421836

Bearing Assembly, Wheel Adjuster
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 701037X421

Selector Knob
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 175262

Pan Head Tapping Screw #10-24 x 2-3/4
(Superseded to 532175262)

$7.49

$

In Stock, only 4 left!

0

28

Electrolux/AYP 194404X428

Drive Cover
(Superseded to 532437165)

$15.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 175436

V-Belt
(Superseded to 532175436)

$24.99

$

In Stock, Qty 12

0

33

Electrolux/AYP 409148

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 424201

Kit, Wheel Adjuster, LH
(Superseded to 532438485)

Note: (Includes Knob and Bearing)

$44.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 415225

Gear Case Assembly, Complete
(Superseded to 532415225)

$109.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 73800400

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 137090

Spring
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 424200

Kit, Wheel Adjuster, RH
(Superseded to 532438486)

Note: (Includes Knob and Bearing)

$44.99

$

In Stock, only 3 left!

0

54

Electrolux/AYP 411063

Grassbag Assembly

$

$

Not available

57

Electrolux/AYP 411950

Frame, Grassbag
(Superseded to 532411950)

$

$

Not available
