PR 1842ST D - Poulan Pro Lawn Tractor (2002) Electrical Parts Diagram

Lawn Tractor

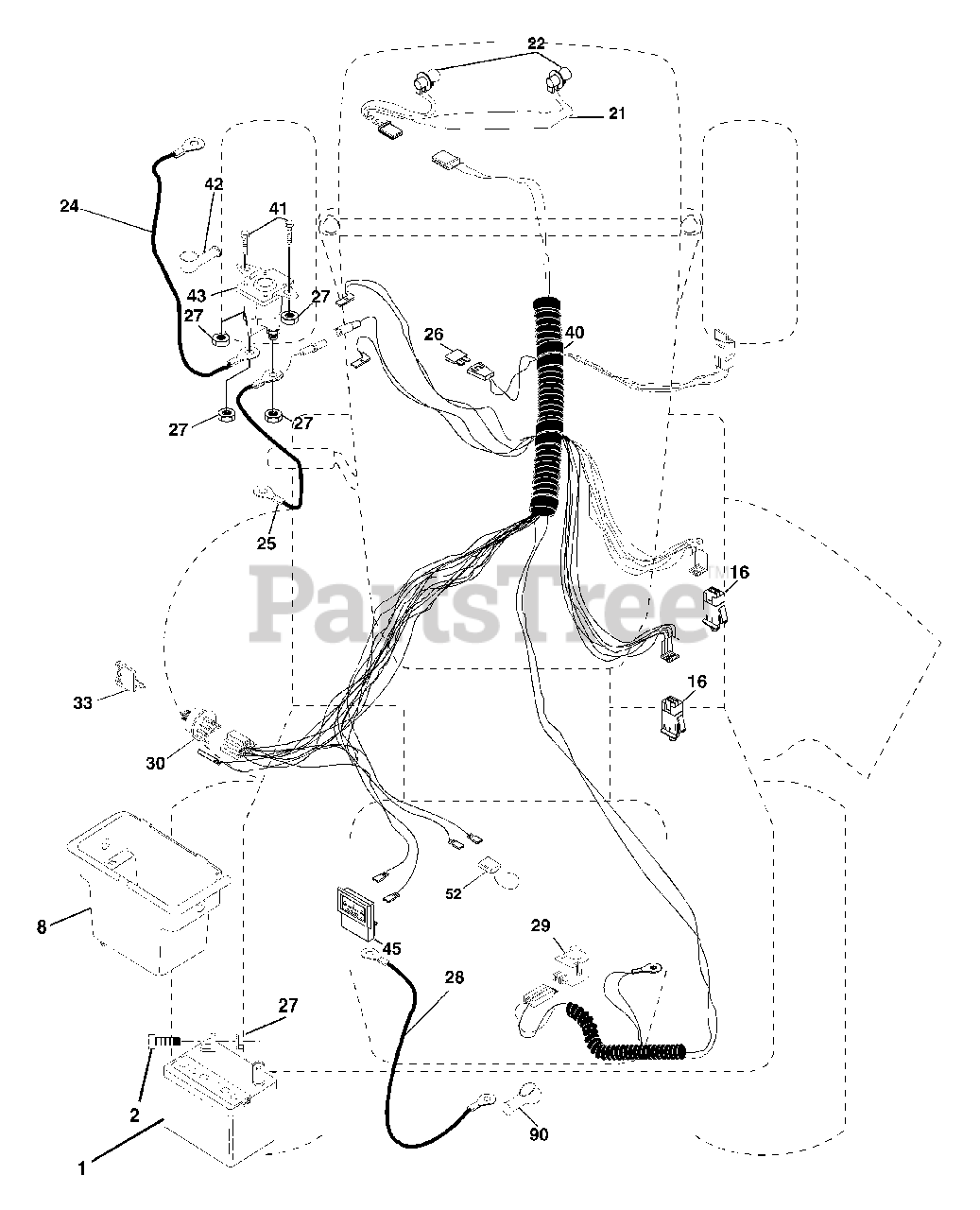

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 163465

Battery
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 74760412

Bolt Hex Hd 1/4-20unc X 3/4
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

8

Electrolux/AYP 176689

Battery Box
(Superseded to 532176689)

$10.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 176138

Switch Interlock Push-In
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 175685

Harness Socket Light
(Superseded to 532175685)

$

$

Not available

22

Electrolux/AYP 4152J

Bulb, Light # 1156
(Superseded to 532004152)

$4.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 4799J

Cable Battery
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146147

Cable Battery 6 Ga Red w/16 wire
(Superseded to 532146147)

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse
(Superseded to 532175158)

$7.49

$

In Stock, Qty 12

0

27

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 4207J

Cable Ground 6ga 12 black
(Superseded to 532004207)

$8.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 121305X

Switch Plunger Nc Gray
(Superseded to 532421062)

$10.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 175566

Switch Ign
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 140401

Key Ign Molded Generic
(Superseded to 532140401)

$6.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 179720

Harness Ign
(Superseded to 532179720)

$120.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 71110408

Bolt Fin Hex 1/4-20uncx 1/2
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 122822X

Ammeter Rectangular
(Superseded to 532122822)

$18.99

$

In Stock, only 1 left!

0

52

Electrolux/AYP 141940

Protection Loop
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 180449

Cover Terminal

$2.99

$

Usually ships in 3-10 days

0
