PR 18542ST B - Poulan Pro Lawn Tractor (2000) Mower Deck Parts Diagram

Lawn Tractor

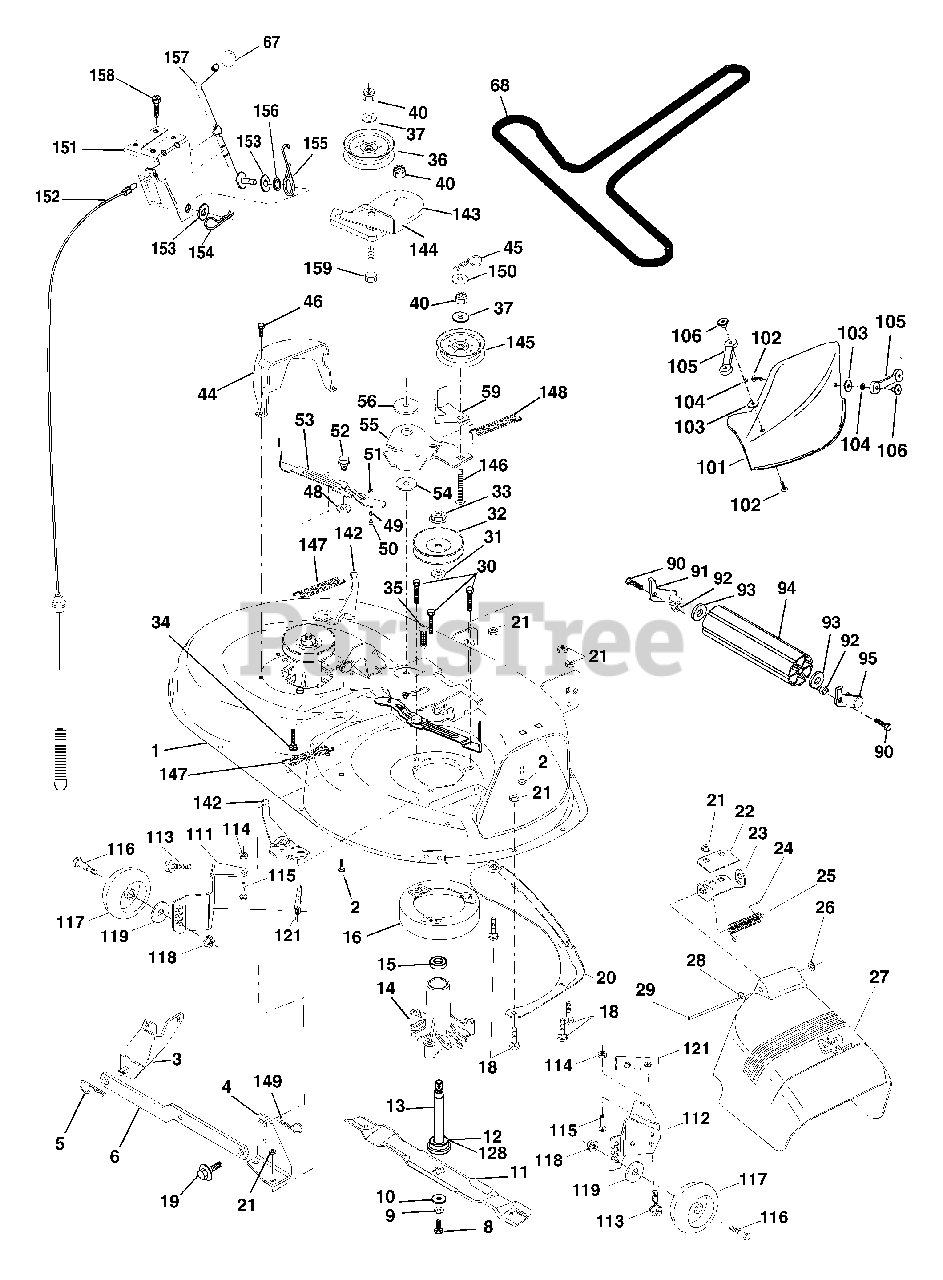

Mower Deck Parts Diagram

  • Title
1

Electrolux/AYP 165892X421

Mower Deck Assembly, 42"

$

$

Not available

2

Electrolux/AYP 72140506

Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

Bracket Asm Fr. Sway Bar 3/42
(Superseded to 532138017)

$12.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 165460X421

Bracket Asm Deck 42" Sway Bar

$

$

Not available

5

Murray 4939M

Retainer Spring

$

$

Not available

6

Electrolux/AYP 130832

Arm, Suspension, Rear
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

Bolt 3/8-24 x 25 Grade 8 patched
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 10030600

Washer, Lock
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

Washer, Hardened
(Superseded to 532140296)

$6.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 134149

Blade, Mulching 42"
(Superseded to 532134149)

$15.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 138498

Blade Mower 42" Hi-Lift
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 129895

Bearing, Ball #6204
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137645

Shaft Assembly, Mandrel, Vented
(Superseded to 532137645)

$34.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 128774

Housing, Mandrel, Vented
(Superseded to 532128774)

$34.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 140329

Stripper, Vented Mower Deck
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

Bolt, Shoulder
(Superseded to 532132827)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 159770

Baffle, Vortex
(Superseded to 532159770)

$

$

Not available

21

Murray 73680500

Nut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 134753X421

Stiffener Bracket

$

$

Not available

23

Electrolux/AYP 131267X421

Bracket, Deflector Mower 42"

$

$

Not available

24

Electrolux/AYP 105304X

Cap, Sleeve 80 x 112 Blk Mower
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

Spring, Torsion, Deflector 2 52
(Superseded to 532123713)

$7.99

$

In Stock, only 4 left!

0

26

Electrolux/AYP 110452X

Nut, Push Phos & Oil
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 130968X428

Shield, Deflector 42" Blk
(Superseded to 532130968)

$39.99

$

In Stock, Qty 16

0

28

Electrolux/AYP 19111016

Washer 11/32 x 5/8 x 16 Gauge
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 131491

Rod, Hinge 42" 6 75 W/G
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 157722

Screw Thdrol Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 129963

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 7

0

32

Electrolux/AYP 173436

Pulley, Mandrel
(Superseded to 532173436)

$17.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 137266

Nut, Toplock 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 72110614

Bolt
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

35

Electrolux/AYP 133835

Fastener, Christmas Tree
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 173438

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

37

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 73680600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 140088

Guard, Mandrel, LH
(Superseded to 532140088)

$34.99

$

In Stock, Qty 10

0

45

Electrolux/AYP 4497H

Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 13

0

46

Electrolux/AYP 137729

Screw, Thdrol 1/4-20 x 5/8 T
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 133944

Washer, Hardened
(Superseded to 532133944)

$6.49

$

In Stock, only 1 left!

0

49

Electrolux/AYP 155066

Roller Assembly, Cam Follower
(Superseded to 532174284)

$10.99

$

In Stock, only 4 left!

0

50

Electrolux/AYP 131340

Bolt, Shoulder #10-24 Grade 5
(Superseded to 532131340)

$

$

Not available

51

Electrolux/AYP 69180

Locknut
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 139888

Bolt, Shoulder 5/16-18 UNC
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

53

Electrolux/AYP 131845

Arm Assembly, Pad, Brake
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 133943

Washer, Hardened
(Superseded to 532178515)

$6.99

$

In Stock, only 2 left!

0

55

Electrolux/AYP 155046X421

Arm, Idler
(Superseded to 532155046)

$15.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 122052X

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 173442

Guard TUV Idler

$

$

Not available

67

Electrolux/AYP 171598

Knob
(Superseded to 532171598)

$

$

Not available

68

Electrolux/AYP 144959

V-Belt, 42" Mower
(Superseded to 532144959)

$43.99

$

In Stock, Qty 20+

0

90

Electrolux/AYP 74760616

Bolt Fin Hex 3/8-16 Unc x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 132274

Bracket Asm. Noseroller LH
(Superseded to 532175746)

$7.49

$

In Stock, Qty 6

0

92

Electrolux/AYP 73800600

Nut, Lock, Hex W/Ins 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 19171416

Washer 17/32 x 7/8 x 16 Ga.
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

94

Electrolux/AYP 132264

Roller, Nose

$

$

Not available

95

Electrolux/AYP 132273

Bracket Asm. Noseroller RH
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 136420

Mulcher Cover
(Superseded to 954040501)

$29.99

$

In Stock, only 2 left!

0

102

Electrolux/AYP 71161010

Screw
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 19061216

Washer, Flat
(Superseded to 819061216)

$4.99

$

In Stock, only 3 left!

0

104

Electrolux/AYP 10071000

Washer, Lock
(Superseded to 810071000)

$4.99

$

In Stock, Qty 16

0

105

Electrolux/AYP 160793

Latch Assembly
(Superseded to 532160793)

$

$

Not available

106

Electrolux/AYP 2029J

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

111

Electrolux/AYP 155197X421

Bracket, Gauge, Wheel LH
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Electrolux/AYP 155198X421

Bracket, Gauge, Wheel RH
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 17060512

Screw 5/16 - 18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 73510500

Nut, Keps 5/16 - 18 UNC

$2.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 72110504

Bolt, Carriage 5/16-18 x 1/2
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 4898H

Bolt, Shoulder
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Electrolux/AYP 165746

Wheel, Gauge
(Superseded to 532165746)

$

$

Not available

118

Electrolux/AYP 73930600

Nut Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 173986

Bracket, Extruded

$

$

Not available

128

Electrolux/AYP 153390

Washer, Felt
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

142

Electrolux/AYP 165890

Arm Spring Brake Mower
(Superseded to 532165890)

$4.99

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 157109X421

Bracket Arm Idler 42"
(Superseded to 532157109)

$6.49

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 173441

Keeper Belt 42" Clutch Cable
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

145

Electrolux/AYP 173437

Pulley Idler Flat
(Superseded to 532173437)

$28.99

$

In Stock, only 2 left!

0

146

Electrolux/AYP 173439

Bolt Carriage Idler
(Superseded to 583058901)

$6.49

$

Usually ships in 3-10 days

0

147

Electrolux/AYP 131335

Spring Extension
(Superseded to 532179748)

$5.99

$

In Stock, Qty 15

0

148

Electrolux/AYP 169022

Spring Return Idler
(Superseded to 532169022)

$5.99

$

In Stock, Qty 5

0

149

Electrolux/AYP 165898

Retainer Spring Yellow
(Superseded to 532165898)

$7.49

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 19091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

151

Electrolux/AYP 169670

Bracket Clutch Cable
(Superseded to 532169670)

$

$

Not available

152

Murray 169676

Clutch Cable 42"
(Superseded to 532175067)

$45.99

$

In Stock, Qty 9

0

153

Electrolux/AYP 169674

Washer Flat 3/8" Type B
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Electrolux/AYP 169675

Spring Retainer
(Superseded to 532169675)

$7.49

$

In Stock, only 4 left!

0

155

Electrolux/AYP 169671

Spring Retention LVR CLTCH CAB
(Superseded to 532169671)

$6.49

$

In Stock, only 3 left!

0

156

Electrolux/AYP 169672

Spacer Clutch Cable
(Superseded to 532169672)

$6.49

$

Usually ships in 3-10 days

0

157

Electrolux/AYP 169669

Rod Clutch Cable 3/8"
(Superseded to 532169669)

$

$

Not available

158

Electrolux/AYP 17720410

Screw Hex Thd Cut 1/4-20 x 5/8
(Superseded to 817720410)

$

$

Not available

159

Electrolux/AYP 72140614

Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 130794

Mandrel Assembly
(Superseded to 532130794)

Note: (Includes Key Numbers 8-10, 12-15, 31 and 33)

$56.99

$

In Stock, Qty 9

0

Electrolux/AYP 172559

Mower Deck, Complete
(Superseded to 532169583)

Note: (Standard Deck - Order separately mulcher plate and gauge wheel components Key Nos. 101-106, and 111-121)

$848.99

$

Usually ships in 3-10 days

0
