PR 185H42ST A - Poulan Pro Lawn Tractor (2000) Engine Parts Diagram

Lawn Tractor

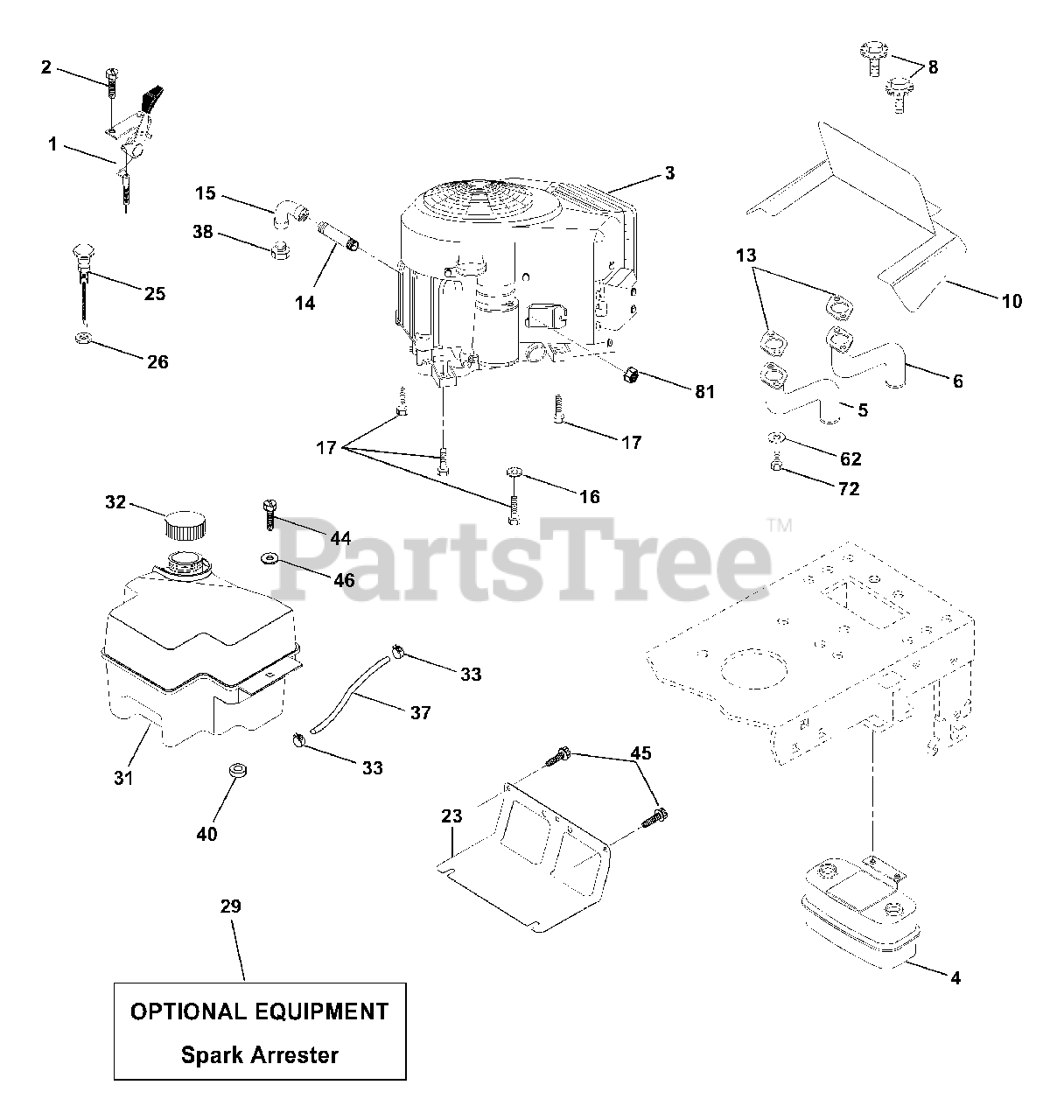

Engine Parts Diagram

  • Title

1

Electrolux/AYP 148875

Control, Throttle
(Superseded to 532170771)

$

$

Not available

2

Electrolux/AYP 17720410

Screw Hex Thd Cut 1/4-20 x 5/8
(Superseded to 817720410)

$

$

Not available

3

Engine Briggs Model 407777

Note: (Order Parts from Engine Mfg.)

$

$

Not available

4

Electrolux/AYP 149723

Muffler, Asm. Twin Lo-Tone
(Superseded to 532149723)

$53.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 160589

Pipe Exhaust Intek 20 RH
(Superseded to 581881001)

$29.99

$

In Stock, only 3 left!

0

6

Electrolux/AYP 159955

Pipe Exhaust Intek 20 LH
(Superseded to 581881101)

$35.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 150176

Bolt 5/16-18 UNC x 3/4
(Superseded to 532149741)

$5.99

$

In Stock, Qty 10

0

10

Electrolux/AYP 162797

Shield Browing B&S Intek II
(Superseded to 532434017)

$

$

Not available

13

Electrolux/AYP 165391

Muffler Gasket
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 13280336

Nipple, Pipe
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 13200300

Elbow, Standard 90°, 3/8-18 NPT
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 11050600

Washer, Lock Ext tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 817060624)

$5.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 169837

Shield, Browning/Debris Guard
(Superseded to 532169837)

$

$

Not available

25

Electrolux/AYP 145996

Control Choke
(Superseded to 532145996)

$

$

Not available

26

Electrolux/AYP 73920600

Nut Keps 3/8-24 UNF
(Superseded to 873920600)

$

$

Not available

29

Electrolux/AYP 137180

Arrester, Spark
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 161911

Tank, Fuel
(Superseded to 532180645)

$

$

Not available

32

Electrolux/AYP 140527

Cap Gauge, Fuel
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

33

Electrolux/AYP 123487X

Clamp, Hose Blk
(Superseded to 532123487)

$3.99

$

In Stock, Qty 11

0

37

Electrolux/AYP 137040

Line, Fuel 7.5
(Superseded to 532137040)

$

$

Not available

38

Plug, Oil Drain

Note: (Order from engine mfg.)

$

$

Not available

40

Murray 124028X

Bushing Snap Nyl Blk Fuel Line

$

$

Not available

44

Electrolux/AYP 17670412

Screw Hex Wsh Thdrol 1/4-20 x 3/4
(Superseded to 817670412)

$4.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$

$

Not available

62

Electrolux/AYP 10040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 810040500)

$

$

Not available

72

Electrolux/AYP 71070512

Screw Hex Hd Cap 5/16-18 x 3/4
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

81

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available
