PR 2042ST A - Poulan Pro Lawn Tractor (2000) Seat Assembly Parts Diagram

Lawn Tractor

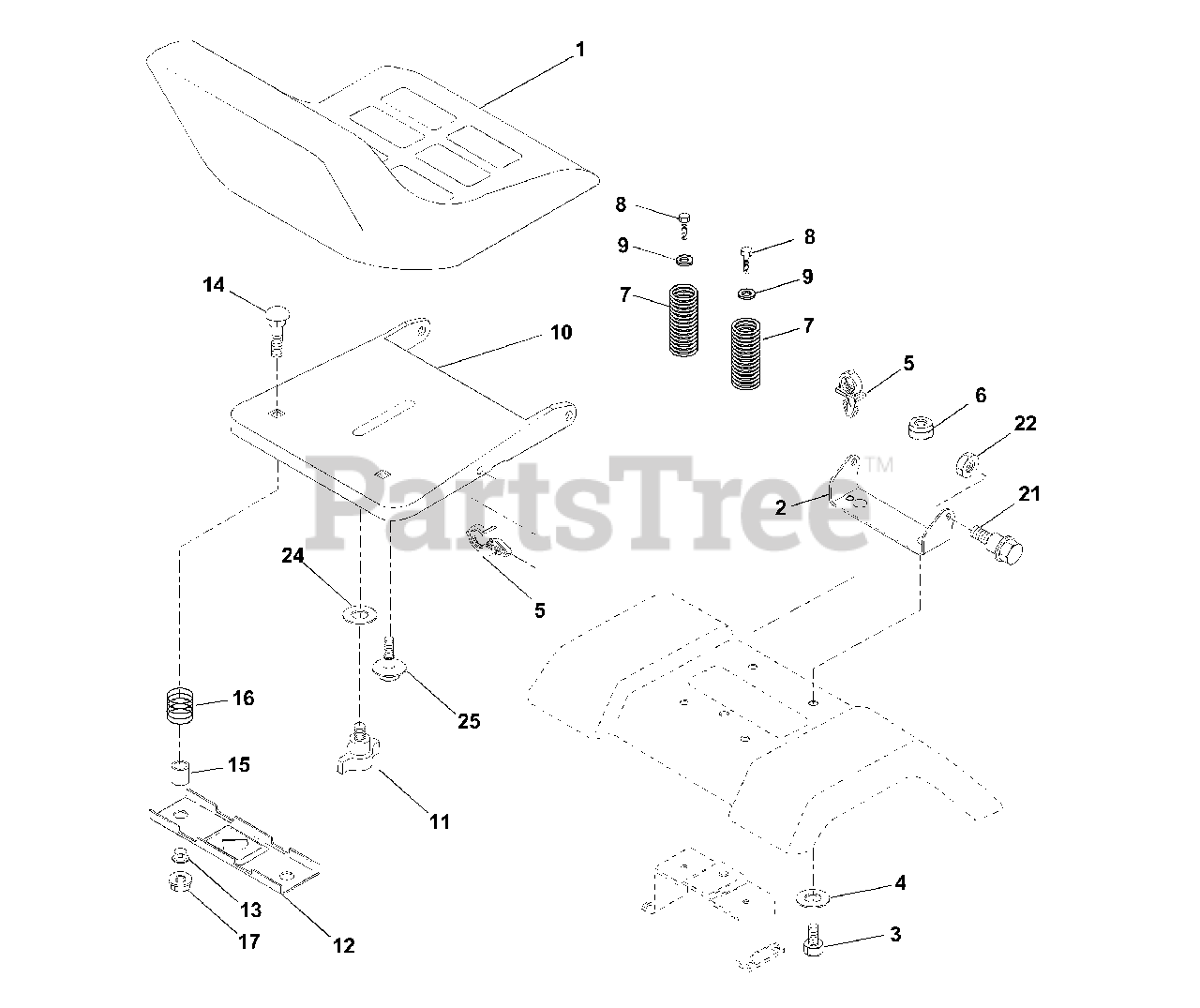

Seat Assembly Parts Diagram

  • Title

1

Electrolux/AYP 171683

Seat
(Superseded to 532401043)

$

$

Not available

2

Electrolux/AYP 140551

Bracket Pivot Seat 8 720
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 71110616

Bolt Fin Hex 3/8-16 Unc X 1
(Superseded to 871110616)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 19131610

Washer 13/32 X 1 X 10 Ga
(Superseded to 819131610)

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 145006

Clip Push-In
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

Nut Hex w/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124181X

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 17000616

Screw 3/8-16 X 1.5
(Superseded to 817000616)

$7.49

$

In Stock, Qty 8

0

9

Murray 19131614

Washer 13/32 X 1 X 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 155925

Pan Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 166369

Knob Seat
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 121246X

Bracket Mounting Switch
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 121248X

Bushing Snap Blk Nyl 50 Id
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 72050412

Bolt Rdhd Sqnk 1/4-20x1-1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 134300

Spacer Split 28x 88
(Superseded to 532134300)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 121250X

Spring Cprsn
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 123976X

Nut Lock 1/4 Lge Flg Gr 5 Zinc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 171852

Bolt Shoulder 5/16-18 Unc
(Superseded to 532171852)

$4.99

$

In Stock, Qty 14

0

22

Electrolux/AYP 73800500

Nut Hex Lock W/Ins 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 19171912

Washer 17/32 X 1-3/16 X 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 127018X

Bolt Shoulder 5/16-18 X 62
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0
