PR 2042ST A - Poulan Pro Lawn Tractor (2000) Steering Assembly Parts Diagram

Lawn Tractor

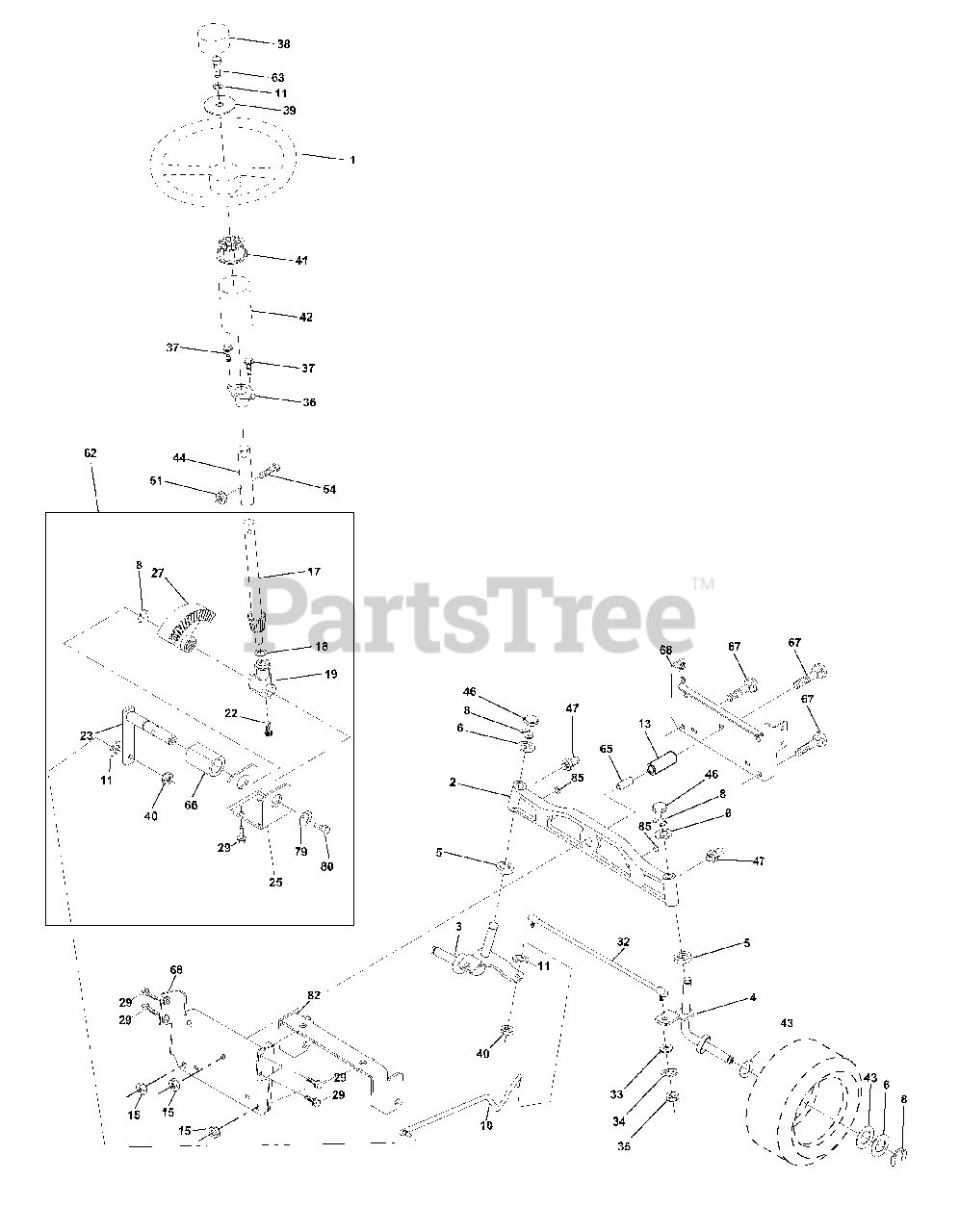

Steering Assembly Parts Diagram

  • Title

1

Electrolux/AYP 159944X428

Wheel Steering
(Superseded to 532166627)

$

$

Not available

2

Electrolux/AYP 165854

Axle Asm Stmp Dropped STLT
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 169840

Spindle Asm LH
(Superseded to 596873901)

$18.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 169839

Spindle Asm RH
(Superseded to 596873801)

$17.99

$

In Stock, Qty 12

0

5

Electrolux/AYP 6266H

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 121748X

Washer 25/32 X 1-5/8 X 16 Ga
(Superseded to 532121748)

$3.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 12000029

Ring Klip #t5304-75
(Superseded to 812000029)

$3.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 169832

Link Drag
(Superseded to 532169832)

$80.99

$

In Stock, Qty 5

0

11

Electrolux/AYP 10040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 136518

Spacer Brg. Axle Front
(Superseded to 532136518)

$9.99

$

In Stock, only 4 left!

0

15

Murray 145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 156546

Shaft Asm Strg
(Superseded to 532156546)

$35.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 57079

Washer Thrust 515x 750x 033
(Superseded to 532057079)

$6.49

$

In Stock, Qty 20+

0

19

Electrolux/AYP 160395

Support Shaft
(Superseded to 532160395)

$9.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 165857

Screw Hex Wsh Hd Torx
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

23

Electrolux/AYP 165851

Shaft Asm Pittman
(Superseded to 532165851)

$

$

Not available

25

Electrolux/AYP 154406

Bracket Steering
(Superseded to 532154406)

$8.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 136874

Gear Sector
(Superseded to 532136874)

$80.99

$

In Stock, Qty 7

0

28

Electrolux/AYP 19131416

Washer 13/32 x 7/8 x 16 Ga.
(Superseded to 819131414)

$6.49

$

In Stock, Qty 5

0

29

Electrolux/AYP 17060612

Screw 3/8-16x.75
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 171888

Rod Tie
(Superseded to 532171888)

$60.99

$

In Stock, Qty 9

0

33

Electrolux/AYP 19111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 10040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 73540500

Crownlock Nut 5/16-24
(Superseded to 873540500)

$7.49

$

In Stock, Qty 5

0

36

Murray 155099

Bushing Strg
(Superseded to 532155106)

$9.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 152927

Screw
(Superseded to 532152927)

$7.49

$

In Stock, Qty 19

0

38

Electrolux/AYP 159946X428

Insert Cap Strg Wh Au
(Superseded to 532172092)

$17.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 19132411

Washer 13/32 X 2-3/8 X 12 Ga
(Superseded to 819132411)

$2.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 7810H

Lock nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 159945

Adaptor Wheel Strg
(Superseded to 532159945)

$

$

Not available

42

Electrolux/AYP 145054X428

Boot Steering Dash
(Superseded to 532169633)

$6.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 121749X

Washer 25/32 X 1 1/4 X 16 Ga
(Superseded to 532121749)

$3.49

$

In Stock, Qty 20+

0

44

Electrolux/AYP 153720

Extension Steering Shaft LR/LT
(Superseded to 532153721)

$

$

Not available

46

Electrolux/AYP 121232X

Cap Spindle Fr Top Blk
(Superseded to 532121232)

$3.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 6855M

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

51

Electrolux/AYP 73800500

Nut Lock Hex w/Ins 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 74780520

Bolt Fin Hex 5/16-18 Unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 167902

Kit, Steering Assembly Svc
(Superseded to 584371701)

$133.99

$

In Stock, only 1 left!

0

63

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 160367

Brace Axle
(Superseded to 532414736)

$6.49

$

In Stock, Qty 11

0

66

Electrolux/AYP 154404

Bearing Arm Pittman
(Superseded to 532154404)

$6.49

$

In Stock, Qty 5

0

67

Electrolux/AYP 72140618

Bolt Rdhd Sq 3/8-16 Unc x 2-1/4
(Superseded to 872110618)

$6.49

$

In Stock, only 1 left!

0

68

Electrolux/AYP 169827

Axle, Brace
(Superseded to 532169827)

$21.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 19132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 74950612

Bolt Hex Nylon 3/8-16 x 3/4
(Superseded to 874950612)

$6.49

$

In Stock, only 3 left!

0

82

Electrolux/AYP 169835

Bracket Susp. Chassis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 133835

Fastener Christmas Tree
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0
