PR 22 WT (961720015-01) - Poulan Pro Wheeled Trimmer (2016-01) COVER Parts Diagram

Wheeled Trimmer

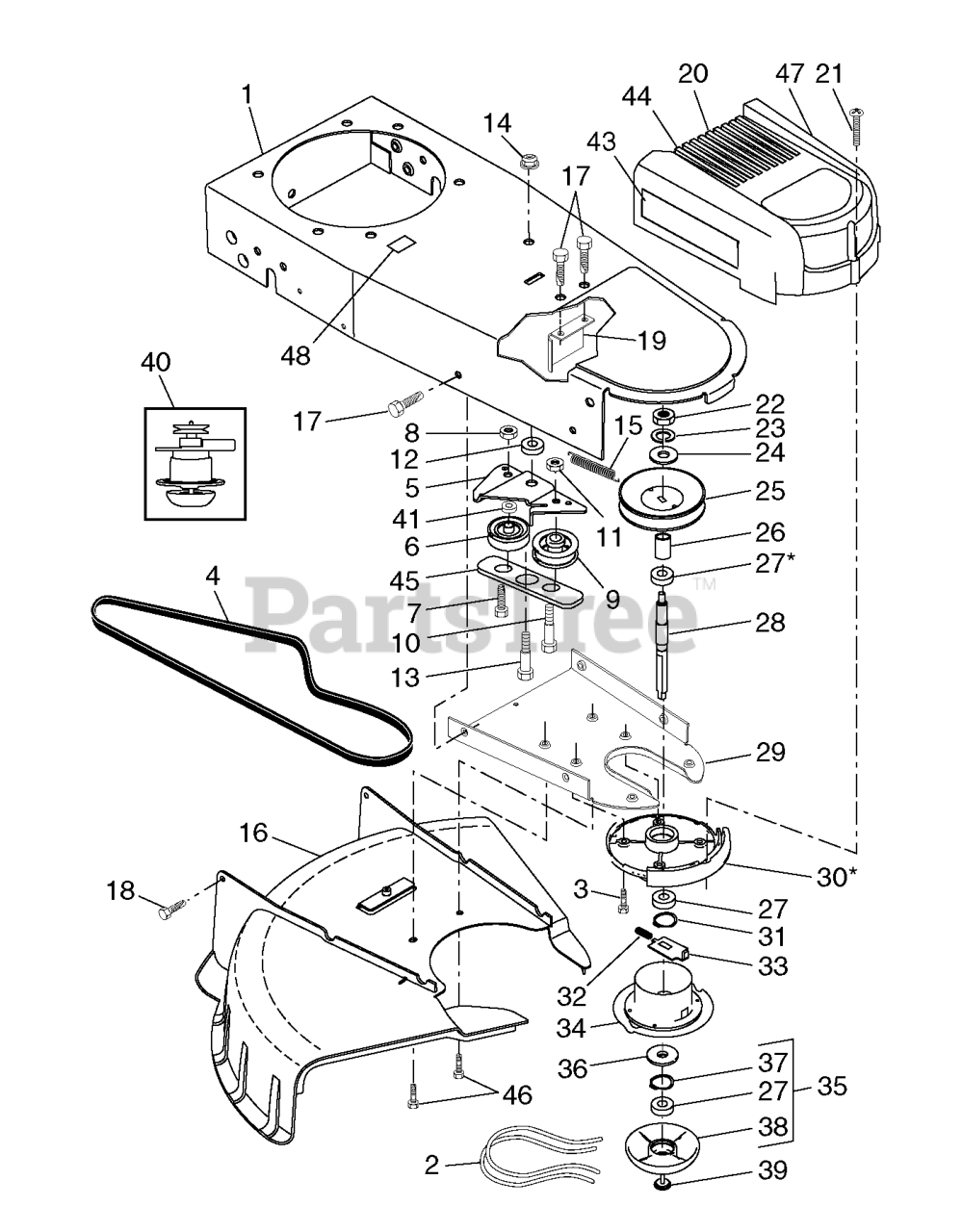

COVER Parts Diagram

  • Title

1

Poulan 581708382

HOUSING.CHASSIS.ASM.MID

$

$

Not available

2

Poulan 532182219

LINE.BUND.18PC

$23.99

$

In Stock, only 4 left!

0

3

Poulan 532173715

SCREW

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 532185476

BELT-V.STRING TRIMMER.

$30.99

$

In Stock, Qty 14

0

5

Poulan 586909102

Idler Bracket, 004 15 String Trimmer

$3.49

$

Usually ships in 3-10 days

0

6

Poulan 532166042

PULLEY.V-GROOVE.IDLER

$26.99

$

In Stock, only 3 left!

0

7

Poulan 532173716

(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

8

Poulan 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 532166043

IDLER PULLEY

$31.99

$

In Stock, Qty 6

0

10

Poulan 532160829

SHOULDER BOLT

$7.49

$

In Stock, only 2 left!

0

11

Poulan 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

12

Poulan 532173717

SPACER.IDLER.BRACKET

$

$

Not available

13

Poulan 532174719

BOLT SHOULDER 3/8 -16X1

$7.49

$

In Stock, only 4 left!

0

14

Poulan 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

15

Poulan 532173811

SPRING.RETURN.WHEELED.TRIMMER

$7.49

$

In Stock, only 2 left!

0

16

Poulan 584953201

Trimmer Deflector, Bottom HW

$

$

Not available

17

Poulan 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 2 left!

0

18

Poulan 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

19

Poulan 586916602

KEEPER.BELT.STRING.TRIM.BZP.15

$

$

Not available

20

Poulan 581819302

COVER.CHASIS.STRIM.POU PRO.E/F

$

$

Not available

21

Poulan 532149746

SCREW.SLOT.TORX.

$7.49

$

In Stock, only 1 left!

0

22

Poulan 873610600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 532850263

(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

24

Poulan 819121214

WASHER, FLAT 3/8
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

25

Poulan 532180340

PULLEY.SPINDLE.WHEELED.TRIMMER

$40.99

$

In Stock, only 3 left!

0

26

Poulan 532172551

SPACER, PULLEY

$7.49

$

Usually ships in 3-10 days

0

27

Poulan 532174549

Spindle Bearing
(Superseded to 532110485)

$10.99

$

In Stock, Qty 20+

0

28

Poulan 532172520

JACKSHAFT.WHEELED.TRIMMER

$66.99

$

In Stock, Qty 8

0

29

Poulan 532186752

CHASSIS.COVER.BOTTOM.BLACK

$

$

Not available

30

Poulan 532174543

SPINDLE HOUSING ASSEMBLY

Note: . 27

$66.99

$

In Stock, only 1 left!

0

31

Poulan 532174581

RING, RETAINING, EXTERNAL,

$7.49

$

In Stock, only 2 left!

0

32

Poulan 532173973

SPRING.1.5".COMPRESSION

$18.99

$

In Stock, only 4 left!

0

33

Poulan 532172519

PLATE.LOCKING.WHEELED.TRIMMER

$7.49

$

In Stock, Qty 10

0

34

Poulan 532180338

CARRIER PLATE ASSEMBLY
(Superseded to 594935003)

$74.99

$

In Stock, Qty 20+

0

35

Poulan 532182217

MOW BALL ASSEMBLY

Note: . 27 37 38

$29.99

$

In Stock, Qty 20+

0

36

Poulan 532172516

COVER, BEARING

$8.99

$

In Stock, Qty 8

0

37

Poulan 532174580

RING, RETAINING, INTERNAL,

$9.99

$

In Stock, Qty 5

0

38

Poulan 532172523

MOW BALL
(Superseded to 532180337)

$26.99

$

In Stock, Qty 15

0

39

Poulan 532180334

BOLT, MOW BALL

$12.99

$

In Stock, Qty 20+

0

40

Poulan 532180333

ASM.ADJUSTABLE.SPINDLE.WHLD.TR
(Superseded to 596878501)

Note: . 22-28 30-39

$133.99

$

In Stock, Qty 13

0

41

Poulan 532174029

SPACER (2 2MC)

$

$

Not available

43

Poulan 532174042

Instruction Panel Decal

$8.99

$

Usually ships in 3-10 days

0

44

Poulan 584990601

DECAL.TRIMMER.WARNING.CE

$

$

Not available

45

Poulan 532186753

BRACKET.BELT.KEEPER.BLACK

$6.49

$

Usually ships in 3-10 days

0

46

Poulan 817060408

SCREW

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 532182205

DECAL.INSTRUCTION.CE.TRIM.STRG
(Superseded to 532174036)

$

$

Not available
