PR 2322 (967655101) - Poulan Pro Hedge Trimmer (2017-03) Engine Parts Diagram

Hedge Trimmer

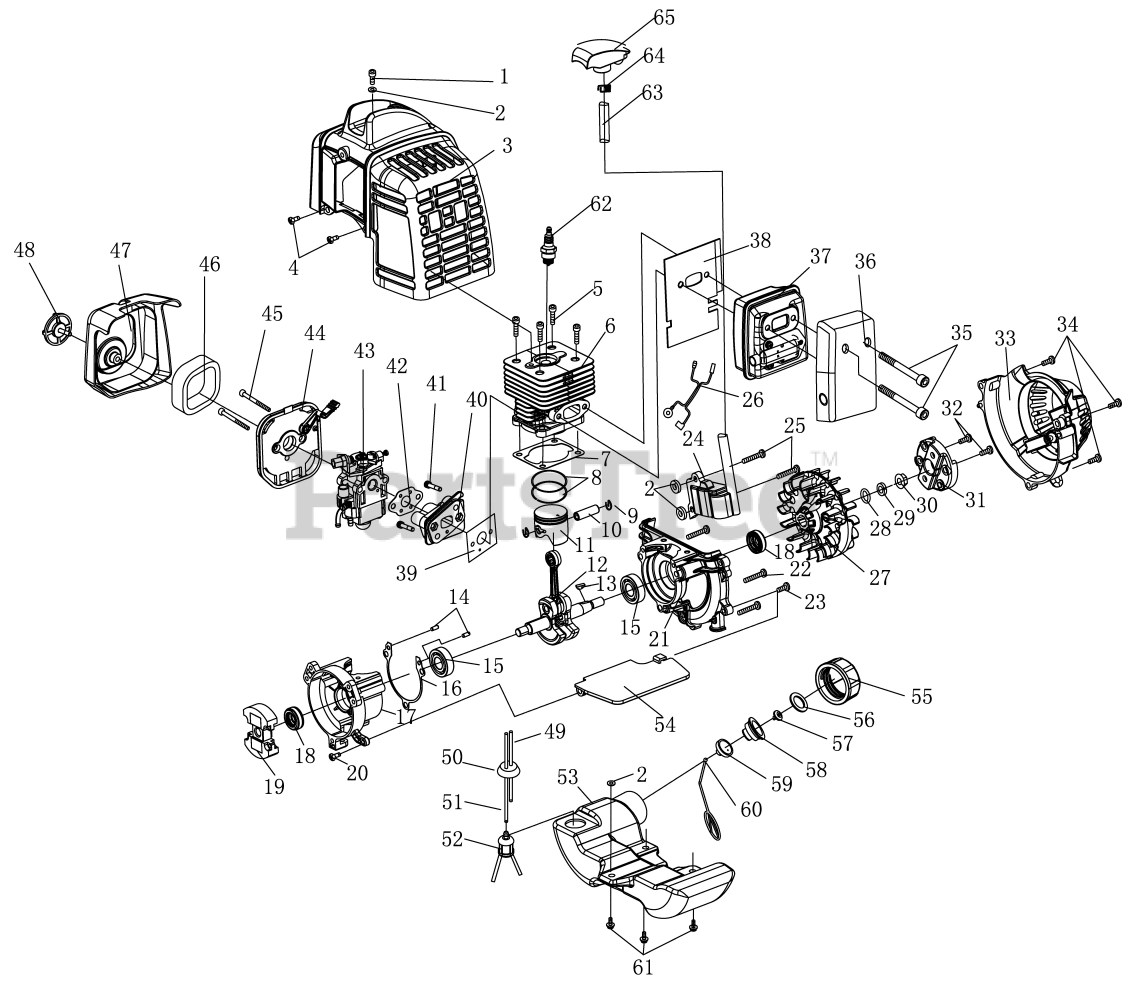

Engine Parts Diagram

  • Title

590459802

Poulan 590459802

COVER KIT

Note: Includes ref 44-48

$20.99

$

Usually ships in 3-10 days

0

590459901

Poulan 590459901

ENGINE COVER

Note: Includes ref 1-4

$31.99

$

Usually ships in 3-10 days

0

590460101

Poulan 590460101

CARBURETOR KIT

Note: Includes ref 39-43

$

$

Not available

590460301

Poulan 590460301

IGNITION KIT

Note: Includes ref 24-27, 63-65

$68.99

$

Usually ships in 3-10 days

0

590460401

Poulan 590460401

MUFFLER KIT

Note: Includes ref 35-38

$79.99

$

Usually ships in 3-10 days

0

590460501

Poulan 590460501

STARTER ASSY

Note: Includes ref 33, 34

$28.99

$

In Stock, only 2 left!

0

590460601

Poulan 590460601

ENGINE KIT

Note: Includes ref 5-23, 28-32, 54

$319.99

$

Usually ships in 3-10 days

0

590460701

Poulan 590460701

FUEL TANK KIT

Note: Includes ref 49-53, 55-61

$68.99

$

Usually ships in 3-10 days

0

590691201

Poulan 590691201

GASKET KIT

Note: Includes ref 2, 20, 30, 38, 39, 42, 54

$26.99

$

Usually ships in 3-10 days

0
