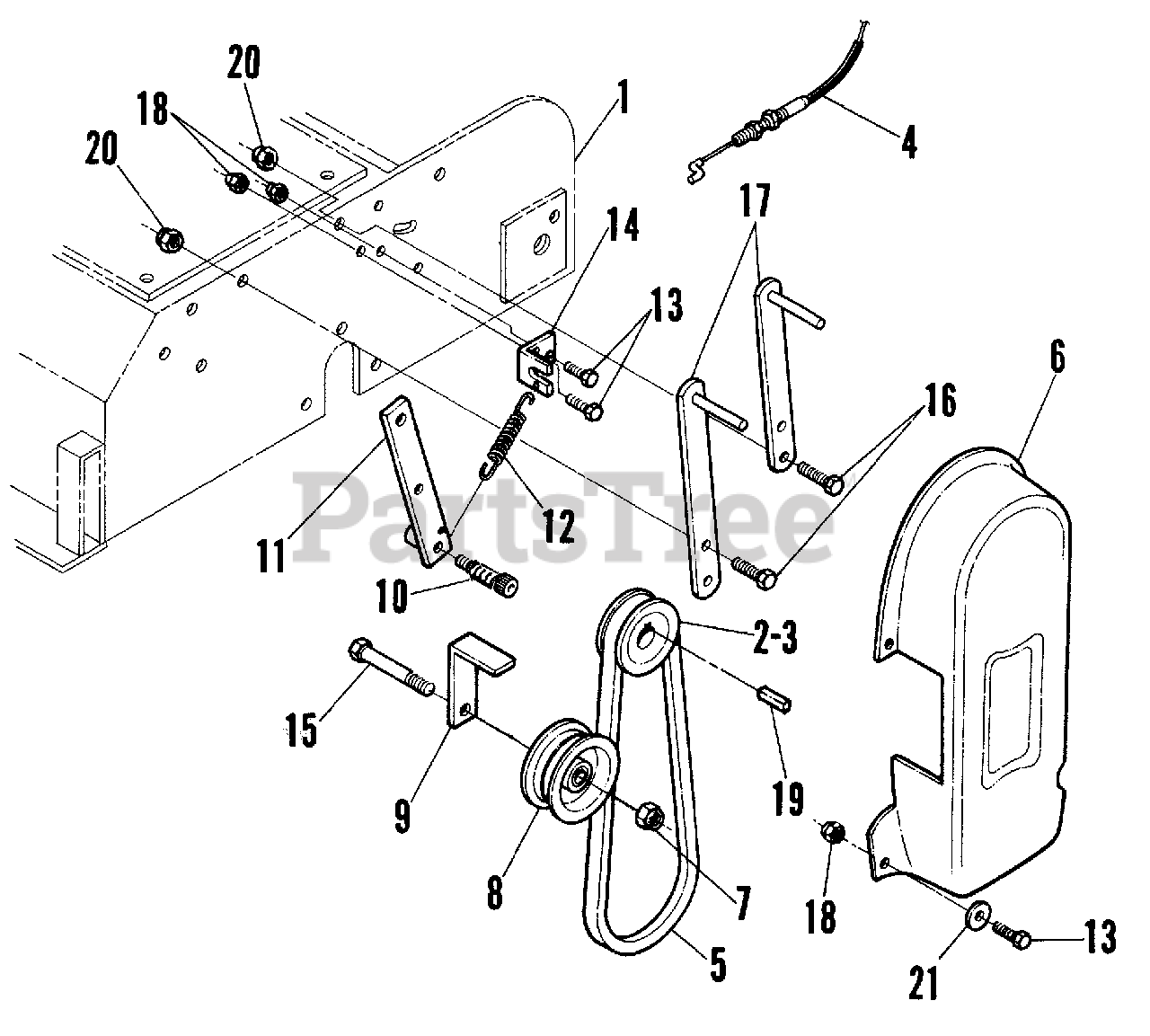

PR 3001 (88840) - Snapper 17" Power Rake, 3hp Drive Assembly Parts Diagram

17" Power Rake, 3hp

Drive Assembly Parts Diagram

  • Title

1

Snapper 77091

BODY w/Decals

$

$

Currently unavailable

2

Snapper 7076107

DRIVE PULLEY w/Set Screws
(Superseded to 7076107YP)

$64.99

$

Usually ships in 2-12 days

0

3

Snapper 7076956

SET SCREW, 5/16-18 x 3/8" Knurled Point
(Superseded to 5025061SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7023704

CABLE, Drive
(Superseded to 7023704YP)

$33.99

$

In Stock, only 2 left!

0

5

Snapper 7076145

DRIVE BELT
(Superseded to 7076145YP)

$28.99

$

Usually ships in 2-12 days

0

6

Snapper 7076140

SHIELD, Belt
(Superseded to 7076140YP)

$68.99

$

Usually ships in 2-12 days

0

7

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7014340

PULLEY, Idler
(Superseded to 7014340YP)

Note: Was 76847

$20.99

$

In Stock, only 2 left!

0

9

Snapper 76146

BELT SNUBBER

$

$

Currently unavailable

10

Snapper 7077001

SHOULDER BOLT, Socket Head

$

$

Not available

11

Snapper 7076104

IDLER ARM

$

$

Not available

12

Snapper 7076564

IDLER SPRING
(Superseded to 7076564YP)

$11.99

$

In Stock, only 2 left!

0

13

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 12

0

14

Snapper 7076138

BRACKET

$

$

Currently unavailable

15

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, Grade 5
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 2
(Superseded to 5025011X6SM)

Note: Was 90206

$3.99

$

In Stock, only 2 left!

0

17

Snapper 7076105

BELT GUIDE
(Superseded to 7076105YP)

$15.99

$

Usually ships in 2-12 days

0

18

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7076990

MACHINE KEY, 3/16" Square x 1-3/4"
(Superseded to 7076990YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7091098

WASHER, 1/4" Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0
