PR 5001 (88810) - Snapper 17" Power Rake, 5hp Raking Shaft Assembly Parts Diagram

17" Power Rake, 5hp

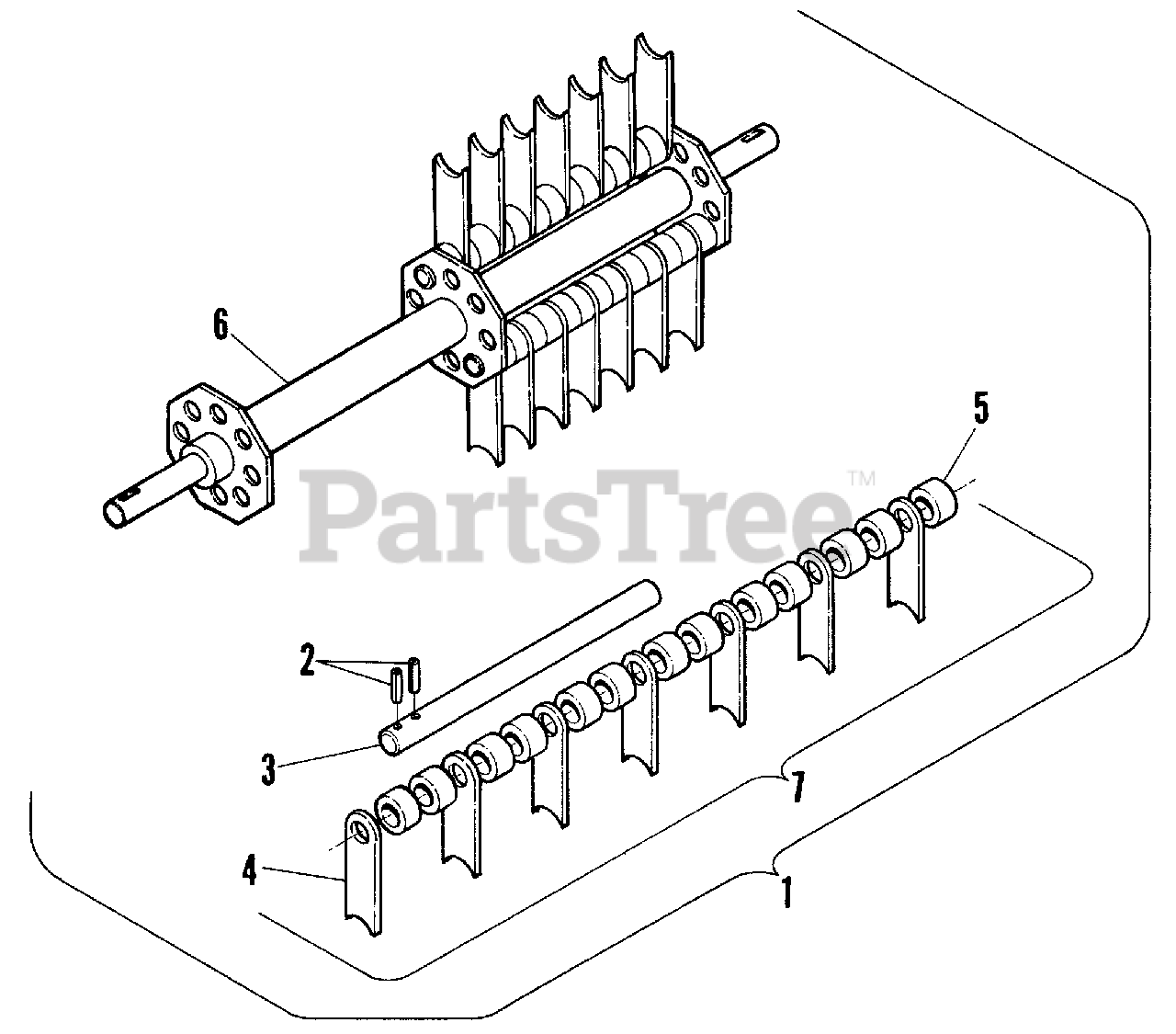

Raking Shaft Assembly Parts Diagram

  • Title

1

Snapper 7060812

RAKING SHAFT, Complete

$

$

Currently unavailable

2

Snapper 7076986

PIN, 1/8 x 7/8" Roll
(Superseded to 7076986YP)

$3.49

$

In Stock, Qty 8

0

3

Snapper 7076061

SATELLITE SHAFT

Note: (See "C" Below for Satellite Shaft Replacement Kit)

$

$

Not available

4

Snapper 7076074

FINGER

Note: (See "A" Below for Finger Replacement Kit)

$

$

Not available

5

Snapper 7076062

SPACER

Note: (See "B" Below for Spacer Replacement Kit)

$2.99

$

In Stock, Qty 8

0

6

Snapper 7076050

SHAFT ASSEMBLY

$

$

Not available

7

Snapper 7077031

MAIN SHAFT REPLACEMENT KIT

Note: (Contains Parts for 4 Satellite Shafts Complete)

$

$

Not available

?A

Snapper 77032

FINGER REPLACEMENT KIT

Note: OPTIONAL KITS; (Contains 28 Fingers; 7-6074)

$

$

Currently unavailable

?B

Snapper 77033

SPACER REPLACEMENT KIT

Note: OPTIONAL KITS; (Contains 52 Spacers; 7-6062)

$

$

Currently unavailable

?C

Snapper 7076061

SATELLITE SHAFT REPLACEMENT KIT

Note: Was 77034 (OPTIONAL KITS; (Contains 4 Shafts; 7-6061 and 8 Roll Pins; 7-6986)

$

$

Not available
