PR 521 (11A-436F100) - Cub Cadet Walk-Behind Mower Engine (1997) Base & Internal Parts Parts Diagram

Walk-Behind Mower Engine

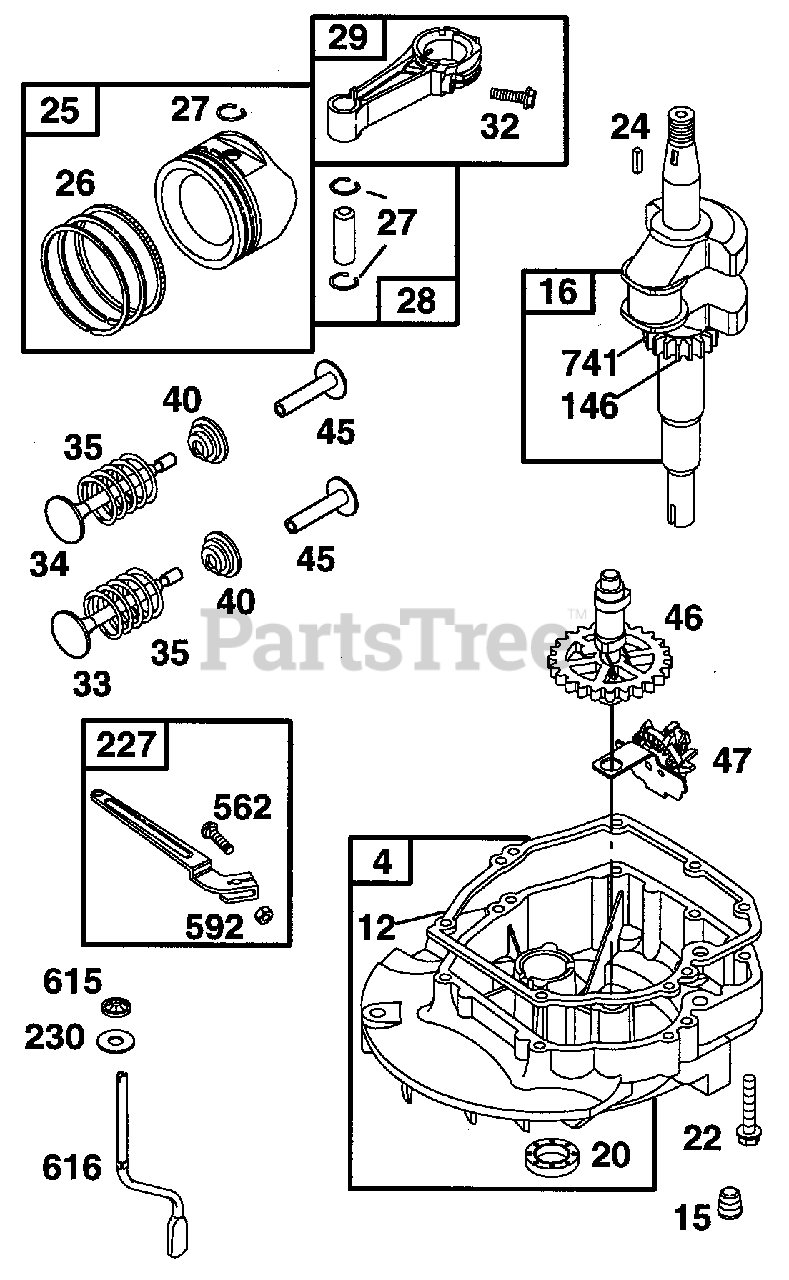

Base & Internal Parts Parts Diagram

  • Title

4

Cub Cadet BS-493279

Sump-Engine

$120.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

$6.49

$

In Stock, Qty 15

0

15

Cub Cadet BS-94720

Plug-Oil Drain
(Superseded to BS-691680)

$6.49

$

In Stock, only 3 left!

0

16

Cub Cadet BS-498565

Crankshaft
(Superseded to BS-797018)

$197.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

$8.49

$

In Stock, Qty 12

0

22

Cub Cadet BS-94220

Screw-Hex Head
(Superseded to BS-691092)

Note: 94612 Screw-Hex Head One used in hole nearest Breather.

$4.49

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 11

0

25

Cub Cadet BS-499429

Piston Assy (Std)

$

$

Not available

26

Cub Cadet BS-499425

Ring Set (Std)

$

$

Not available

27

Cub Cadet BS-263190

Lock-Piston Pin
(Superseded to BS-691866)

$4.99

$

In Stock, Qty 8

0

28

Cub Cadet BS-499423

Pin-Piston (Std)

$9.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-499424

Rod-Connecting
(Superseded to BS-590406)

$96.99

$

In Stock, only 3 left!

0

32

Cub Cadet BS-94699

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-262651

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262652

Valve-Intake

$

$

Not available

35

Cub Cadet BS-262224

Spring-Valve
(Superseded to BS-691270)

$5.99

$

In Stock, Qty 7

0

40

Cub Cadet BS-93312

Retainer-Spring
(Superseded to BS-692194)

$6.49

$

In Stock, only 2 left!

0

45

Cub Cadet BS-262204

Tappet-Valve
(Superseded to BS-690548)

$10.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-498275

Gear-Cam
(Superseded to BS-691449)

$80.99

$

In Stock, only 3 left!

0

47

Cub Cadet BS-499246

Slinger-Oil

$

$

Currently unavailable

146

Cub Cadet BS-94388

Key-Timing
(Superseded to BS-690979)

$3.49

$

In Stock, only 2 left!

0

227

Cub Cadet BS-492349

Lever Assy-Governor
(Superseded to BS-690783)

$17.99

$

In Stock, only 3 left!

0

230

Cub Cadet BS-67072

Washer-Governor Crank
(Superseded to BS-690272)

$4.49

$

In Stock, only 3 left!

0

562

Cub Cadet BS-92613

Bolt-Carriage

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex

$

$

Not available

615

Cub Cadet BS-94474

Nut-Push
(Superseded to BS-690340)

$4.99

$

In Stock, Qty 10

0

616

Cub Cadet BS-263175

Crank-Governor

$

$

Not available

741

Cub Cadet BS-262598

Gear-Timing
(Superseded to BS-691830)

$19.99

$

Usually ships in 2-12 days

0
