PR 521 (11A-436F100) - Cub Cadet Walk-Behind Mower Engine (1997) Starter Assembly Parts Diagram

Walk-Behind Mower Engine

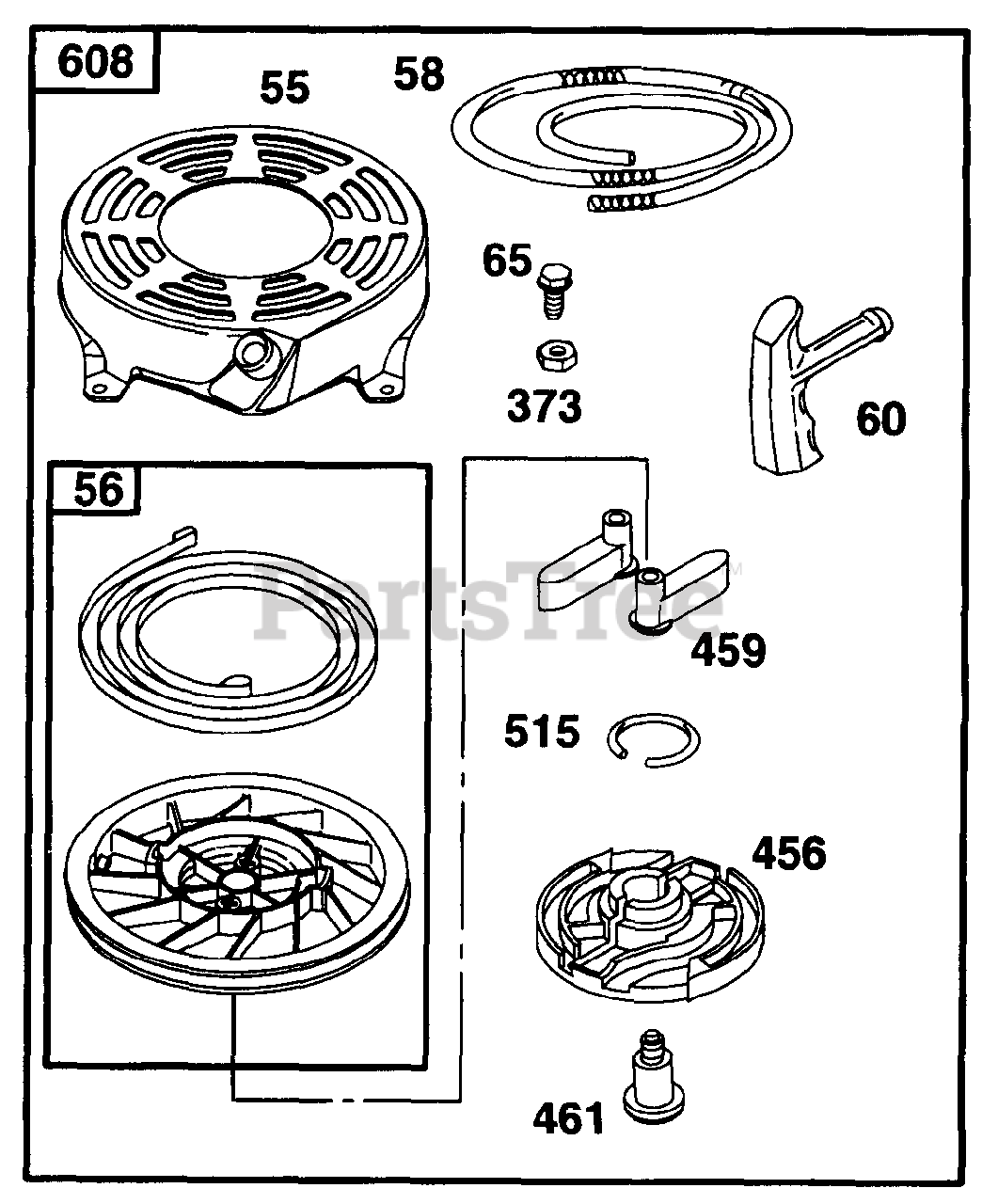

Starter Assembly Parts Diagram

  • Title

55

Cub Cadet BS-497440

Housing-Rewind Starter
(Superseded to BS-691421)

$67.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-498144

Pulley-Rewind Starter

$19.99

$

In Stock, Qty 20+

0

58

Cub Cadet BS-280399

Rope-Rewind Starter
(Superseded to BS-280399S)

Note: Cut to required length

$6.49

$

In Stock, only 2 left!

0

60

Cub Cadet BS-281434

Grip-Rewind Starter
(Superseded to BS-281434S)

$3.99

$

In Stock, only 1 left!

0

65

Cub Cadet BS-94686

Screw-Hex

$

$

Not available

373

Cub Cadet BS-94908

Nut- Hex
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

456

Cub Cadet BS-281503

Retainer
(Superseded to BS-692299)

$4.99

$

In Stock, only 4 left!

0

459

Cub Cadet BS-281505

Pawl-Starter
(Superseded to BS-281505S)

$3.99

$

In Stock, Qty 20+

0

461

Cub Cadet BS-94943

Screw-Shoulder
(Superseded to BS-691696)

$12.99

$

In Stock, only 1 left!

0

515

Cub Cadet BS-263073

Spring-Retainer
(Superseded to BS-691855)

$4.99

$

In Stock, only 1 left!

0

608

Cub Cadet BS-497680

Starter-Rewind

$52.99

$

In Stock, Qty 20+

0
