PR 521 (11A-438C101) - Cub Cadet Walk-Behind Mower Engine (1999) Air Filter, Muffler & Linkage Parts Diagram

Walk-Behind Mower Engine

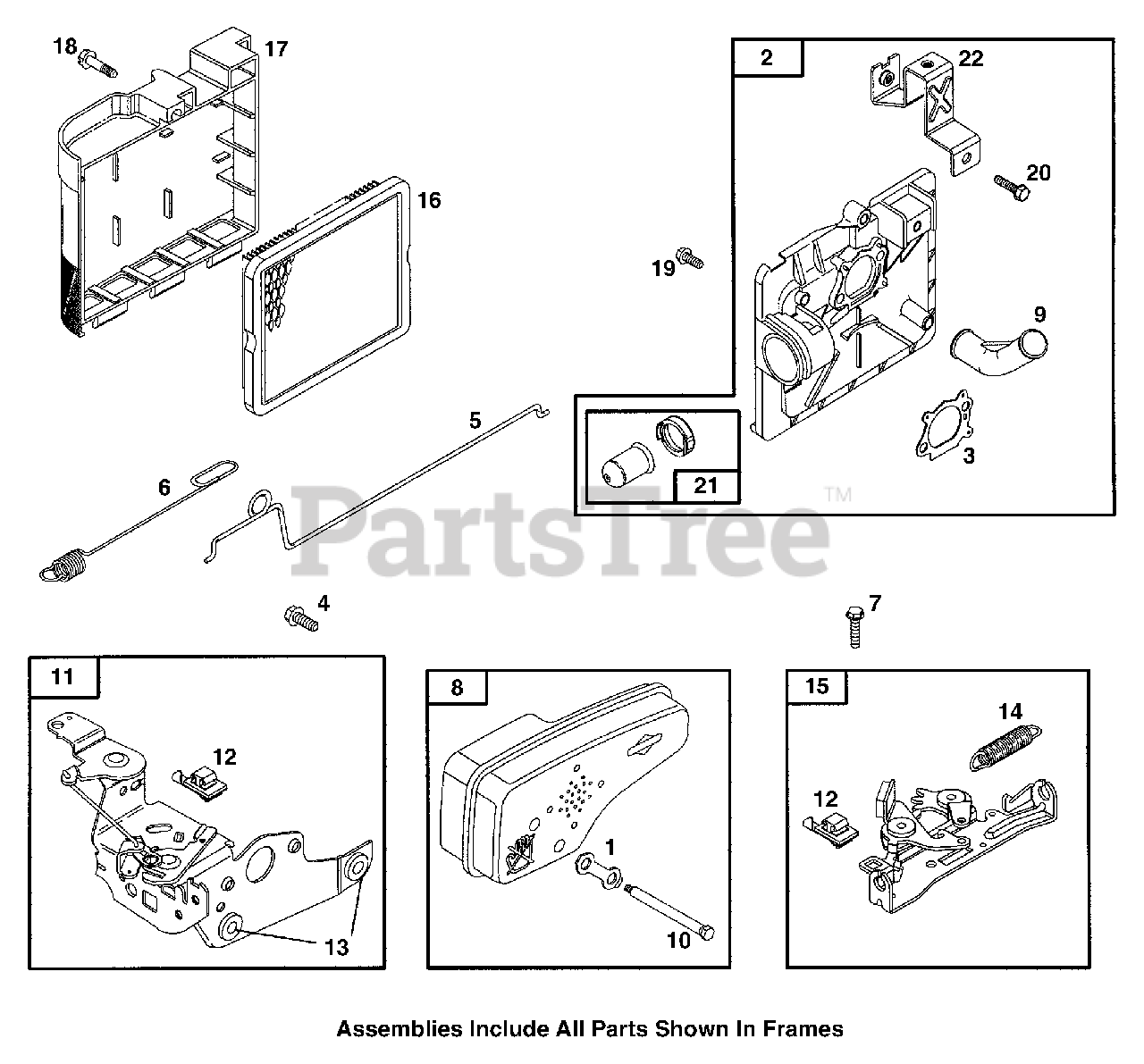

Air Filter, Muffler & Linkage Parts Diagram

  • Title

1

Cub Cadet BS-223664

Muffler Screw Lock
(Superseded to BS-691740)

$5.99

$

In Stock, Qty 14

0

2

Cub Cadet BS-496116

Air Cleaner Base
(Superseded to BS-795259)

$33.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-272653

A/C Primer Gasket
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-94644

Hex Screw
(Superseded to BS-690877)

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-262579

Mechanical Governor Link
(Superseded to BS-691829)

$9.49

$

In Stock, Qty 9

0

6

Cub Cadet BS-263044

Governor Spring
(Superseded to BS-690319)

$8.99

$

In Stock, only 3 left!

0

7

Cub Cadet BS-94512

Slotted Hex Screw
(Superseded to BS-691648)

$5.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-497838

Exhaust Muffler
(Superseded to BS-692038)

$28.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-281299

Grommet
(Superseded to BS-691923)

$10.99

$

In Stock, Qty 12

0

10

Cub Cadet BS-94231

Shoulder Screw
(Superseded to BS-691340)

$5.49

$

In Stock, only 3 left!

0

11

Cub Cadet BS-497203

Control Bracket
(Superseded to BS-790143)

$46.99

$

In Stock, only 2 left!

0

12

Cub Cadet BS-396847

Stop Switch
(Superseded to BS-692310)

$6.49

$

In Stock, Qty 17

0

13

Cub Cadet BS-493823

Spacer

Note: (includes two)

$6.49

$

In Stock, only 2 left!

0

14

Cub Cadet BS-262640

Brake Spring
(Superseded to BS-691831)

$11.99

$

In Stock, only 2 left!

0

15

Cub Cadet BS-493442

Brake
(Superseded to BS-796387)

$

$

Not available

16

Cub Cadet BS-491588

A/C Cartridge Filter
(Superseded to BS-491588S)

$7.49

$

In Stock, Qty 20+

0

17

Cub Cadet BS-281340

Air Cleaner Cover
(Superseded to BS-692298)

$24.99

$

In Stock, only 4 left!

0

18

Cub Cadet BS-94872

Slotted Hex Screw
(Superseded to BS-690670)

$6.49

$

In Stock, Qty 13

0

19

Cub Cadet BS-94873

Hex Screw
(Superseded to BS-692523)

$7.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-94749

Hex Screw
(Superseded to BS-691669)

$4.49

$

In Stock, only 1 left!

0

21

Cub Cadet BS-496115

Carburetor Primer
(Superseded to BS-694395)

$4.49

$

In Stock, Qty 17

0

22

Cub Cadet BS-224815

Air Cleaner Support
(Superseded to BS-795259)

$33.99

$

Usually ships in 2-12 days

0
