PR 624 ES (961980046-04) - Poulan Pro Snow Thrower (2012-08) DRIVE Parts Diagram

Snow Thrower

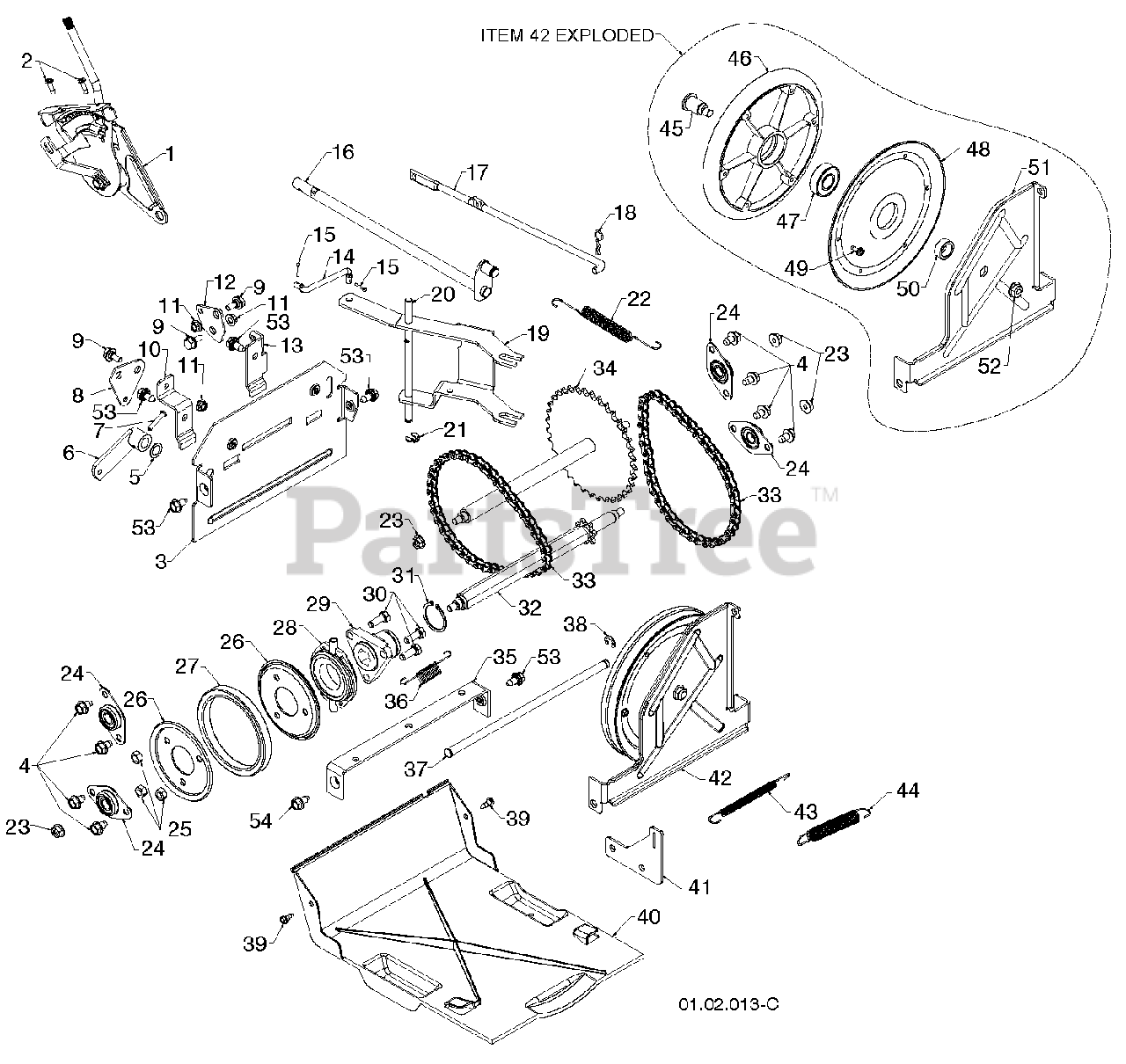

DRIVE Parts Diagram

  • Title

1

Poulan 532198875

(Superseded to 532198474)

$

$

Not available

2

Poulan 817501010

SCREW #10-24 X 5/8

$

$

Not available

3

Poulan 532438837

PLATE.END.CHAIN.ASM.YELLOW

$8.99

$

Usually ships in 3-10 days

0

4

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 20+

0

6

Poulan 532405485

ARM, AUGER CONTROL

$10.99

$

In Stock, only 1 left!

0

7

Poulan 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 532415450

PLATE.SHIFTER.BZP

$4.99

$

In Stock, only 3 left!

0

9

Poulan 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532415433

Shifter Plate Bracket, Bzp

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 9

0

12

Poulan 532415435

Clutch Plate

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 532416864

Clutch Bracket Plate

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 532187101

LINK, SPEED CONTROL

$

$

Not available

15

Poulan 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 532427542

CONTROL.SHAFT.ASM
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

17

Poulan 532402568

ROD.CLUTCH.SWING.PLATE

$

$

Not available

18

Poulan 532169675

SPRING RETAINER

$7.49

$

In Stock, only 4 left!

0

19

Poulan 581422501

BRACKET.YOKE.SHIFTER.BLACK

$26.99

$

Usually ships in 3-10 days

0

20

Poulan 532402310

ROD.PIVOT.SHIFTER

$6.49

$

In Stock, only 1 left!

0

21

Poulan 812000036

KLIP RING TI

$6.49

$

In Stock, only 1 left!

0

22

Poulan 532402878

SPRING.TRACTION.RETURN

$6.49

$

In Stock, only 2 left!

0

23

Poulan 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 9

0

24

Poulan 532408981

BEARING FLANGE BALL

$9.99

$

Usually ships in 3-10 days

0

25

Poulan 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

26

Poulan 532199509

PLATE.RUBBER.WHEEL
(Superseded to 532198176)

$

$

Not available

27

Poulan 532440620

RING.RUBBER.2-STG.SNW.DRV.WH
(Superseded to 585021001)

$24.99

$

In Stock, Qty 8

0

28

Poulan 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

0

29

Poulan 532178613

HUB, RUBBER WHEEL

$30.99

$

Usually ships in 3-10 days

0

30

Poulan 874760514

BOLT

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 812000012

Retaining Ring
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 532402187

SHAFT.HEX.W/SPOCKET

$

$

Not available

33

Poulan 532401619

CHAIN.DRIVE.SNOWTHROWER.#420

$15.99

$

In Stock, only 2 left!

0

34

Poulan 532437303

SPROCKET.WELDMENT

$47.99

$

Usually ships in 3-10 days

0

35

Poulan 532415429

SHIFTER BRACKET
(Superseded to 401984X479)

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 532180135

SPRING, BIAS

$6.49

$

In Stock, Qty 10

0

37

Poulan 532402652

ROD.PIVOT.SWING.PLATE.SNOW

$21.99

$

Usually ships in 3-10 days

0

38

Poulan 532428288

E-RING.RETAINER.REINFORCED.375

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 532410877

PAN.BOTTOM.PLASTIC

$31.99

$

In Stock, only 1 left!

0

41

Poulan 532416682

BRACKET.TRACTION.SPRING.

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 532402689

RP.PULLEY.PLATE.ASM.DRIVE
(Superseded to 585111201)

$

$

Not available

43

Poulan 532414557

SPRING.TRACTION.IDLER

$6.49

$

In Stock, only 4 left!

0

44

Poulan 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 12

0

45

Poulan 532402504

SHAFT.FRICTION.PULLEY.SNOW
(Superseded to 585111201)

$

$

Not available

46

Poulan 532401820

PULLEY.PLATE.ASM.DRIVE
(Superseded to 532402689)

$

$

Not available

47

Poulan 532198791

Bearing

$18.99

$

In Stock, only 2 left!

0

48

Poulan 532402393

PULLEY.HALF.TRACTION

$

$

Not available

49

Poulan 817541008

SCREW
(Superseded to 17541008)

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

51

Poulan 532422941

SWINGPLATE

$

$

Not available

52

Poulan 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Poulan 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

54

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0
