PR 675 AWD (961420128-02) - Poulan Walk-Behind Mower (2016-01) DRIVE Parts Diagram

Walk-Behind Mower

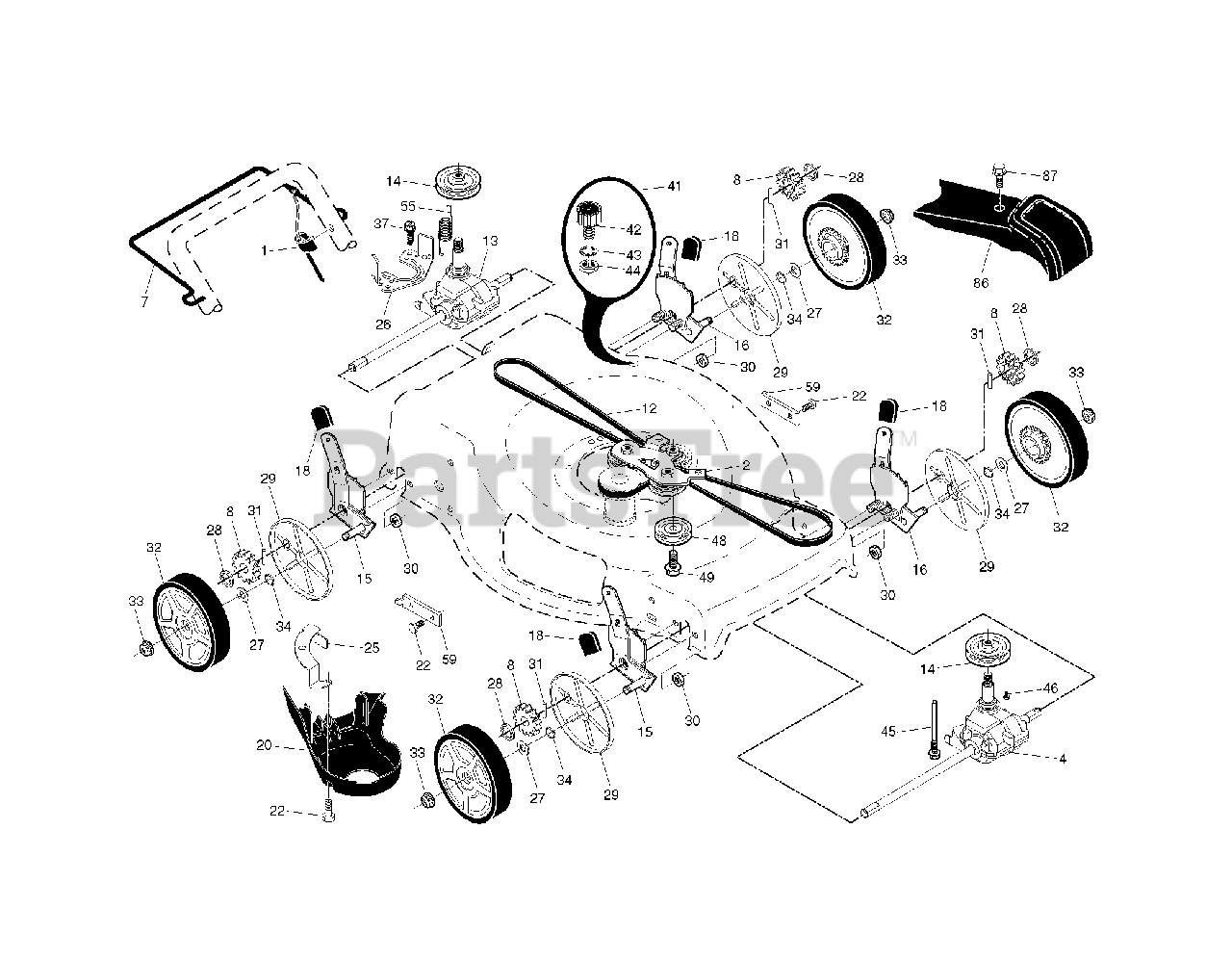

DRIVE Parts Diagram

  • Title

1

Poulan 586033301

Drive Cable, AWD

Note: . 9

$34.99

$

In Stock, Qty 14

0

2

Poulan 586072802

Bracket Assembly, AWD Bzp Black

$

$

Not available

4

Poulan 588480001

Transmission, 22+ Awd Frt
(Superseded to 589599201)

$121.99

$

In Stock, Qty 20+

0

7

Poulan 532435281

BAIL.DRIVE.S/S.ROUND.MARI.21

$12.99

$

Usually ships in 3-10 days

0

8

Poulan 532404835

PINIION.14.TOOTH.RGD

$6.49

$

In Stock, Qty 20+

0

12

Poulan 580364603

Clutching Cover Belt, 3L 64.10
(Superseded to 580364610)

$15.99

$

In Stock, Qty 20+

0

13

Poulan 581680801

TRANSMISSION.22+AWD.WALK.MOWER
(Superseded to 532434564)

$120.99

$

In Stock, Qty 20+

0

14

Poulan 586963001

Drive Pulley, Sm Awd/Rwd
(Superseded to 586963002)

$7.49

$

In Stock, Qty 13

0

15

Poulan 581497908

Adjuster Assembly Kit, RH Front

Note: RH

$17.99

$

In Stock, Qty 20+

0

16

Poulan 581497907

Adjuster Assembly Kit, LH Front

Note: LH

$17.99

$

In Stock, Qty 20+

0

18

Poulan 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

20

Poulan 580806901

COVER.REAR.DRIVE.22+2013

$31.99

$

In Stock, Qty 5

0

22

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

25

Poulan 532426065

BRACKET.DRIVE.COVER.RGD.BZP

$

$

Not available

26

Poulan 581152502

BRACKET.TRAN.BELTKEEPER.22+RGD

$

$

Not available

27

Poulan 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

28

Poulan 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

29

Poulan 581840401

COVER.DUST.WHEEL.INNER.WALK

$4.99

$

In Stock, Qty 20+

0

30

Poulan 532438130

NUT.FLANGE.1-4-20-SERR
(Superseded to 596041001)

$3.99

$

In Stock, Qty 20+

0

31

Poulan 532404845

PAWL, DRIVE

$4.99

$

In Stock, Qty 20+

0

32

Poulan 581685505

WHEEL.8X1.75.5SPK.RAD3.421.BU2
(Superseded to 583630801)

$

$

Not available

33

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Poulan 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 3 left!

0

37

Poulan 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

41

Poulan 532421114

KIT.WASH-OUT.PORT

$24.99

$

In Stock, Qty 6

0

42

Poulan 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, Qty 6

0

43

Poulan 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 3 left!

0

44

Poulan 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

45

Poulan 587438201

Screw, Hi-Lo.5/16-14 X 4.10

$4.99

$

In Stock, Qty 9

0

46

Poulan 584299401

SCREW.HI-LO. 5/16 X 1.00

$4.99

$

In Stock, only 4 left!

0

48

Poulan 587973001

Idler Pulley Assembly, 22+ AWD

$17.99

$

In Stock, Qty 20+

0

49

Poulan 581334501

SCREW

$15.99

$

In Stock, Qty 20+

0

55

Poulan 581351301

SPRING.RETURN.AUTO.

$9.99

$

In Stock, Qty 16

0

59

Poulan 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

86

Poulan 587997901

COVER.DR.22 AWD.GENERIC

$

$

Not available

87

Poulan 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 4 left!

0
