PR 675 AWD (961420128-02) - Poulan Walk-Behind Mower (2016-01) FRAME ENGINE Parts Diagram

Walk-Behind Mower

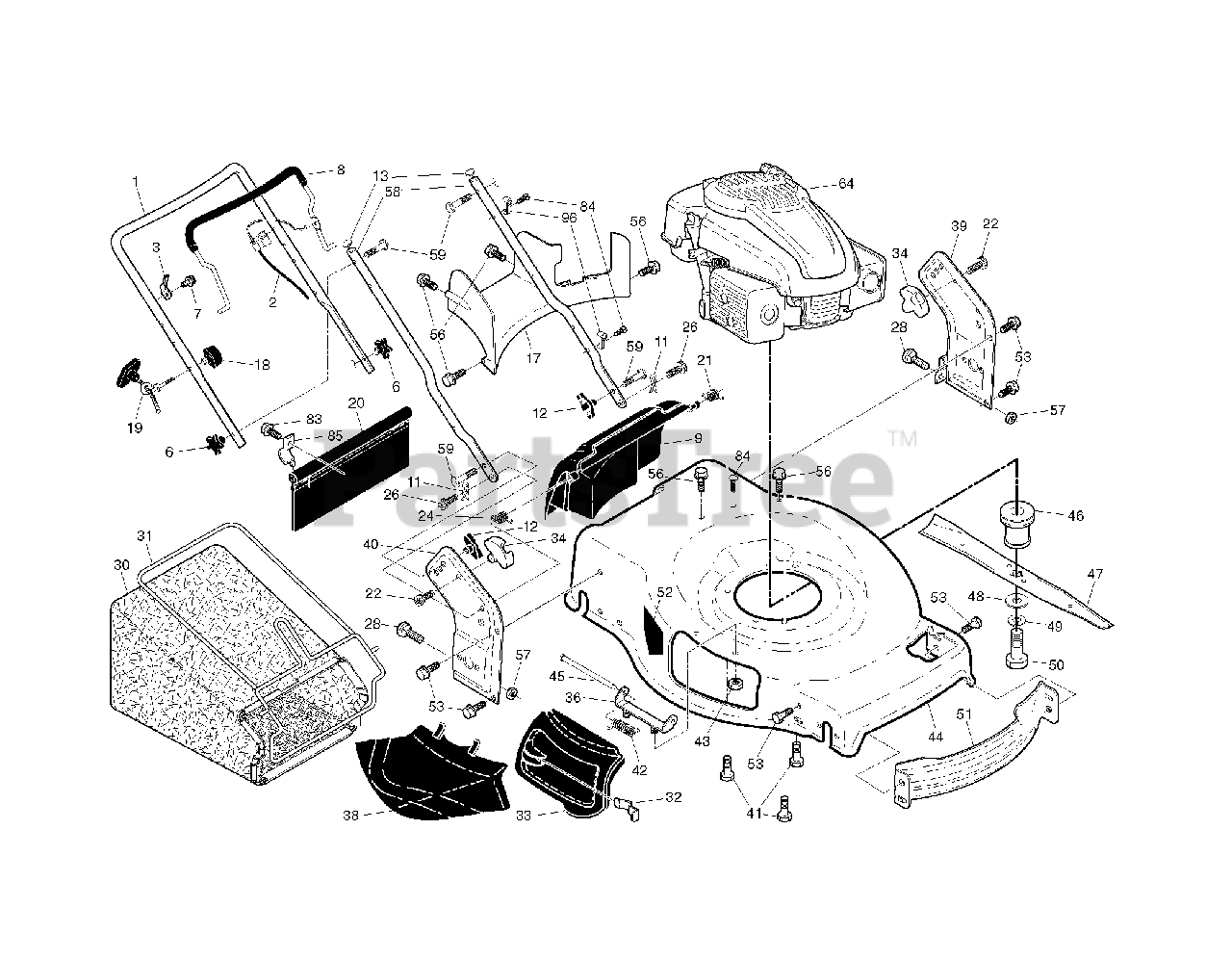

FRAME ENGINE Parts Diagram

  • Title

1

Poulan 585864805

HANDLE.UP.DST.SS/VS.FG/RG.NHB

Note: . 70

$14.99

$

Usually ships in 3-10 days

0

2

Poulan 532440385

Cable, MZR Rgd Plus Strt
(Superseded to 583547901)

$15.99

$

In Stock, Qty 20+

0

3

Poulan 532430034

BRACKET.UPSTOP.RT

$6.49

$

In Stock, Qty 7

0

6

Poulan 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

7

Poulan 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

8

Poulan 587478303

Bail, Om Strt Mzr Marig 421

$22.99

$

Usually ships in 3-10 days

0

9

Poulan 585847601

DOOR.REAR.22+GEN.RG.EBA.BLK

$24.99

$

Usually ships in 3-10 days

0

11

Poulan 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 20+

0

12

Poulan 532191938

(Superseded to 532189713)

$3.99

$

In Stock, Qty 20+

0

13

Poulan 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 9

0

18

Poulan 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 12

0

19

Poulan 581902101

Rope Guide, Blk Zinc Chrom

$4.99

$

In Stock, only 2 left!

0

20

Poulan 532444501

SKIRT.REAR.22PLUS.RGD.LW.2012

$12.99

$

Usually ships in 3-10 days

0

21

Poulan 532419949

SPRING.LH.GRAY

Note: LH

$6.49

$

In Stock, Qty 7

0

22

Poulan 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Poulan 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, Qty 11

0

26

Poulan 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 586212501

Carriage Bolt, 5/16-18 X 5/8

$4.99

$

In Stock, Qty 20+

0

30

Poulan 580947309

GBAG.A1640416S.BLK.PPRO.MRG.
(Superseded to 580947302)

$

$

Not available

31

Poulan 585054702

Grass Bag Frame, 22+ Black

$18.99

$

Usually ships in 3-10 days

0

32

Poulan 532441192

LATCH.DOOR.ZINC

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 532432642

DOOR.MULCH.22.BLACK.MULTI-BRAN

$10.99

$

In Stock, Qty 13

0

34

Poulan 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$6.49

$

In Stock, Qty 9

0

36

Poulan 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

38

Poulan 532426129

DEFLECTOR.CLIPPING.22.BLACK

$10.99

$

In Stock, Qty 20+

0

39

Poulan 585900702

Handle Bracket Assembly, LH 22+ Black

Note: LH

$

$

Not available

40

Poulan 585900802

Handle Bracket Assembly, RH 22+ Black

Note: RH

$27.99

$

In Stock, only 1 left!

0

41

Poulan 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

42

Poulan 532193000

SPRING.TORSION

$7.49

$

In Stock, Qty 20+

0

43

Poulan 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 6

0

44

Poulan 581376801

Mower Deck Shell, 22"+ Awd Mc Wo Blk Tri

$148.99

$

Usually ships in 3-10 days

0

45

Poulan 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 20+

0

46

Poulan 581851501

ADAPTER.BLADE.25MM.3MPH

$12.99

$

In Stock, Qty 20+

0

47

Poulan 532420463

BLADE.22PLUS

$15.99

$

In Stock, Qty 20+

0

48

Poulan 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

49

Poulan 532850263

(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

50

Poulan 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Poulan 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

52

Poulan 532404763

No Step Decal
(Superseded to 532182166)

$4.99

$

In Stock, only 3 left!

0

53

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

56

Poulan 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Poulan 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 585908202

HANDLE.LOWER.22+.BT.2PC.BLK

$

$

Not available

59

Poulan 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

64

Poulan 000000000

Note: KOHLER XT675-3105 FOR SERVICE PARTS 1-800-544-2444

$

$

Not available

83

Poulan 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

84

Poulan 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

Usually ships in 3-10 days

0

85

Poulan 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 20+

0

96

Poulan 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0

Poulan 532423849

Bag of Hardware, 22+

Note: NOT SHOWN. 12 59

$

$

Not available
