PR 675 AWD (961420143-00) - Poulan Walk-Behind Mower (2016-09) HANDLE Parts Diagram

Walk-Behind Mower

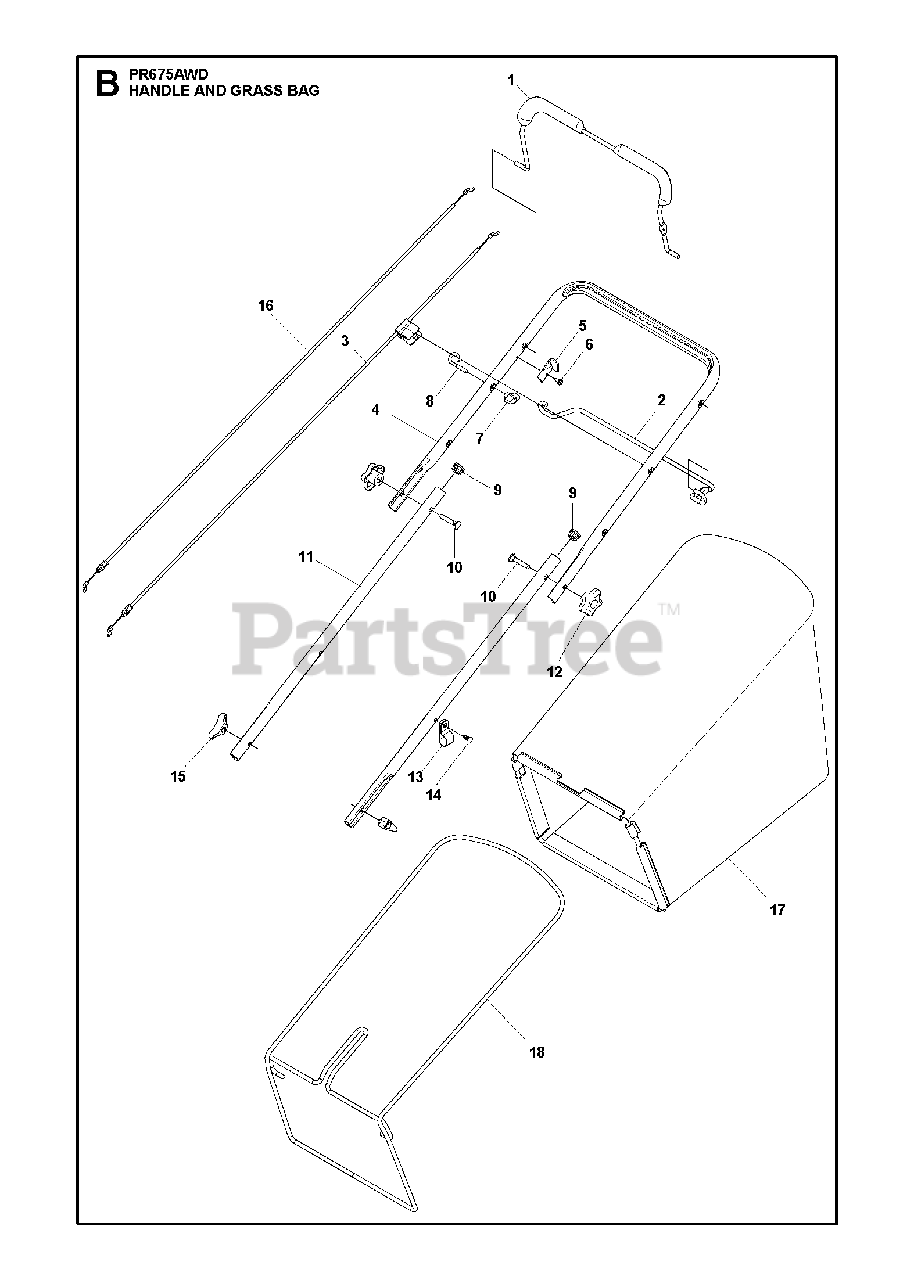

HANDLE Parts Diagram

  • Title

1

Poulan 587478303

Bail, Om Strt Mzr Marig 421

Note: Straight

$22.99

$

Usually ships in 3-10 days

0

2

Poulan 532435281

BAIL.DRIVE.S/S.ROUND.MARI.21

Note: Drive Straight

$12.99

$

Usually ships in 3-10 days

0

3

Poulan 501188801

Cable, MZR Dual 5 95Ext45 92Con

Note: Operator Presence Bail

$8.99

$

In Stock, only 2 left!

0

4

Poulan 589197903

HANDLE.UPP.DST.EXCR.SM.SP.479

Note: Straight

$

$

Not available

5

Poulan 532430034

BRACKET.UPSTOP.RT

Note: Upstop

$6.49

$

In Stock, Qty 7

0

6

Poulan 532178848

SCREW

Note: 10-16 X 5 /8

$7.49

$

In Stock, Qty 20+

0

7

Poulan 581912601

T-KNOB.NEW ROPE GUIDE

Note: T Rope Guide

$4.99

$

In Stock, Qty 12

0

8

Poulan 581902101

Rope Guide, Blk Zinc Chrom

Note: Rope

$4.99

$

In Stock, only 2 left!

0

9

Poulan 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

Note: Plastic 7 /8 14-20 Gauge

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 588040401

Retaining Bolt, Concave Head

Note: Concave Head Retaining

$4.99

$

In Stock, Qty 14

0

11

Poulan 501064003

Lower Handle, 2Pc 2-Position

Note: Lower 2 piece 3 Position

$

$

Not available

12

Poulan 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

Note: Handle Star

$7.49

$

In Stock, only 2 left!

0

13

Poulan 532197991

CLIP.CABLE.BLK

Note: P /Cable

$7.49

$

In Stock, Qty 9

0

14

Poulan 532428124

FASTENER.PUSH.O.250X0.783

Note: Push 0 250 X 0 783

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 532191938

(Superseded to 532189713)

Note: Handle Standard

$3.99

$

In Stock, Qty 20+

0

16

Poulan 582598601

Drive Cable, Up Na21

Note: Drive Under-bail

$7.49

$

In Stock, Qty 11

0

17

Poulan 587100415

Grass Bag Assembly, 2.3 Cu Ft
(Superseded to 587100402)

$34.99

$

In Stock, Qty 20+

0

18

Poulan 586929102

Grass Bag Frame, Awd 21 Black

$18.99

$

Usually ships in 3-10 days

0
