PR GT 20H50 B - Poulan Pro Garden Tractor (2000) Chassis And Enclosures Parts Diagram

Lawn Tractor

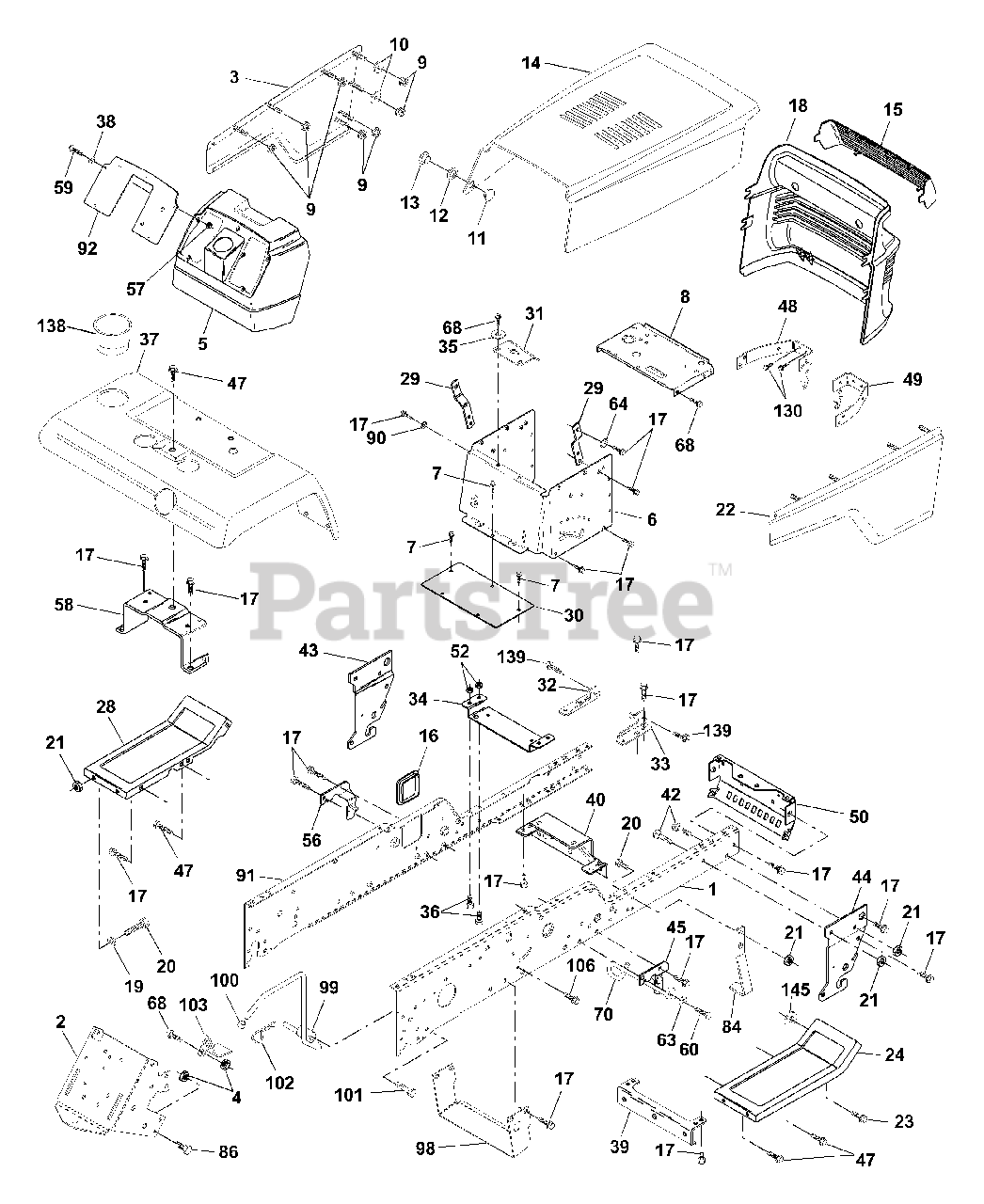

Chassis And Enclosures Parts Diagram

  • Title

1

Electrolux/AYP 150253

Rail, Frame RH
(Superseded to 532180375)

$

$

Not available

2

Electrolux/AYP 140506

Drawbar, Gt
(Superseded to 175282)

$

$

Not available

3

Electrolux/AYP 136671X428

Panel Asm., Side LH

$

$

Not available

4

Electrolux/AYP 73800700

Nut, Lock Hex 7/16 Unc
(Superseded to 873800700)

$

$

Not available

5

Electrolux/AYP 170119

Dash, Plastic

$

$

Not available

6

Electrolux/AYP 157882

Dash, 1PCS, Lower
(Superseded to 532157882)

$

$

Not available

7

Electrolux/AYP 17720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$

$

Not available

8

Electrolux/AYP 145166

Support, Battery
(Superseded to 532145166)

$

$

Not available

9

Electrolux/AYP 108067X

Nut, Pal
(Superseded to 532108067)

$

$

Not available

10

Electrolux/AYP 19092016

Washer 9/32 x 1-1/4 x 16
(Superseded to 819092016)

$7.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 137270

Rivet Ratchet Male
(Superseded to 537137270)

$

$

Not available

12

Electrolux/AYP 137269

Washer Nylon
(Superseded to 532137269)

$

$

Not available

13

Electrolux/AYP 137271

Rivet Ratchet Female
(Superseded to 532137271)

$

$

Not available

14

Electrolux/AYP 136673X428

Hood Asm., Pnt
(Superseded to 532136673)

$

$

Not available

15

Electrolux/AYP 136374X599

Lens, Headlight Bar
(Superseded to 532136374)

$

$

Not available

16

Electrolux/AYP 121794X

Cover, Access
(Superseded to 532121794)

$

$

Not available

17

Electrolux/AYP 17060612

Screw, 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 136373X428

Grille

$

$

Not available

19

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 74760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$

$

Not available

21

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$

$

Not available

22

Electrolux/AYP 136670X428

Panel Asm., Side RH

$17.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 17060616

Screw 3/8-16 x 1-1/2
(Superseded to 817000616)

$6.99

$

In Stock, Qty 9

0

24

Electrolux/AYP 145243X428

Footrest, RH
(Superseded to 532182508)

$

$

Not available

28

Electrolux/AYP 145244X428

Footrest, LH
(Superseded to 532182507)

$45.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 145349

Bracket, Support Dash
(Superseded to 532145349)

$

$

Not available

30

Electrolux/AYP 145052

Saddle
(Superseded to 532145052)

$

$

Not available

31

Electrolux/AYP 161419

Bracket Supt 1-pc Vgt Steering
(Superseded to 532161419)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 161327

Bracket, Frame Pivot Lh
(Superseded to 532161327)

$6.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 161326

Bracket, Frame Pivot Rh
(Superseded to 532161326)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 142131

Bracket, Engine Support Rear
(Superseded to 532142131)

$9.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.49

$

In Stock, Qty 19

0

36

Electrolux/AYP 74780512

Bolt, Fin Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 167287X428

Fender, Pnt.

$88.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 19091216

Washer, Lock 1/4
(Superseded to 819091216)

$3.49

$

In Stock, only 2 left!

0

39

Electrolux/AYP 136961

Bracket, Axle Front
(Superseded to 532175278)

$

$

Not available

40

Electrolux/AYP 156111

Bracket, Support Axle/Engine
(Superseded to 532156111)

$

$

Not available

42

Murray 72140608

Bolt Rdhd Sqnk 3/8-16 Unc x 1

$

$

Not available

43

Electrolux/AYP 136939

Bracket, Spnsn Front Lh
(Superseded to 532136939)

$

$

Not available

44

Electrolux/AYP 136940

Bracket, Spnsn Front Rh
(Superseded to 532136940)

$

$

Not available

45

Electrolux/AYP 154913

Bracket Asm., Susp Chassis Rh
(Superseded to 532154913)

$

$

Not available

47

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$

$

Not available

48

Electrolux/AYP 157105

Bracket Asm Hood Lh

$

$

Not available

49

Electrolux/AYP 157107

Bracket Asm Hood Rh

$

$

Not available

50

Electrolux/AYP 152728

Bracket, Chassis Front
(Superseded to 532152728)

$

$

Not available

52

Murray 73680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

56

Electrolux/AYP 154914

Bracket Asm., Susp Chassis Lh
(Superseded to 532154914)

$

$

Not available

57

Electrolux/AYP 73640400

Nut Keps Blk Hex 1/4-20
(Superseded to 873640400)

$

$

Not available

58

Electrolux/AYP 137113

Bracket Asm., Fender
(Superseded to 532183569)

$28.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 74180412

Screw Mach Cr 1/4-20 x 3/4
(Superseded to 874180412)

$4.99

$

In Stock, only 2 left!

0

60

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$6.99

$

In Stock, Qty 8

0

63

Murray 19131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$

$

Not available

64

Electrolux/AYP 144283

Washer Serrated Disc 13/32 x 1
(Superseded to 532144283)

$

$

Not available

68

Electrolux/AYP 17490508

Screw, 5/16-18 x 1/2
(Superseded to 817490508)

$

$

Not available

70

Electrolux/AYP 137159

Guide, Belt Mid Span
(Superseded to 532177679)

$3.49

$

In Stock, only 2 left!

0

84

Electrolux/AYP 142992

Stop, Over Center Mower
(Superseded to 532142992)

$

$

Not available

86

Electrolux/AYP 74760716

Bolt, Fin Hex 7/16-14 Unc x 1
(Superseded to 874780716)

$

$

Not available

90

Electrolux/AYP 11050600

Washer, Lock External Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 170755

Rail, Frame Lh
(Superseded to 532180374)

$

$

Not available

92

Electrolux/AYP 170087X010

Plate, Silkscreen Dash

$

$

Not available

98

Electrolux/AYP 140503

Bracket Chassis Skid
(Superseded to 175847)

$

$

Not available

99

Electrolux/AYP 140871

Rod Asm. Bypass
(Superseded to 532140871)

$

$

Not available

100

Electrolux/AYP 71673

Cap By Pass Rod
(Superseded to 532071673)

$5.99

$

In Stock, only 2 left!

0

101

Electrolux/AYP 17490628

Screw Thdrol. 3/8-16 x 1-3/4
(Superseded to 817490628)

$

$

Not available

102

Electrolux/AYP 4497H

Retainer Spring 1"
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

103

Electrolux/AYP 142273

Bracket Lock Bypass
(Superseded to 532142273)

$

$

Not available

106

Electrolux/AYP 138776

Screw Thdrol Hex Head Zinc
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

130

Electrolux/AYP 164863

Screw Hw Hd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$20.99

$

Usually ships in 3-10 days

0

138

Electrolux/AYP 163975X428

Cupholder
(Superseded to 583710501)

$

$

Not available

139

Electrolux/AYP 161330

Bolt Shoulder 5/16-18
(Superseded to 532179032)

$5.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 19131414

Washer Flat 13/32 x 7/8 x 14 Ga.
(Superseded to 819131414)

$3.99

$

In Stock, only 3 left!

0

155

Electrolux/AYP 17490612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

Electrolux/AYP 8022J

Plug, Hole
(Superseded to 532125085)

$

$

Not available
