PRO HW 300 348 (55RI6HNS050) - Cub Cadet Walk-Behind Mower (2018) Frame Parts Diagram

Walk-Behind Mower

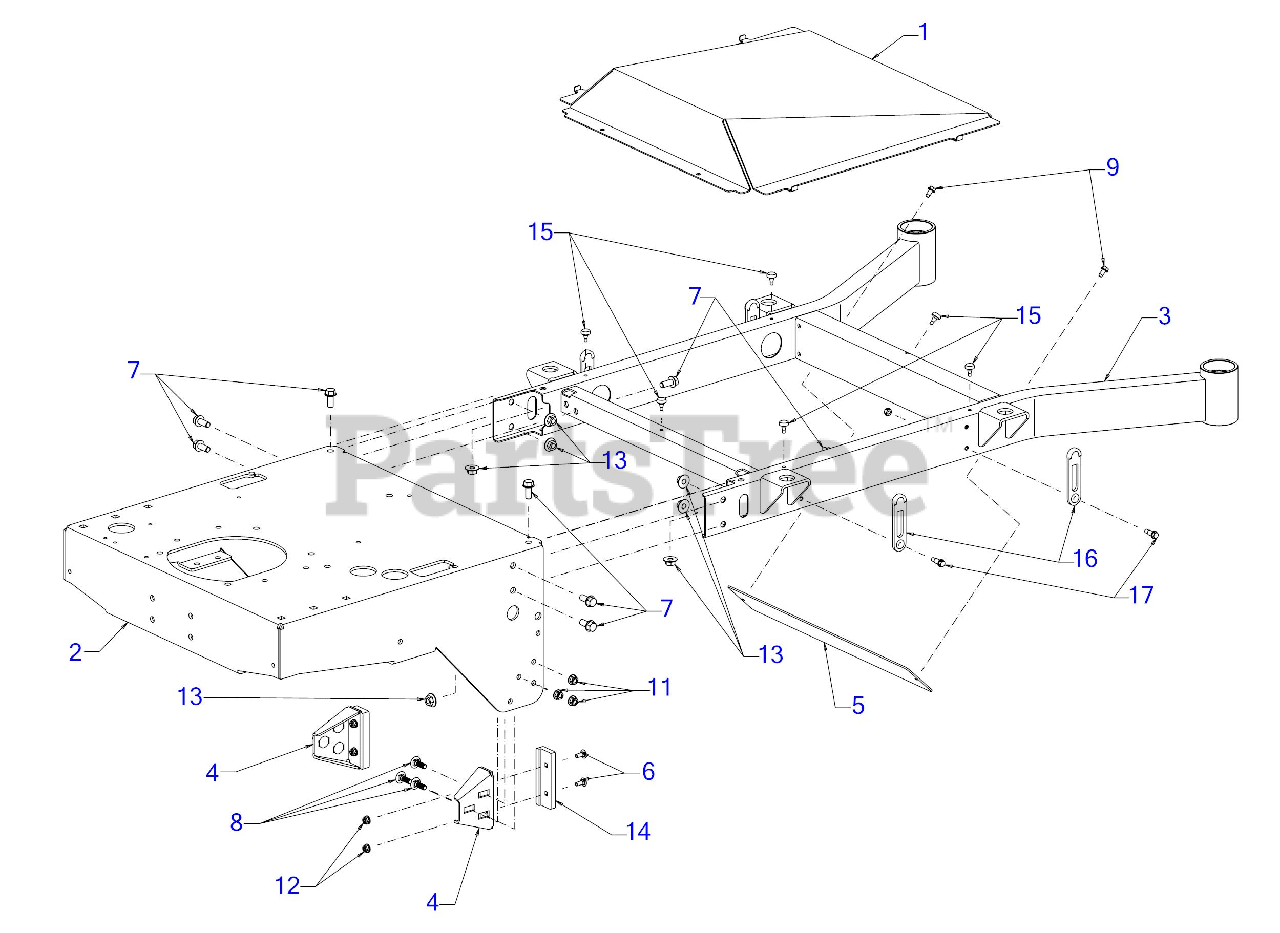

Frame Parts Diagram

  • Title

1

Cub Cadet 680-00541

DECK COVER ASSEMBLY
(Superseded to 680-00541A-4021)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00541-4021

YELLOW DECK COVER ASS - CUB YELLOW 2 (4021)

$223.99

$

Usually ships in 3-6 days

0

$223.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00546

ENGINE/TRANSMISSION FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00546-4021

YELLOW ENGINETRANSMIS - CUB YELLOW 2 (4021)

$460.99

$

Usually ships in 3-6 days

0

$372.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00547

FRONT FRAME ASSEMBLY
(Superseded to 759-05522)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00547-4021

YELLOW FRONT FRAME AS - CUB YELLOW 2 (4021)

$1089.99

$

Usually ships in 3-6 days

0

$1089.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00557

DECK BUMPER BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00557-4021

YELLOW DECK BUMPER BR - CUB YELLOW 2 (4021)

$81.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-11585

BACK LOGO PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-11585-4021

YELLOW BACK LOGO PLAT - CUB YELLOW 2 (4021)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 912-0291

HEX NUT
(Superseded to 712-0291)

$

$

Not available

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 731-13170

BUMPER PAD

$21.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, Qty 15

0

16

Cub Cadet 735-05226

COVER STRAP 2.50 LONG

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 738-04395

SHOULDER SCREW

$4.49

$

Usually ships in 3-6 days

0
