PRO X 600 KW 636 (53RZ3CSB050) - Cub Cadet Pro X 36" Stand-On Mower, Kawasaki, 18.5hp (2021) Controls Parts Diagram

Pro X 36" Stand-On Mower, Kawasaki, 18.5hp

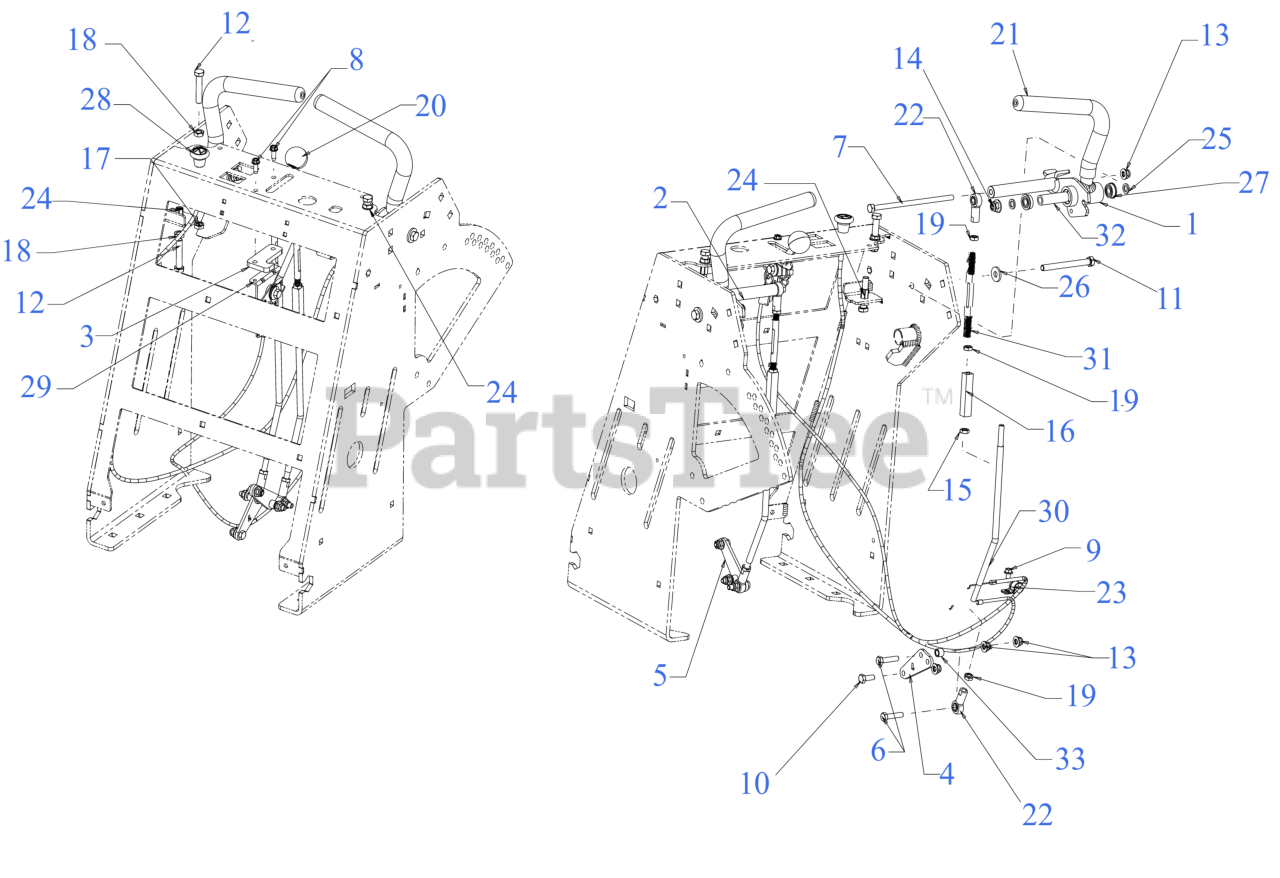

Controls Parts Diagram

  • Title

1

Cub Cadet 680-02357

CONTROL HANDLE (LH)
(Superseded to 680E02357)

$96.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-02358

CONTROL HANDLE (RH)
(Superseded to 680E02358)

$96.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703E14941

THROTTLE STOP SPACER

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-25159

PUMP ARM PLATE (LH)
(Superseded to 703E25159)

$19.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-25160

PUMP ARM PLATE (RH)
(Superseded to 703E25160)

$19.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-06071

SCREW 5/16-18 x 6.00 GR5

$5.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3184A

SCREW 3/8-16 x 2 GR5

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-05941

HEX JAM NUT 5/16-24 GR5

$2.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-07046

TURNBUCKLE 5/16-24 x 2.75

$38.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3008

HEX NUT

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3025

HEX JAM NUT 5/16-24 GR 5

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 720-05110

BALL KNOB

$20.99

$

In Stock, only 3 left!

0

21

Cub Cadet 720-05321A

GRIP .75ID x 1.0OD
(Superseded to 720P05321A)

$9.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 723-04039

ROD END 5/16 ID

$53.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 726-0272

CLAMP

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 728-05168

RIV NUT 3/8-16

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0140

FLAT WASHER

$6.99

$

In Stock, Qty 8

0

26

Cub Cadet 736-3072

WASHER

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 741-04568

FLANGE BEARING

$35.99

$

In Stock, only 1 left!

0

28

Cub Cadet 946-05341B

CHOKE CABLE

$64.99

$

In Stock, Qty 5

0

29

Cub Cadet 946-05434

THROTTLE CABLE

$83.99

$

In Stock, only 3 left!

0

30

Cub Cadet 747-10990

CONTROL ROD (LOWER)

$68.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-11110

CONTROL ROD (UPPER)

$43.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-07430

SPACER .379 x .63 x 1.957

$4.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 750-10290

SPACER 0.329 x 0.505 x 0.380

$64.99

$

Usually ships in 3-6 days

0
