PRO X 600 KW 636 (53RZ3CSB050) - Cub Cadet Pro X 36" Stand-On Mower, Kawasaki, 18.5hp (2023) Dash Parts Diagram

Pro X 36" Stand-On Mower, Kawasaki, 18.5hp

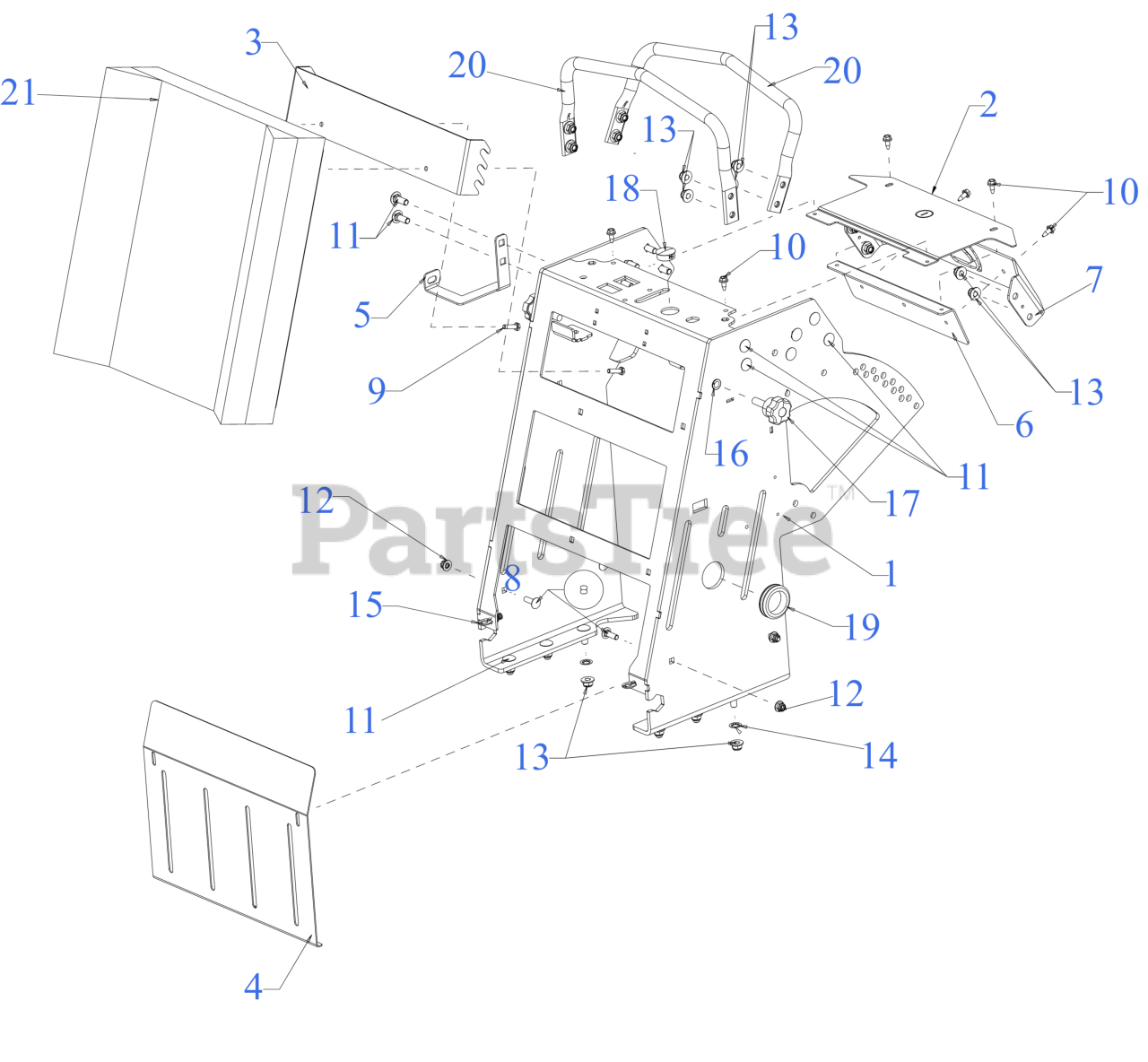

Dash Parts Diagram

  • Title

1

Cub Cadet 680-02334

CONTROL BASE

Note: *CHOOSE COLOR WHEN ORDERING*

$603.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-25152A

DASH PANEL

Note: *CHOOSE COLOR WHEN ORDERING*

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-25156

LEG PAD BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$24.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-25158

REAR COVER BRACKET (LOWER)

Note: *CHOOSE COLOR WHEN ORDERING*

$48.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-26818

FUEL TANK BRACKET (UPPER)

Note: *CHOOSE COLOR WHEN ORDERING*

$14.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E27481

DASH SUPPORT BRACKET

$17.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-27585

CONTROL BASE (FRONT)

Note: *CHOOSE COLOR WHEN ORDERING*

$42.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 18

0

10

Cub Cadet 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0229

PUSH NUT

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet 726-05561

PANEL LATCH

$32.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 728-05168

RIV NUT 3/8-16

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-05131A

SEAT ADJUST KNOB 3/8-16 x 1.50

$13.99

$

In Stock, only 1 left!

0

18

Cub Cadet 731-11225

PANEL PLUG

$5.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 749-09095

CRUISE TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

$32.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 757-05927

LEG PAD

$301.99

$

Usually ships in 3-6 days

0
