PRO X 600 KW 636 (53RZ3CSB050) - Cub Cadet Pro X 36" Stand-On Mower, Kawasaki, 18.5hp (2023) Drive Parts Diagram

Pro X 36" Stand-On Mower, Kawasaki, 18.5hp

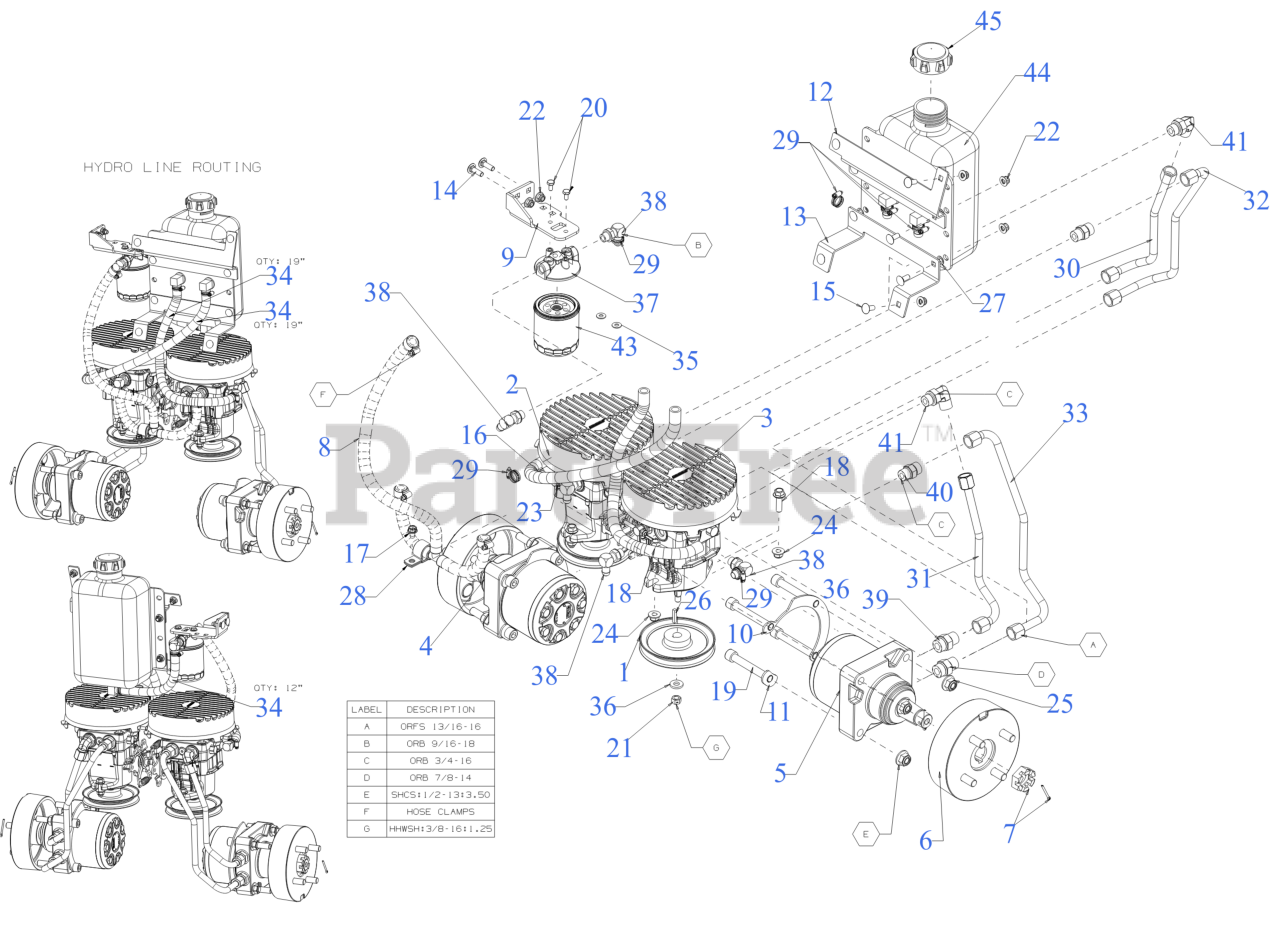

Drive Parts Diagram

  • Title

1

Cub Cadet 02001172

PULLEY-HYDRO PUMP

$96.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618P08253

HYDRO PUMP (RH)

Note: Ignore LH/RH designator in this case. Parts are used on unit backward from original purpose(See Separate Breakdown)

$2022.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618P08254

HYDRO PUMP (LH)

Note: Ignore LH/RH designator in this case. Parts are used on unit backward from original purpose(See Separate Breakdown)

$2022.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618P09675A

HYDRO MOTOR W/O BRAKE (LH)

Note: (See Separate Breakdown)

$1820.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 618P09676A

HYDRO MOTOR W/O BRAKE (RH)

Note: (See Separate Breakdown)

$1957.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 618P09944

WHEEL HUB

$184.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 618P09946

HUB MOUNT HARDWARE

$15.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 627-00101A

HYDRO DRAIN HOSE

$

$

Not available

8

Cub Cadet 02002392

HOSE CLAMP

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703E14981

FILTER MOUNT BRACKET

$20.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703E24624

WHEEL MOTOR SHIM PLATE

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 703E24625

WHEEL MOTOR LOWER SHIM PLATE

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703E25125

OIL RESERVOIR BRACKET

$23.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703E25126

OIL RESERVOIR BRACKET (LOWER)

$20.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0501

SCREW 1/4-20 x 2 GR5

$7.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-06359A

SCREW 3/8-16 x 1.25 GR5

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 710-09534

HEX CAP SCREW 1/2"-13x3.5

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-3013

SCREW 1/4-20X.5 GR5

$4.99

$

In Stock, Qty 7

0

21

Cub Cadet 712-0214

HEX NUT

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 914-0105

SQUARE KEY 3/16 x 1.00

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 726-0201

PUSH NUT

$7.49

$

In Stock, Qty 20+

0

28

Cub Cadet 726-0475

HOSE CLAMP 1.0"

$14.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 726-05015

HOSE CLAMP .75 ID

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 727-05734

HYDRO TUBE (OUTSIDE) (LH)

$66.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 727-05735

HYDRO TUBE (OUTSIDE) (RH)

$61.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 727-05736

HYDRO TUBE (INSIDE) (LH)

$61.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 727-05737

HYDRO TUBE (INSIDE) (RH)

$65.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 727-05754-12

HYDRAULIC BULK HOSE 12"

$21.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 727-05754-19

HYDRAULIC BULK HOSE 19"

$33.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-04446

FLAT WASHER

$4.99

$

In Stock, Qty 17

0

36

Cub Cadet 736-3004

FLAT WASHER

$4.99

$

In Stock, Qty 14

0

37

Cub Cadet 937-04011

OIL FILTER ADAPTER

$49.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 737-05590

ELBOW FITTING

$56.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 737P05711

HYDRO FITTING 8 ORFS x 10 ORB

$16.99

$

In Stock, only 1 left!

0

40

Cub Cadet 737-05791

HYDRAULIC FITTING

$17.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 737-05792

HYDRAULIC ELBOW ADAPTOR

$25.99

$

Usually ships in 3-6 days

0

43

Cub Cadet HG-51563

HYDRAULIC FILTER
(Superseded to 751-17566)

$

$

Not available

44

Cub Cadet 751P17606

HYDRO OIL TANK (1 GAL)

$231.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 751P3111

HYDRO TANK CAP

$24.99

$

Usually ships in 3-6 days

0
