PRO X 600 KW 636 (53RZ3CSB050) - Cub Cadet Pro X 36" Stand-On Mower, Kawasaki, 18.5hp (2023) Frame Parts Diagram

Pro X 36" Stand-On Mower, Kawasaki, 18.5hp

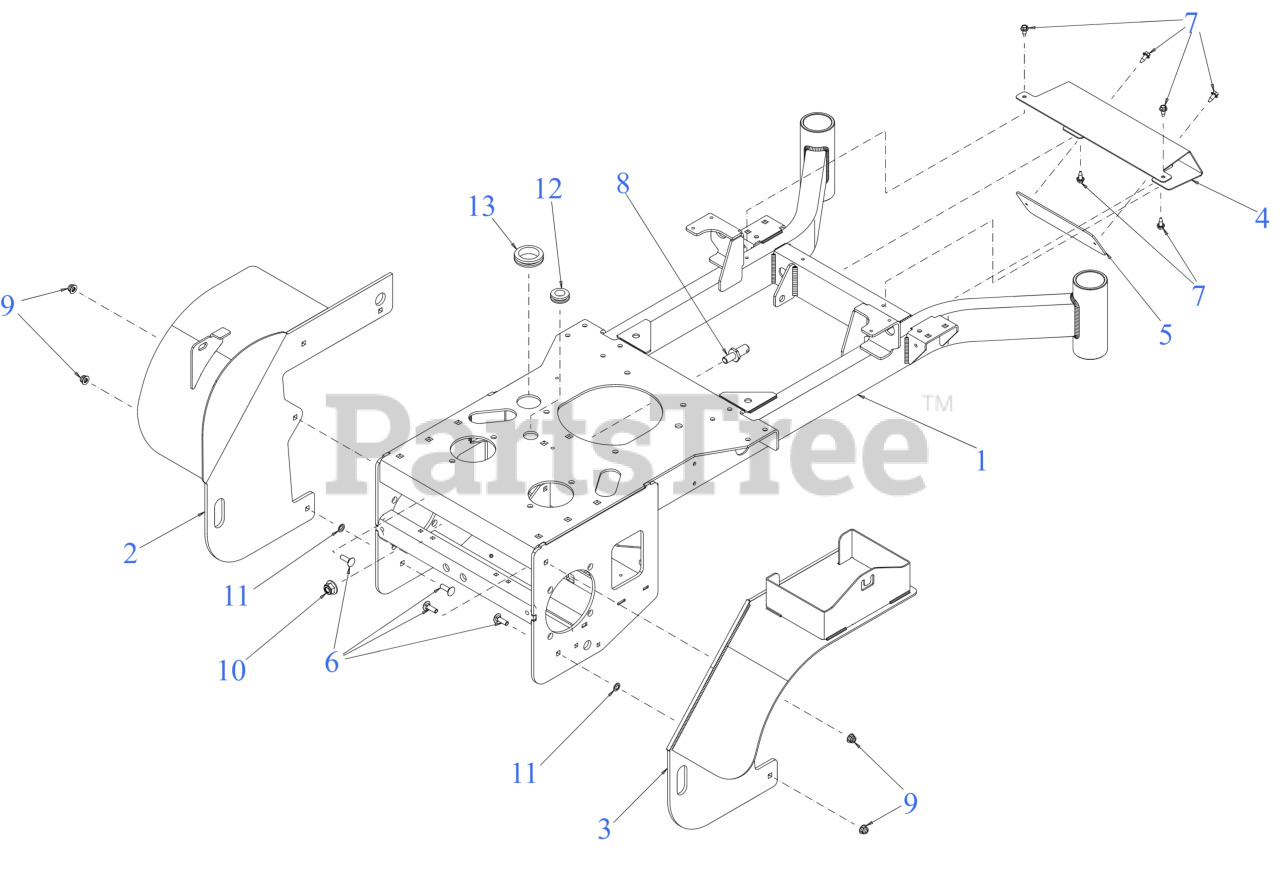

Frame Parts Diagram

  • Title

1

Cub Cadet 680-02294

FRAME
(Superseded to 680-02294A)

Note: *CHOOSE COLOR WHEN ORDERING*

$1892.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-02380

FENDER (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$206.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-02381

FENDER (RH)
(Superseded to 680-02381A)

Note: *CHOOSE COLOR WHEN ORDERING*

$206.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-25154

LOGO BRACKET (FRONT)

$47.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-25155

BACK PLATE
(Superseded to 703E25155)

$8.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 13

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 726-0201

PUSH NUT

$7.49

$

In Stock, Qty 20+

0

12

Cub Cadet 735-04285

RUBBER GROMMET

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$5.49

$

Usually ships in 3-6 days

0
