PRO X 600 KW 648 (53AI8CSF050) - Cub Cadet Pro X 48" Stand-On Mower, Kawasaki, 18.5hp (2020) Frame Parts Diagram

Pro X 48" Stand-On Mower, Kawasaki, 18.5hp

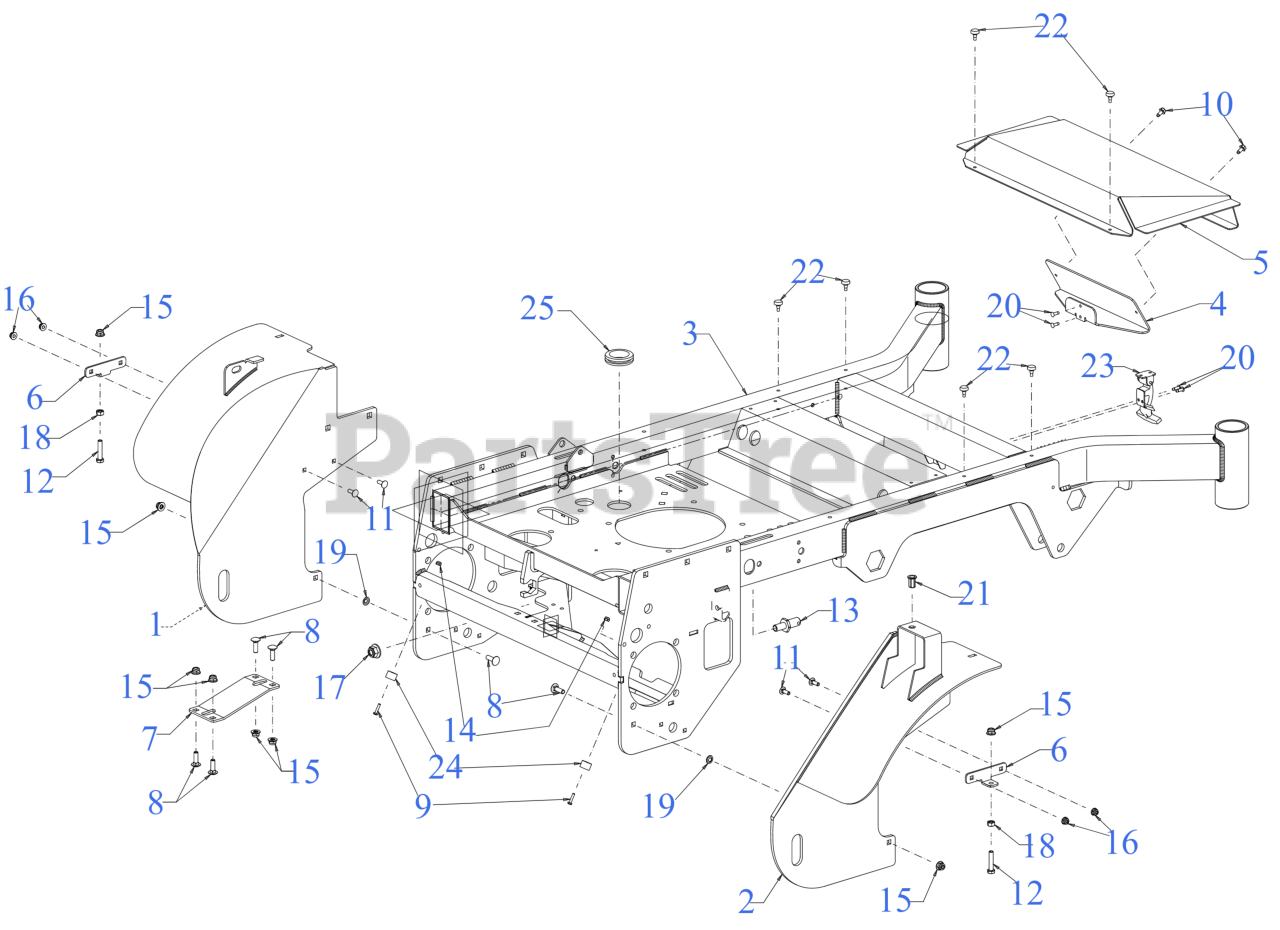

Frame Parts Diagram

  • Title

1

Cub Cadet 680-01154

FENDER (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$246.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-01214

FENDER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$246.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-01614

FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

$2592.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E15641

BACK PLATE

$25.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-15642

FRONT COVER
(Superseded to 703-15642A)

Note: *CHOOSE COLOR WHEN ORDERING*

$72.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E20184

BRAKE SPRING BRACKET (RH)

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703E21504

SUPPORT BRACKET

$15.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04879

SCREW #8-32 x .750

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 12

0

12

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 11

0

14

Cub Cadet 712-04035

NUT

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 19

0

18

Cub Cadet 712-3010

HEX NUT 5/16-18

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 726-0201

PUSH NUT

$7.49

$

In Stock, Qty 20+

0

20

Cub Cadet 928-0123

POP RIVET

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 728-05168

RIV NUT 3/8-16

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 735-0199A

RUBBER BUMPER

$8.49

$

In Stock, Qty 18

0

23

Cub Cadet 935-04038

HOOD LATCH ASSEMBLY

$16.99

$

In Stock, Qty 20+

0

24

Cub Cadet 735-04287

RUBBER BUMPER

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$5.49

$

Usually ships in 3-6 days

0
