PRO X 600 KW 648 (53AI8CSF050) - Cub Cadet Pro X 48" Stand-On Mower, Kawasaki, 18.5hp (2023) Belts, Blades & Spindles Parts Diagram

Pro X 48" Stand-On Mower, Kawasaki, 18.5hp

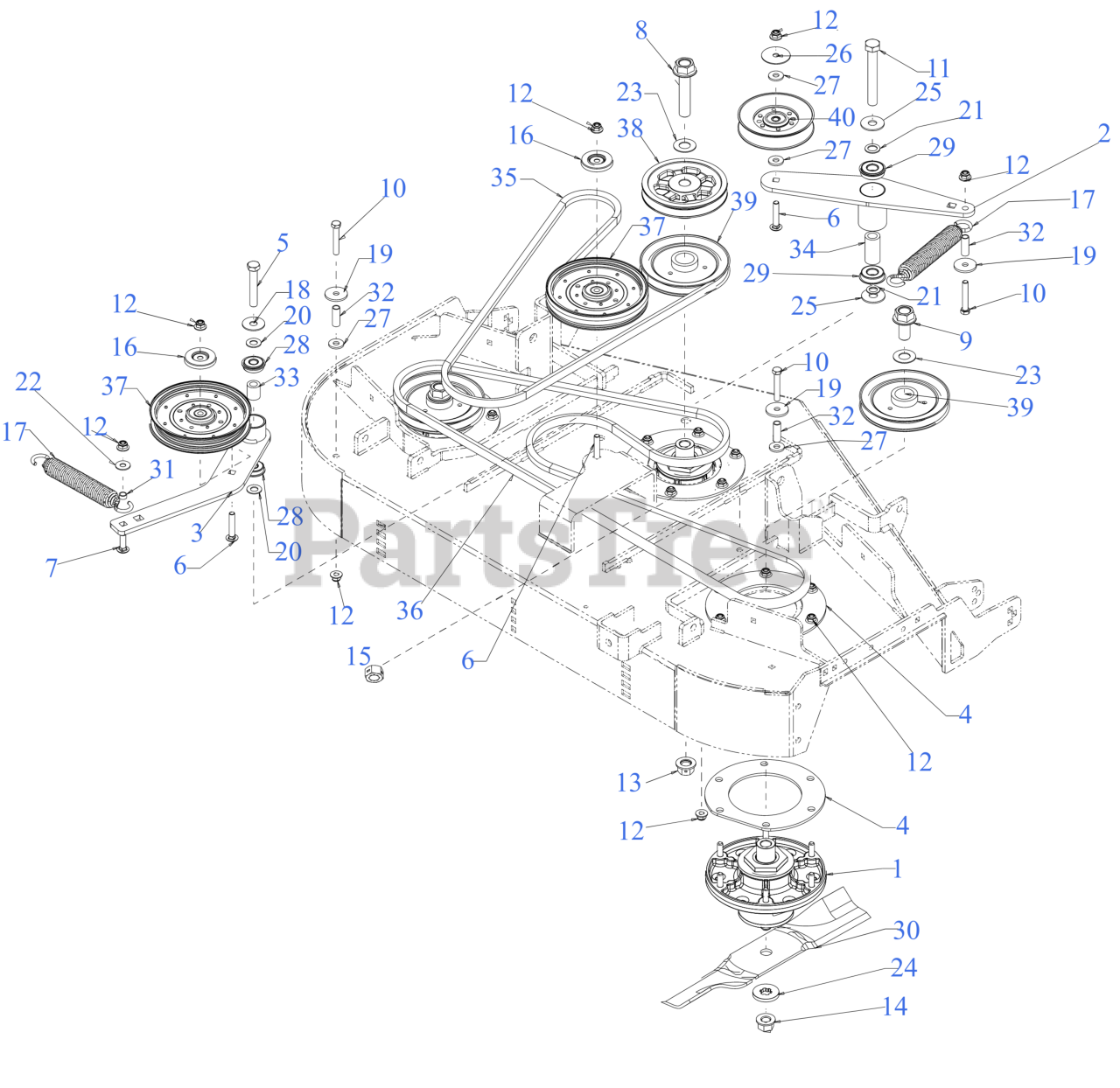

Belts, Blades & Spindles Parts Diagram

  • Title

1

Cub Cadet 918-08473

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$335.99

$

In Stock, Qty 8

0

2

Cub Cadet 680E00874

IDLER BRACKET

$88.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680E01994

48" DECK IDLER BRACKET

$73.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E11199

SPINDLE SUPPORT BRACKET TOP/BTM

$46.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-04157

CARRIAGE BOLT 3/8-16 x 2

$8.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-08054

CAP SCREW-HHFLG 3/4-10 X 3.50 GR8

$15.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-08055

CAP SCREW-HHFLG 3/4-10 X 1.50 GR8

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3151A

SCREW 5/8-18X4.5 GR5

$16.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04327

NUT

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-05203

FLANGE NUT - 5/8-18 GDE 8

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 721-04516

PULLEY CAP

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG

$34.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0208

WASHER .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

19

Cub Cadet 736-0227

FLAT WASHER .390x1.500x.134

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0272

FLAT WASHER .510 x .995

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0290

FLAT WASHER

$6.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 736-0445

FLAT WASHER

$3.99

$

In Stock, only 3 left!

0

24

Cub Cadet 736-05223A

FLAT WASHER - SPECIAL

$6.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-05210

FLAT WASHER 0.635xX1.755x0.110

Note: (5/1/22 & Before)

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-05255

THRUST WASHER .635x1.750x0.055

Note: (5/1/22 & After)

$1.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$5.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 941-0563

BALL BEARING W/RET

$33.99

$

In Stock, Qty 20+

0

30

Cub Cadet 942-04417

17" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

30

Cub Cadet 490-110-C185

Cub Cadet 48" HI LIFT BLADE SET

Note: Retail Packaged Part

$86.99

$

In Stock, only 1 left!

0

30

Cub Cadet 942-04417-ES

17" HI-LIFT BLADE 0.756 ID
(Superseded to 742-04417-ES)

$50.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 742P04417-L

LOW-LIFT 17" BLADE (48"DECK)

$27.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02005017-X

BLADE-HI LIFT 17.0
(Superseded to 02005017P-X)

$29.99

$

In Stock, Qty 11

0

30

Cub Cadet 942-04278A

17" BLADE (MULCH)
(Superseded to 742P04278A-X)

$39.99

$

In Stock, Qty 6

0

31

Cub Cadet 750-0526

SPACER

$4.49

$

In Stock, Qty 10

0

32

Cub Cadet 750-05673

SPACER

$7.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-06716

SPACER 0.63 x 1.00 x 2.01

$6.49

$

In Stock, only 1 left!

0

35

Cub Cadet 754P06034

BELT B SEC x 87.30

$87.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 754P06514

BELT B SEC X 109.9

$115.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 756-04487

IDLER PULLEY

$62.99

$

In Stock, only 4 left!

0

38

Cub Cadet 756-04497

DRIVE PULLEY

$118.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 756-04500

SPINDLE PULLEY 6"

$31.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 756-04522

IDLER PULLEY 5.06 OD

$36.99

$

In Stock, Qty 17

0
