PRO X 600 KW 648 (53AI8CSF050) - Cub Cadet Pro X 48" Stand-On Mower, Kawasaki, 18.5hp (2023) Discharge Chute Parts Diagram

Pro X 48" Stand-On Mower, Kawasaki, 18.5hp

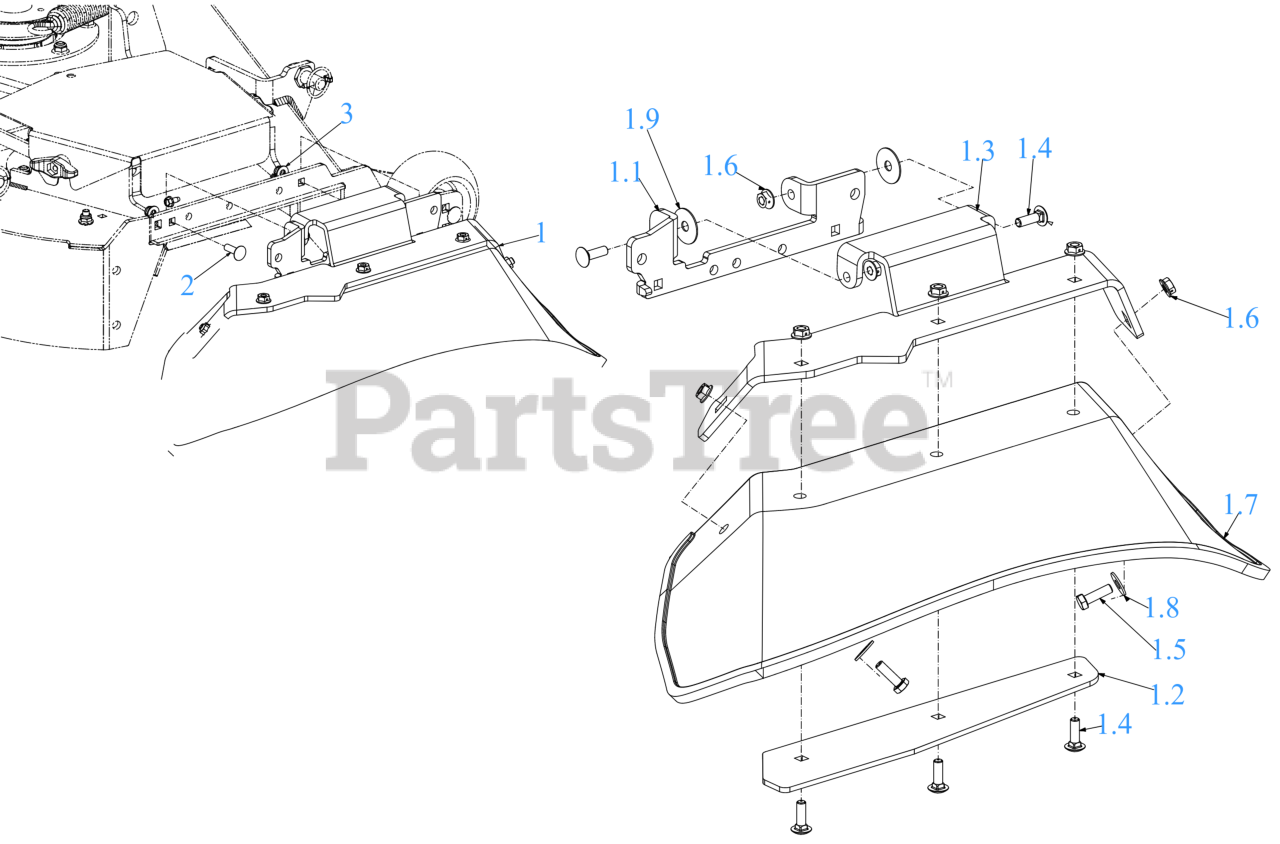

Discharge Chute Parts Diagram

  • Title

1

Cub Cadet 931-05396D

DECK CHUTE ASSEMBLY

$278.99

$

Usually ships in 3-6 days

0

1.1

Cub Cadet 703-10371D

CHUTE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

703-10371D-4021

Cub Cadet 703-10371D-4021

YELLOW CHUTE BRACKET - CUB YELLOW 2 (4021)

$57.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

1.2

Cub Cadet 703-10868

CHUTE SUPPORT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

703-10868-4021

Cub Cadet 703-10868-4021

YELLOW CHUTE SUPPORT - CUB YELLOW 2 (4021)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

1.3

CHUTE BRACKET

Note: (Not Serviceable Seperately)

$

$

Not available

1.4

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

1.5

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

1.6

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

1.7

Cub Cadet 735-05165

FIBER FORMED CHUTE

$96.99

$

In Stock, only 3 left!

0

1.8

Cub Cadet 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

1.9

Cub Cadet 736-04639

WASHER .355X1.25X.048THK

$3.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0
