PRO X 600 KW 654 (53AI8CSA050) - Cub Cadet Pro X 54" Stand-On Mower, Kawasaki, 25.5hp (2020) Platform Parts Diagram

Pro X 54" Stand-On Mower, Kawasaki, 25.5hp

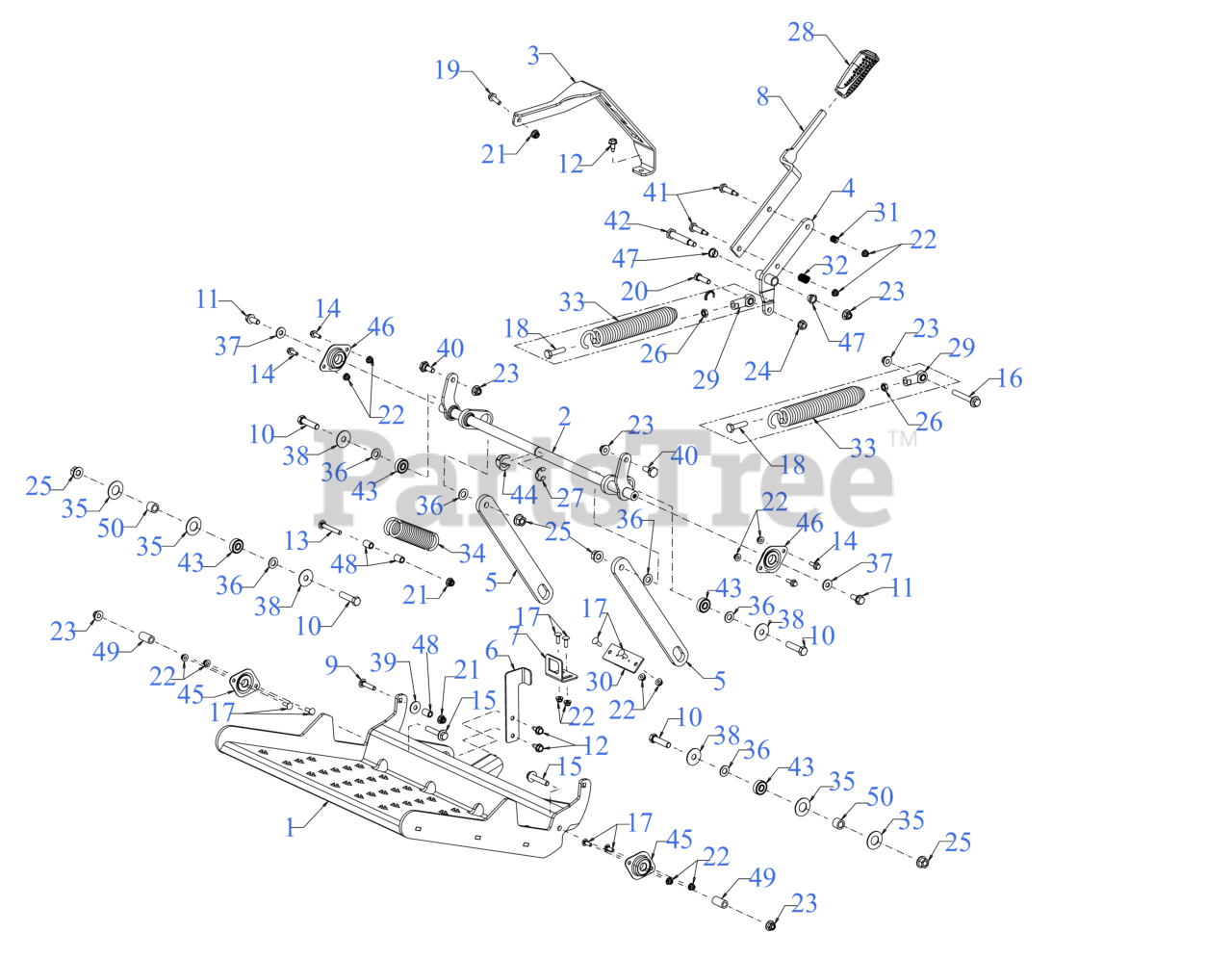

Platform Parts Diagram

  • Title

1

Cub Cadet 680-00715

PLATFORM ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$425.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680E01514

ROLLER LINK

$102.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680E01714

ADJUSTMENT INDEX

$83.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-01754

ADJUSTMENT ARM
(Superseded to 680E01754)

$43.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E19407

SUSPENSION LINK

$15.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E19785

SWITCH BRACKET

$8.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 703E19984

SWITCH BRACKET MOUNT

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-20365

ADJUSTMENT SPRING LEVER
(Superseded to 703E20365)

$15.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

10

Cub Cadet 710-04092

SCREW 7/16-20 x 1.75 GR 5

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0572

BOLT 5/16-18 x 2.50 GR1

$3.99

$

In Stock, Qty 5

0

14

Cub Cadet 710-04666

SCREW 1/4-20 x .75 GR5

$6.49

$

In Stock, Qty 9

0

15

Cub Cadet 710-06178

SCREW 3/8-16 x 2.0

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-06214

SCREW 3/8-16 x 2.75 GR5

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1044

SCREW 3/8-24 x 1.50 GR8

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 10

0

20

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 912-0431

HEX LOCK NUT

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0459

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

28

Cub Cadet 720-04139B

GRIP

$17.99

$

In Stock, Qty 6

0

29

Cub Cadet 723-04038

ROD END 3/8 ID

$56.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-04016

SUSPENSION BUMPER

$41.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 932-0334

COMPRESSION SPRING
(Superseded to 732-0334)

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet 732-04756

COMPRESSION SPRING

$3.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 732-04959

ADJUSTMENT SPRING

$49.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 732P07126

EXTENSION SPRING 1.478 x 5.729

$16.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0188

FLAT WASHER .760ID X1.49OD x .06

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 936-0226

FLAT WASHER

$3.99

$

In Stock, only 3 left!

0

37

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 936-0406

FLAT WASHER

$6.49

$

In Stock, Qty 11

0

39

Cub Cadet 736-3078

FLAT WASHER 344X1.00

$3.99

$

In Stock, Qty 16

0

40

Cub Cadet 938-0380

SHOULDER SCREW
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 18

0

41

Cub Cadet 938-0572

SHOULDER SCREW
(Superseded to 738-0572)

$

$

Not available

42

Cub Cadet 738-1011A

SHOULDER SCREW .50 x 2.23 3/8-16

$7.99

$

In Stock, Qty 12

0

43

Cub Cadet 741P04245

BALL BEARING

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 741-04504

HEX FLANGE SPLIT BEARING

$8.49

$

In Stock, only 3 left!

0

45

Cub Cadet 741-04566

BALL BEARING

$14.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 741-04569

BALL BEARING

$24.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 741-0491

NYLINER BEARING

$4.99

$

In Stock, Qty 20+

0

48

Cub Cadet 750-06170

SLEEVE .33X.50X.75 LG

$4.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-08410

SPACER .380x.624x1.040

$4.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 750-08850

SPACER .465x.760x.550

$3.49

$

Usually ships in 3-6 days

0
