PRO X 600 KW EFI 654 (53RL8CSA050) - Cub Cadet Pro X 54" Stand-On Mower, Kawasaki EFI, 25.5hp (2021) Belts, Blades & Spindles Parts Diagram

Pro X 54" Stand-On Mower, Kawasaki EFI, 25.5hp

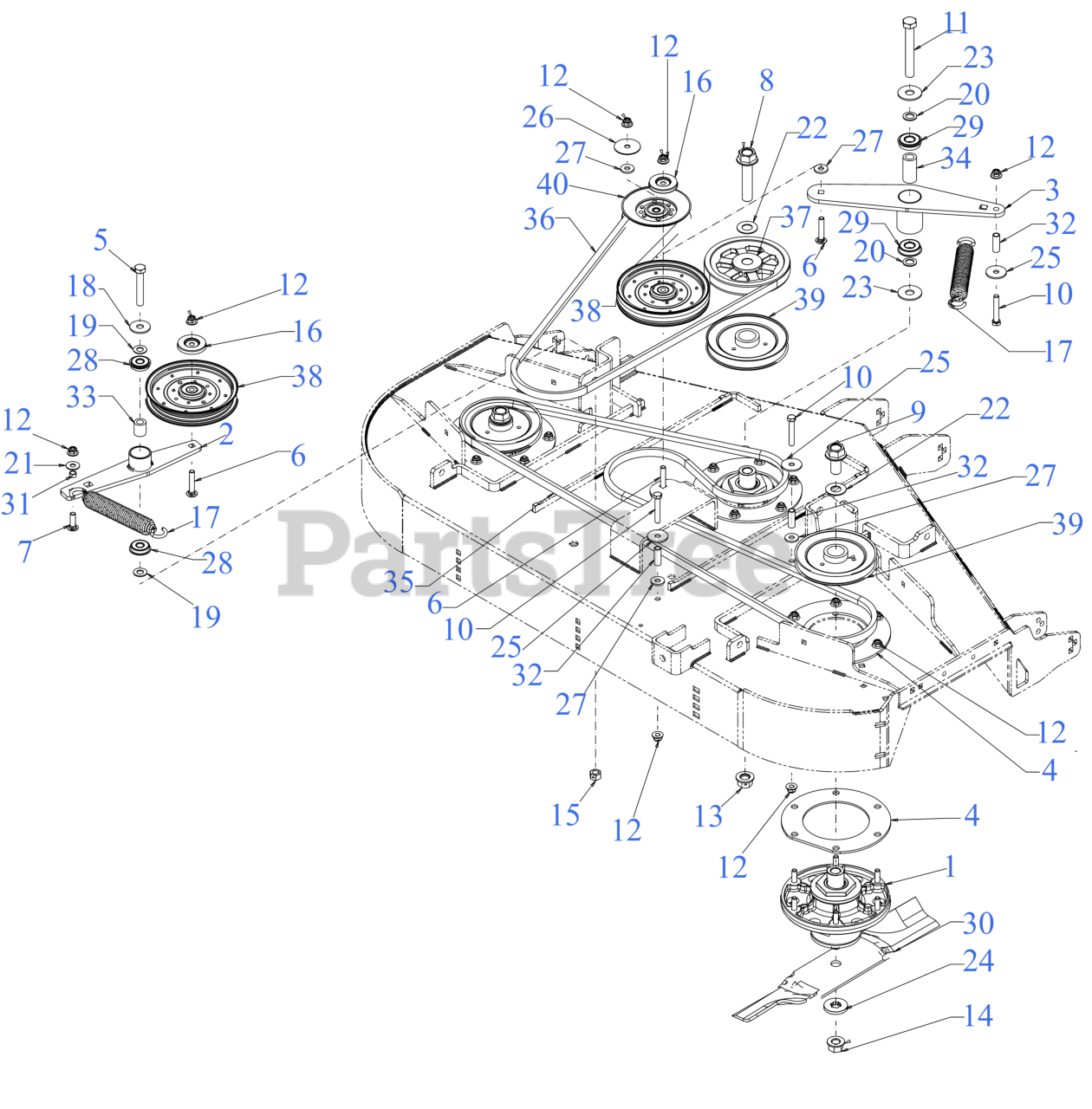

Belts, Blades & Spindles Parts Diagram

  • Title

1

Cub Cadet 918-08473

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$335.99

$

In Stock, Qty 8

0

2

Cub Cadet 680E00522A

IDLER BRACKET

$56.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680E00874

IDLER BRACKET

$88.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E11199

SPINDLE SUPPORT BRACKET TOP/BTM

$46.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-04157

CARRIAGE BOLT 3/8-16 x 2

$8.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-08054

CAP SCREW-HHFLG 3/4-10 X 3.50 GR8

$15.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-08055

CAP SCREW-HHFLG 3/4-10 X 1.50 GR8

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3151A

SCREW 5/8-18X4.5 GR5

$16.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04327

NUT

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-05203

FLANGE NUT - 5/8-18 GDE 8

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 721-04516

PULLEY CAP

$13.99

$

In Stock, only 1 left!

0

17

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG

$34.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0208

WASHER .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

19

Cub Cadet 736-0272

FLAT WASHER .510 x .995

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0290

FLAT WASHER

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

In Stock, only 1 left!

0

22

Cub Cadet 736-0445

FLAT WASHER

$3.99

$

In Stock, only 3 left!

0

23

Cub Cadet 736-05210

FLAT WASHER 0.635xX1.755x0.110

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-05223A

FLAT WASHER - SPECIAL

$6.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-3039

FLAT WASHER .406X1.500X.105

$4.99

$

In Stock, Qty 18

0

26

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$5.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$11.99

$

In Stock, only 1 left!

0

29

Cub Cadet 941-0563

BALL BEARING W/RET

$33.99

$

In Stock, Qty 20+

0

30

Cub Cadet 942-04416

19" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

30

Cub Cadet 490-110-C186

Cub Cadet 54" HI LIFT BLADE SET

Note: Retail Packaged Part

$99.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 942-04416-XG

19" BLADE (HI LIFT)

$

$

Not available

30

Cub Cadet 742-04416-ES

19" BLADE (HI LIFT)

$52.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 742P04416-L

LOW-LIFT 19"BLADE (54"DECK)

$28.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02005018-X

BLADE- HI LIFT 19.0 XTREME
(Superseded to 02005018P-X)

$24.99

$

In Stock, Qty 9

0

30

Cub Cadet 01005380

BLADE-19"MULCH 54"
(Superseded to 01005380P-X)

$42.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01005380P-X

19" XTREME BLADE

$42.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 750-0526

SPACER

$4.49

$

In Stock, Qty 10

0

32

Cub Cadet 750-05673

SPACER

$7.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-06716

SPACER 0.63 x 1.00 x 2.01

$6.49

$

In Stock, only 1 left!

0

35

Cub Cadet 954-04327

BELT-B SECTION 119.45"

$119.99

$

In Stock, only 1 left!

0

36

Cub Cadet 754P06074

BELT SEC B x 90.30

$99.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 756-04485

PULLEY-6.96 OD x .750 ID

$159.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 756-04487

IDLER PULLEY

$62.99

$

In Stock, Qty 5

0

39

Cub Cadet 756-04500

SPINDLE PULLEY 6"

$31.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 756-04522

IDLER PULLEY 5.06 OD

$36.99

$

In Stock, Qty 18

0
