PRO X 600 KW EFI 660 (53RL8CSU050) - Cub Cadet Pro X 60" Stand-On Mower, Kawasaki EFI, 25.5hp (2022) Tower Parts Diagram

Pro X 60" Stand-On Mower, Kawasaki EFI, 25.5hp

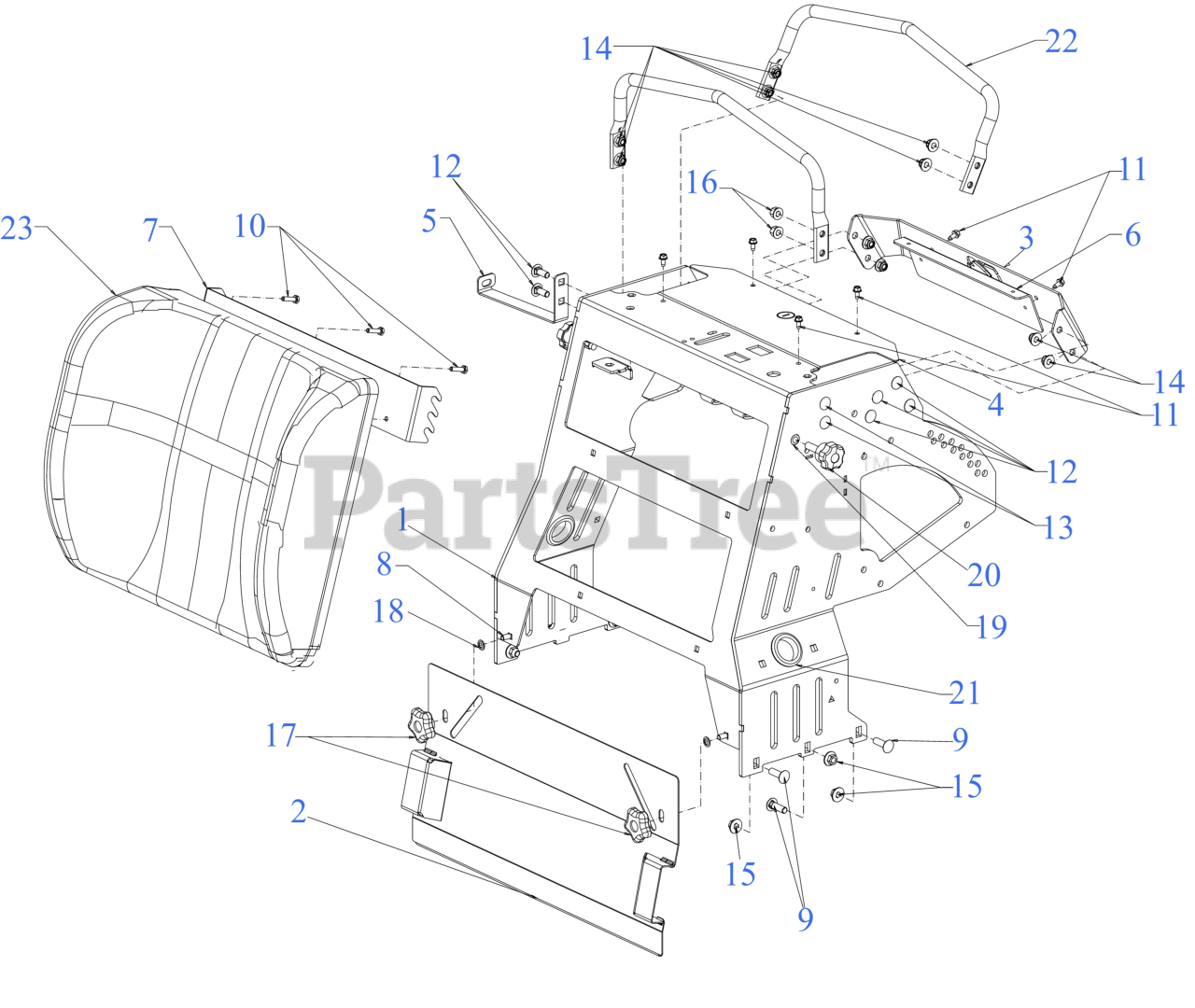

Tower Parts Diagram

  • Title

1

Cub Cadet 680-00674B

CONTROL BASE

Note: *CHOOSE COLOR WHEN ORDERING*

$551.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-01634

PANEL COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$158.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-12727

BASE CONTROL

Note: *CHOOSE COLOR WHEN ORDERING*

$37.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-12728

DASH PANEL

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

5

Cub Cadet 703-12807A

TANK SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E13401

DASH SUPPORT

Note: 1/7/22 & Before

$17.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E27558

DASH SUPPORT

Note: 1/7/22 & After

$18.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-13441A

PAD MOUNT

Note: *CHOOSE COLOR WHEN ORDERING*

$36.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-05007

NUT-CTRLCK FLG HEX

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 720-04072A

STAR KNOB 5/16-18

$7.49

$

In Stock, Qty 20+

0

18

Cub Cadet 726-0201

PUSH NUT

$7.49

$

In Stock, Qty 20+

0

19

Cub Cadet 728-05168

RIV NUT 3/8-16

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-05131A

SEAT ADJUST KNOB 3/8-16 x 1.50

$14.99

$

In Stock, only 3 left!

0

21

Cub Cadet 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 749-07354

TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

$63.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 757P05127

LEG PAD

$598.99

$

Usually ships in 3-6 days

0
