PRO Z 100 EFI 148-S (53RWEFJF050) - Cub Cadet 48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2017) Front Axle Parts Diagram

48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

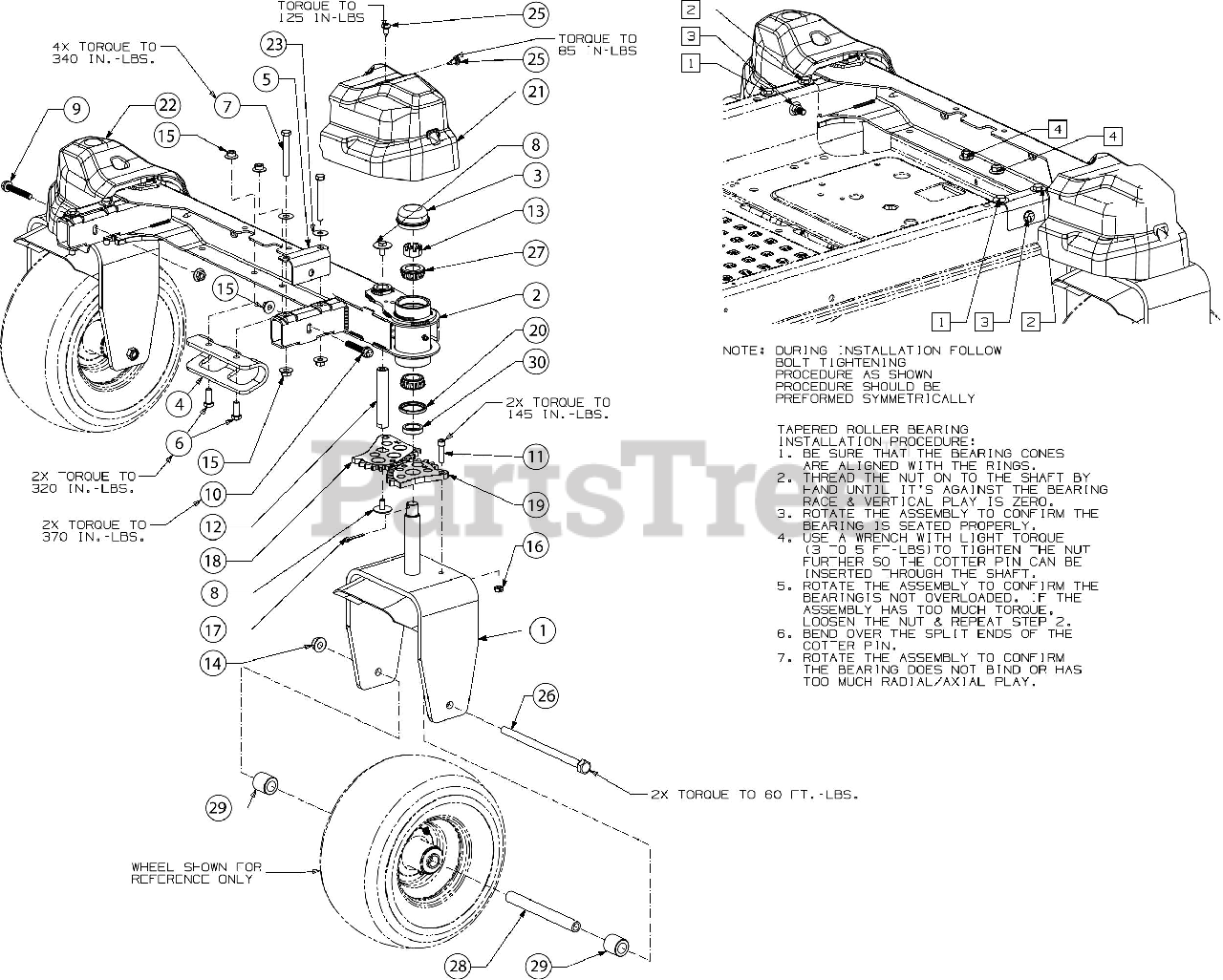

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-05267

FRONT CASTER BRACKET ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05267-4021

FRONT CASTER BRACK - CUB YELLOW 2 (4021)

$209.99

$

Usually ships in 3-6 days

0

$169.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 903-05275

FRONT AXLE
(Superseded to 903-05275A)

$600.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 737-04345

GREASE ZERT 1/4-28

Note: (Not Shown)

$4.99

$

In Stock, Qty 6

0

3

Cub Cadet 703-10384

AXLE GREASE CAP

$15.99

$

In Stock, Qty 15

0

4

Cub Cadet 703-10602

HOLD DOWN BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10602-4021

HOLD DOWN BRACKET - CUB YELLOW 2 (4021)

$55.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10631

FRONT AXLE SUPPORT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10631-0637

FRONT AXLE SUPPORT - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-10631-4021

FRONT AXLE SUPPORT - CUB YELLOW 2 (4021)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0521

SCREW 3/8-16 x 3 GR8

$5.49

$

In Stock, Qty 6

0

8

Cub Cadet 710-06041

SCREW 5/16-18 X.75 GR5

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-06045

SCREW 3/8-16 x 2.25 GR5

$5.99

$

In Stock, only 3 left!

0

10

Cub Cadet 710-06093

SCREW 3/8-16 x 2.00 GR5

$5.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-06508

SCREW 5/16-18X1.25

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 711-06081A

STEERING GEAR PIVOT SHAFT

$23.99

$

In Stock, only 2 left!

0

13

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$12.99

$

In Stock, only 2 left!

0

14

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

17

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet 717-04952

STEERING GEAR

$56.99

$

In Stock, only 1 left!

0

19

Cub Cadet 717-05133

STEERING SPUR GEAR 13T

$54.99

$

In Stock, Qty 12

0

20

Cub Cadet 721-04656

SEAL

$6.99

$

In Stock, Qty 6

0

21

Cub Cadet 731-09291A

AXLE COVER (RH)

$21.99

$

In Stock, only 2 left!

0

22

Cub Cadet 731-09320A

AXLE COVER (LH)

$21.99

$

In Stock, only 2 left!

0

23

Cub Cadet 936-0344

FLAT WASHER
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 738-04549A

TORX SHOULDER SCREW 1/4-20

$7.99

$

In Stock, Qty 12

0

26

Cub Cadet 738-05192B

SCREW 1/2-13X8.5 GR5 FLG

$33.99

$

In Stock, only 2 left!

0

27

Cub Cadet 741-05055

ROLLER BEARING 47MM x 25MM x 15MM

$20.99

$

In Stock, only 3 left!

0

28

Cub Cadet 750-05351

CASTER AXLE SPACER
(Superseded to 750-05351A)

$22.99

$

In Stock, only 2 left!

0

29

Cub Cadet 750-05352

SPACER .76X1.23X1.25

$8.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 750-06085

SEAL RING

$5.99

$

In Stock, Qty 6

0
