PRO Z 100 EFI 148-S (53TWEFJF050) - Cub Cadet 48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2019) Front Axle Parts Diagram

48" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

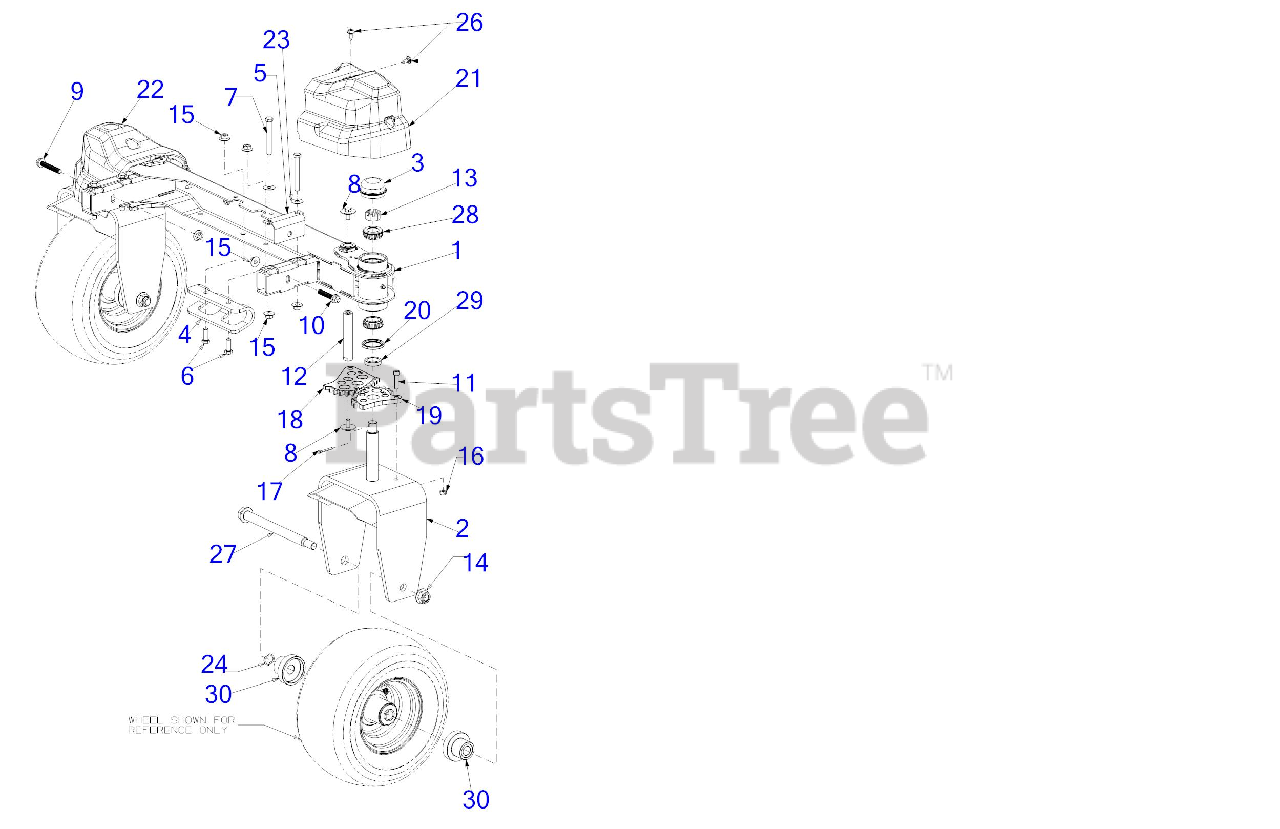

Front Axle Parts Diagram

  • Title

1

Cub Cadet 903-05275

FRONT AXLE
(Superseded to 903-05275A)

$527.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 737-04345

GREASE ZERT 1/4-28

Note: (Not Shown)

$4.49

$

In Stock, Qty 18

0

1

Cub Cadet 741-05061

BEARING RACE

Note: (Not Shown)

$7.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05331

CASTER BRACKET ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05331-4021

YELLOW CASTER BRACKET - CUB YELLOW 2 (4021)

$130.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10384

AXLE GREASE CAP

$13.99

$

In Stock, Qty 20+

0

4

Cub Cadet 703-10602

HOLD DOWN BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10602-4021

HOLD DOWN BRACKET - CUB YELLOW 2 (4021)

$48.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10631

FRONT AXLE SUPPORT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10631-0637

FRONT AXLE SUPPORT - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-10631-4021

FRONT AXLE SUPPORT - CUB YELLOW 2 (4021)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0521

SCREW 3/8-16 x 3 GR8

$4.99

$

In Stock, Qty 15

0

8

Cub Cadet 710-06041

SCREW 5/16-18 X.75 GR5

$3.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-06045

SCREW 3/8-16 x 2.25 GR5

$4.99

$

In Stock, Qty 5

0

10

Cub Cadet 710-06093

SCREW 3/8-16 x 2.00 GR5

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-06508

SCREW 5/16-18X1.25

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 711-06081A

STEERING GEAR PIVOT SHAFT

$20.99

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$10.99

$

In Stock, Qty 5

0

14

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.49

$

In Stock, Qty 10

0

15

Cub Cadet 712-04217

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

17

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 717-04952

STEERING GEAR

$49.99

$

In Stock, only 1 left!

0

19

Cub Cadet 717-05133

STEERING SPUR GEAR 13T

$47.99

$

In Stock, Qty 8

0

20

Cub Cadet 721-04656

SEAL

$5.99

$

In Stock, Qty 10

0

21

Cub Cadet 731-09291A

AXLE COVER (RH)

$18.99

$

In Stock, only 4 left!

0

22

Cub Cadet 731-09320A

AXLE COVER (LH)

$18.99

$

In Stock, Qty 6

0

23

Cub Cadet 936-0344

FLAT WASHER
(Superseded to 736-0344)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-05184A

WAVE WASHER 1.115:0.750:.200

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 738-04549A

TORX SHOULDER SCREW 1/4-20

$6.99

$

In Stock, only 4 left!

0

27

Cub Cadet 738-05168

SHOULDER BOLT

$23.99

$

In Stock, only 4 left!

0

28

Cub Cadet 741-05055

ROLLER BEARING 47MM x 25MM x 15MM

$17.99

$

In Stock, only 3 left!

0

29

Cub Cadet 750-06085

SEAL RING

$4.99

$

In Stock, Qty 10

0

30

Cub Cadet 750-06645

HUB: 0.76 X 1.56 X 1.25

$14.99

$

Usually ships in 3-6 days

0
