PRO Z 100 EFI 154-L (53RWEHRA050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2017) Deck Lift Parts Diagram

54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

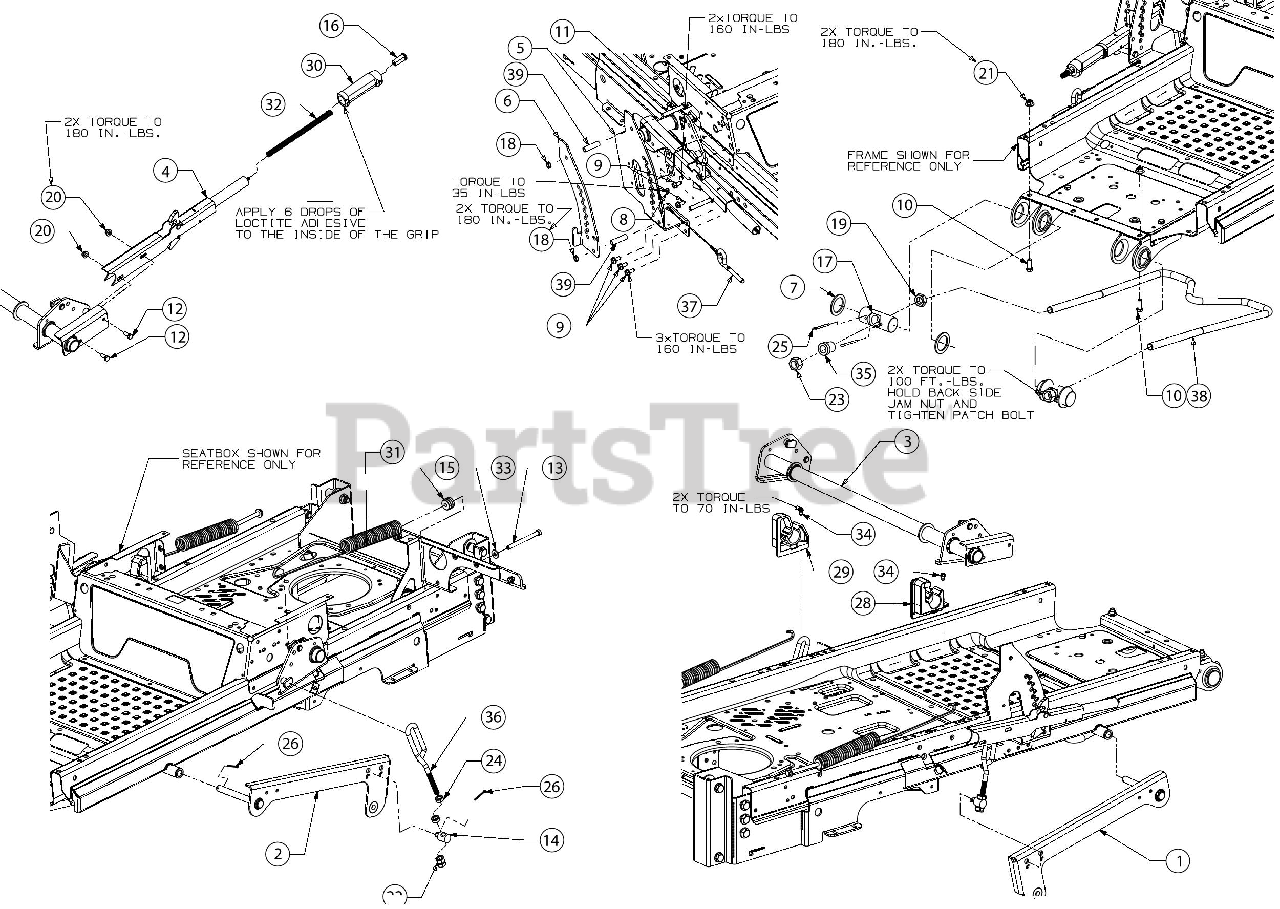

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 603-05086A

LIFT ARM (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05086A-0637

Lift Assembly, RH - POWDER BLACK (0637)

$59.99

$

In Stock, only 3 left!

0

Cub Cadet 603-05086A-0691

LIFT ARM-RH - BLACK JACK (0691)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05086A-4021

LIFT ARM-RH - CUB YELLOW 2 (4021)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05086A-4033

LIFT ARM-RH - FLINT MICA (4033)

$59.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05087A

LIFT ARM (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05087A-0637

LIFT ARM-LH - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05087A-0691

LIFT ARM-LH - BLACK JACK (0691)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05087A-4021

LIFT ARM-LH - CUB YELLOW 2 (4021)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05087A-4033

LIFT ARM-LH - FLINT MICA (4033)

$59.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 903-05088A

DECK LIFT SHAFT ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 903-05088A-0637

SHAFT ASM-DECK LIF - POWDER BLACK (0637)

$117.99

$

Usually ships in 3-6 days

0

Cub Cadet 903-05088A-4021

SHAFT ASM-DECK LIF - CUB YELLOW 2 (4021)

$126.99

$

Usually ships in 3-6 days

0

$109.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 903-05143A

LATCH HANDLE ASSEMBLY

$179.99

$

In Stock, only 4 left!

0

5

Cub Cadet 603-05208A

LIFT BRACKET ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05208A-0637

BRACKET ASM-LIFT - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05208A-4021

BRACKET ASM-LIFT - CUB YELLOW 2 (4021)

$94.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05208A-0691

BRACKET ASM-LIFT - BLACK JACK (0691)

$94.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05208A-4033

BRACKET ASM-LIFT - FLINT MICA (4033)

$81.99

$

Usually ships in 3-6 days

0

$81.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09936

OUTER INDEX BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09936-4021

BRKT-OUTER INDEX - CUB YELLOW 2 (4021)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09936-0637

BRACKET-OUTER INDE - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09936-0691

BRACKET-OUTER INDE - BLACK JACK (0691)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09936-4033

BRKT-OUTER INDEX - FLINT MICA (4033)

$38.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10475

FLAT SPACER

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 910-0224

HEX SCREW AB-TAP #10-16 x 0.500

$3.99

$

In Stock, Qty 14

0

9

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$7.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3279

SCREW 3/8-16X4.25 GR5

$8.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 711-06284

LIFT LINK FERRULE

$11.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 711-0635

SPRING INSERT

$47.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-0642A

LIFT HANDLE BUTTON

$8.49

$

In Stock, Qty 15

0

17

Cub Cadet 711-06591

PIVOT LIFT PIN

$44.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-0266A

JAM LOCK NUT

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0301

HEX JAM NUT 3/4-10

$8.49

$

In Stock, only 1 left!

0

20

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-05046

HEX NUT NYLOK 1/2-13

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-05154

NYLOCK NUT 3/4-10

$8.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 912-3048

HEX NUT
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 714-0211

COTTER PIN

$4.49

$

In Stock, Qty 14

0

26

Cub Cadet 914-0470

COTTER PIN
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 15

0

28

Cub Cadet 731-09683

DECK LIFT BRACKET

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-09707

DECK LIFT BRACKET (LH)

$13.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-3158

LIFT HANDLE GRIP

$18.99

$

In Stock, only 2 left!

0

31

Cub Cadet 732-05096

EXTENSION SPRING 1.485 OD x 17.58

$36.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 732-3097

COMPRESSION SPRING

$15.99

$

In Stock, only 4 left!

0

33

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 738-04278

SHOULDER SCREW 1/4-20X.50 19"PSH

$7.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-05195

FLANGE BEARING

$13.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 747-06259A

LIFT ADJUSTMENT LINK

$20.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 747-06355

LOCK ROD

$34.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 747-06644A

DECK HANGER ROD

$96.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 750-06031

SPACER

$5.99

$

Usually ships in 3-6 days

0
